40201 Belt Cleaning


Clean the belt surface (bring the belt surface into contact with the cloth surface of the belt cleaner unit)

Note / 補足
  • This menu is a special belt cleaning that can be executed only from the service support mode (part of the operation is different from the belt cleaning that is executed in the user mode).
    • User mode: Clean the belt surface by bringing the belt surface and the cross surface of the belt cleaner into contact and rotating each other.
    • Service support mode: The belt surface and the cloth surface of the belt cleaner are brought into contact, only the belt is rotated, and the belt surface is cleaned.
  • Since the belt cleaner does not rotate during cleaning, the life counter of the belt cleaner unit does not progress.
  1. Start service support mode.
  2. Select [04 Maintenance].

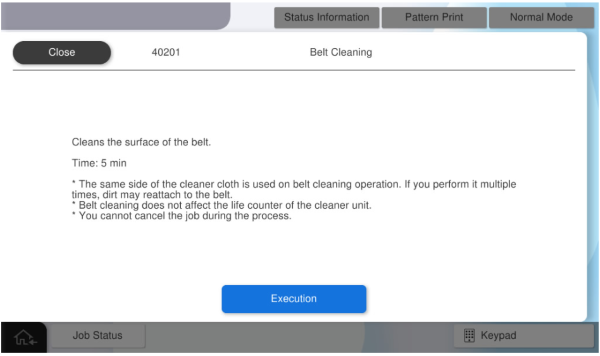

  3. Select [40201 Belt Cleaning].
  4. Press [Execution].
