Main Unit Paper Feed Cover Sensor

  1. Pull the lever to open the main unit paper feed cover (A).
  2. Remove the 2 screws.
  3. Slide the connector cover (A) in the direction of the arrow to release the hook and remove it.
    • : 3x8D
    Assembly / 組み立て

    Insert the hook of the connector cover (A) into the hole in the main unit, and attach it while holding the paper feed guide (B).

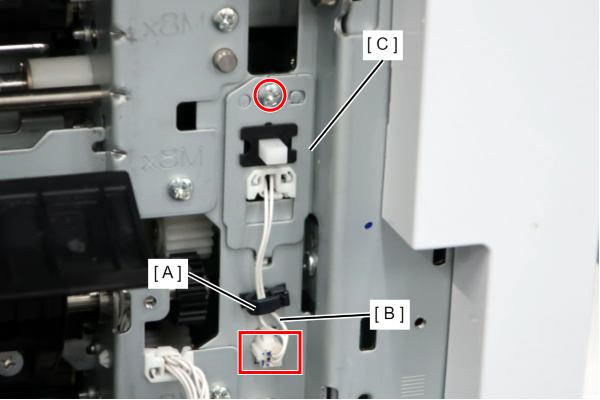

  4. Release the cable (B) from the clamp (A) and remove the cable (B) from the connector.
  5. Remove 1 screw and remove the Main Unit Paper Feed Cover Sensor Assy (C).

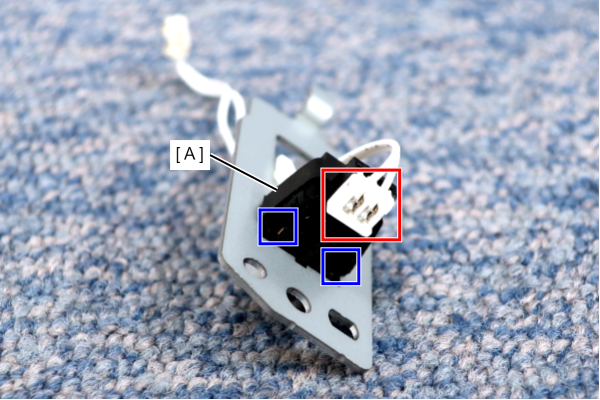

  6. Disconnect the cable from the connector.
  7. Unlock the 2 hooks and remove the Main Unit Paper Feed Cover Sensor (A).

    • : 3x8D/P
