Post-Head Paper Guide Unit - After replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No. Menu Name
60112 Post-Head Sensor Correction
  1. Turn the power ON.

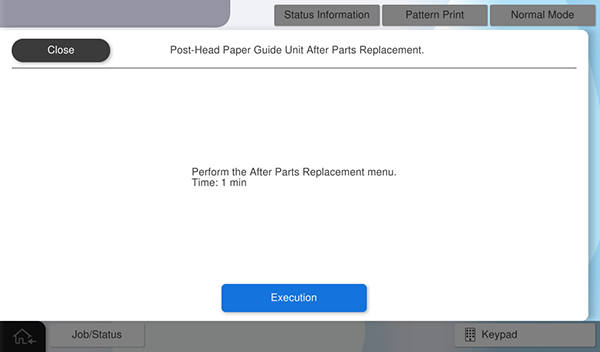

  2. Press [Execution].

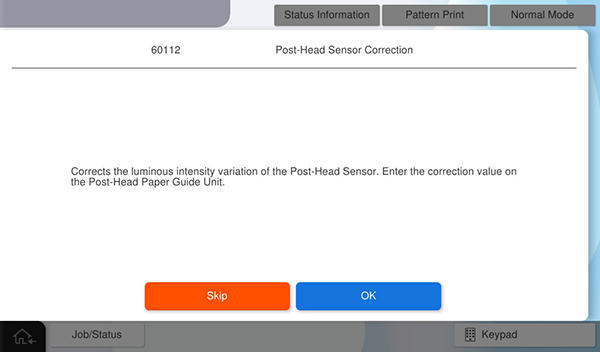

  3. Press [OK].

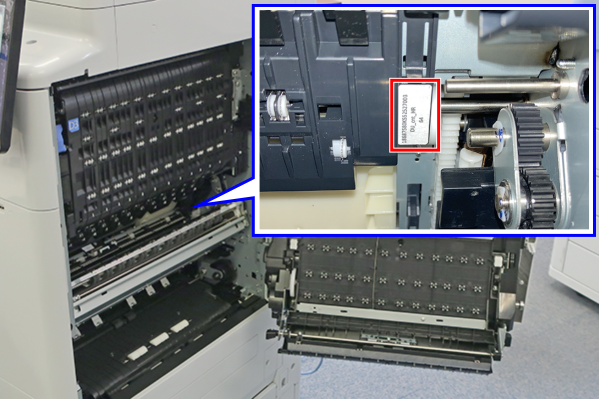

  4. Open the Right Door Unit and Belt Unit, and check the correction value label.

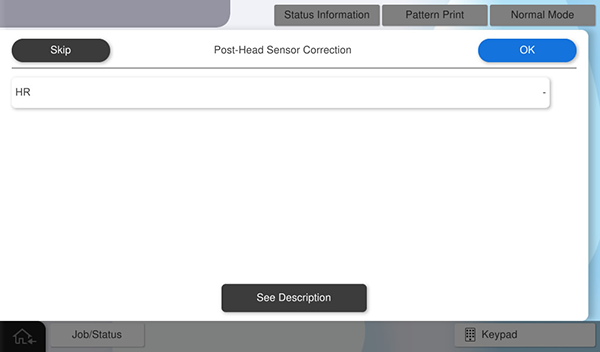

  5. Enter the correction value HR and press [OK].

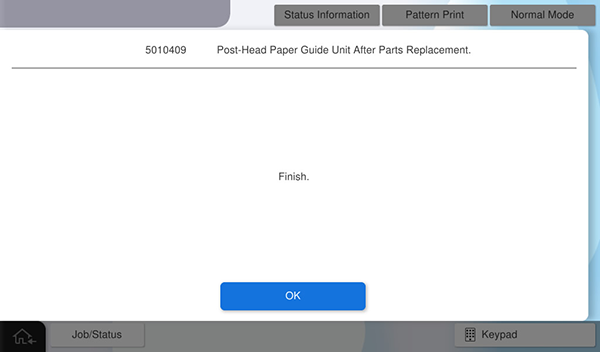

  6. Press [OK] to complete the menu.
