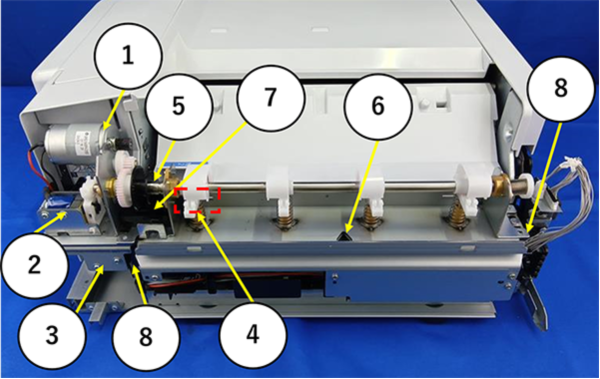

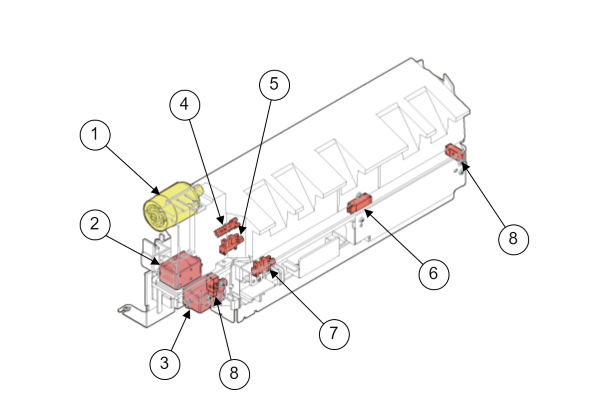

Inner Punch Unit
Motor / Solenoid
| No. | Name | Function | Type |
|---|---|---|---|
| 1 | IN PNC Punch Motor | Used for punch operation drive. | - |
| 2 | IN PNC Switch Punch Hole Solenoid | Used for switching the punch hole position. | |
| 3 | IN PNC Punch Waste Tray Solenoid | - |
Sensor
| No. | Name | Function | Type |
|---|---|---|---|
| 4 | IN PNC HP Sensor | Used for detecting the position of a punch operation (punch cam operation). | - |
| 5 | IN PNC Pulse Sensor | ||
| 6 | IN PNC Punch Paper Transport Sensor | Used for detecting paper. | |
| 7 | IN PNC Punch Waste Tray Sensor | Used for detecting whether the punch waste tray is attached or not. | |
| 8 | IN PNC Punch Waste Tray Full Detection Sensor | - |
