I/F Board

  1. Remove the 4 screws and remove the right cover sub (A).
    • : 3x10DW
  2. Remove 1 screw and slide the rear cover (A) in the direction of the arrow to remove it.
    • : 3x10DW
    Assembly / 組み立て

    Align the 5 hooks on the rear cover with the 5 holes on the main unit and attach it.
  3. Remove one screw and remove the shield plate (A) upwards.
    • : 3x8D
    Assembly / 組み立て

    Hook the 2 hooks (A) of the shield plate to the 2 holes (B) of the circuit board box and attach the shield plate (C).
  4. Disconnect the cable (A) from the connector.
  5. Remove 3 screws.
    • : 3x8D
    Caution / 注意

    When tightening screws, make sure that the screw holes are aligned before tightening.

    If the screw holes do not match, the threads may be stripped.
  6. Lift the handle to release the hook.
  7. Open the board box upper case (A).

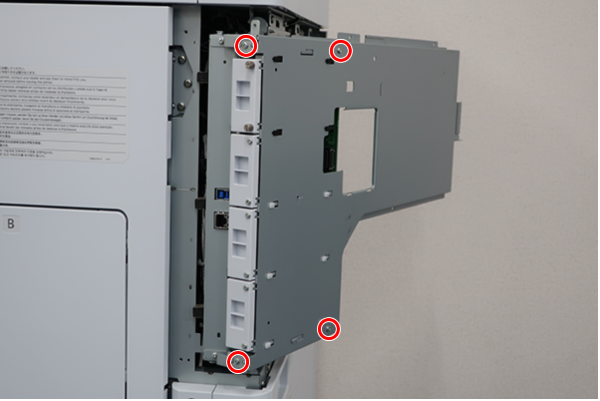

  8. Remove 4 screws.

    • : 3x8D/P

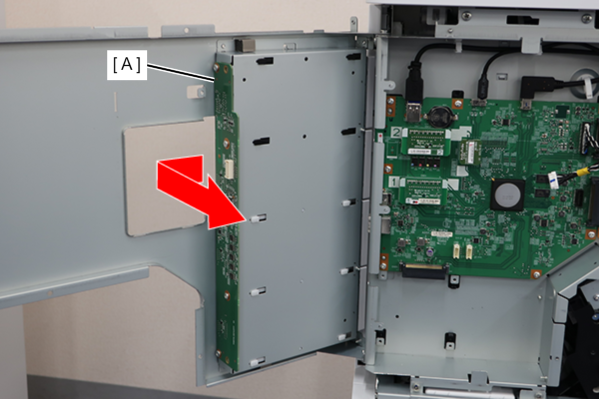

  9. Remove the I/F Slot Holder Assy (A) in the direction of the arrow.

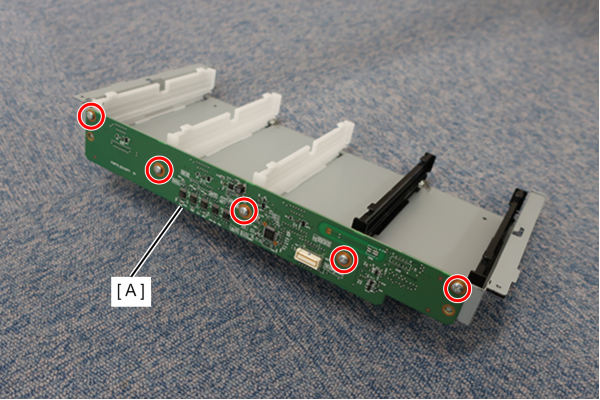

  10. Remove 5 screws and remove the I/F Board (A).

    • : 3x8D/P
