20101 Check Pattern
| Program No. | Pattern Name | Specifications | Pattern Image (The arrow indicates the paper feed direction) |
Target image quality defect |
|---|---|---|---|---|
| 20101 | Check Pattern Print |
|
- | - |
- Start the service support mode.
- Select [02 Check Pattern Print / Paper Feed Confirmation].
- Select [Check Pattern Print] tab.
- Select [Check Pattern Print] .

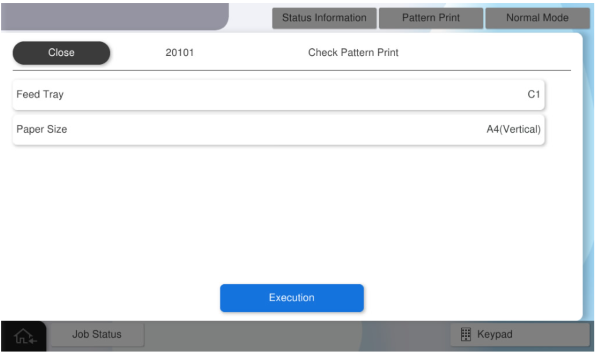

Press each setting item button to make the print settings.
The selectable items are as follows.
Program No. Pattern Name Setting Items Choice 20101 Check Pattern Print Feed Tray C1, C2, C3, C4, Paper Tray, High Capacity Unit Available Paper Sizes A4 (Vertical), Letter (Vertical)
Caution / 注意Make sure the paper orientation is as specified (LEF/Vertical).
If the orientation is different from the specifications (SEF/Horizontal), the paper will be ejected without being processed correctly and the operation cannot be checked.
- Press [Execution].
