Drawer Connector (Inner finisher side)

  1. Refer to the following and remove the inner finisher from the printer.
    Inner Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Inner Finisher Unit from the Main Unit, the power of the Main Unit must be turned off.

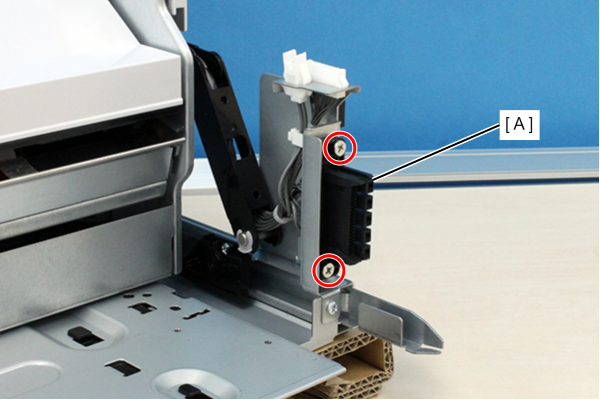

  2. Remove 2 screws and remove the Drawer Connector (A).

    • : 3x12D/TBD

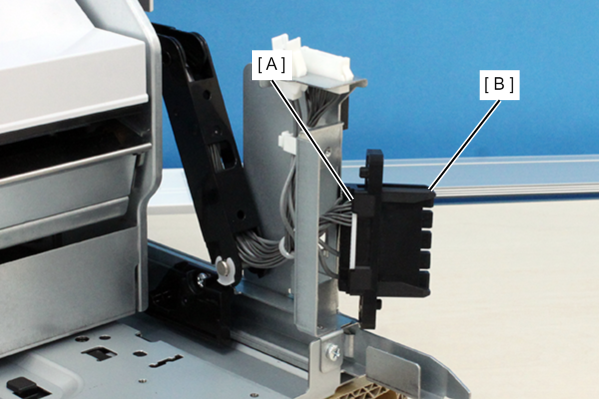

  3. Remove the cable from the connector (A) and remove the Drawer Connector (B).
