Inlet Assy

  1. Remove the 2 screws and remove the Left Cover Upper (A).
    • : 3x10DW
  2. Remove the two screws and slide the Left Cover Sub Upper (A) in the direction of the arrow to remove it.
    • : 3x10DW
  3. Pull out the C1 cassette (A). (about 100mm)
  4. Pull out the C2 cassette (A). (about 100mm)
  5. Remove 2 screws and remove the Left Cover Lower (A) in the direction of the arrow.

    • : 3x10DW
  6. Remove 1 screw and remove the Left Cover Sub Lower (A) in the direction of the arrow.

    • : 3x10DW
  7. Remove one screw and remove the Rear cover lower (A) in the direction of the arrow.

    • : 3x10DW

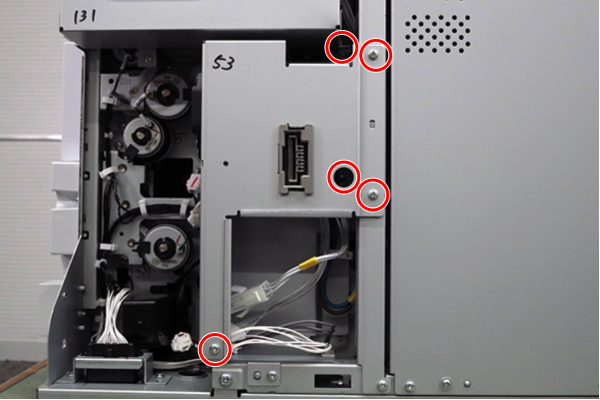

  8. Remove 5 screws.
    • : 3x8D
  9. Disconnect the 2 cables from the 2 connectors (A).

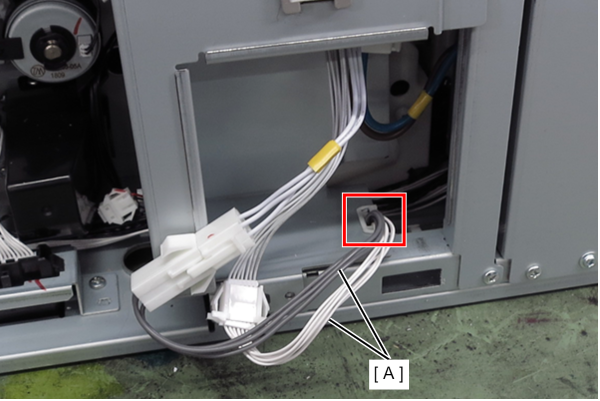

  10. Release the 2 cables (A) from the clamp.

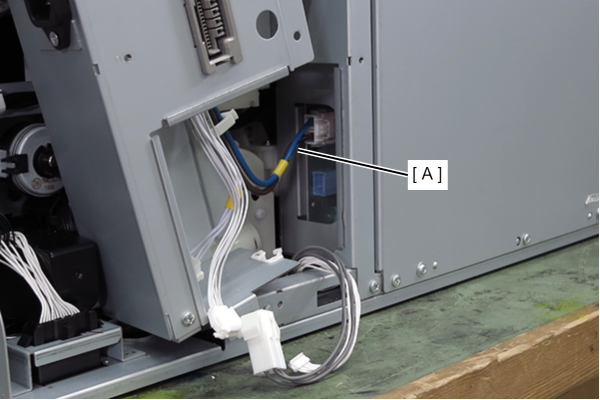

  11. Disconnect the cable (A) from the connector.
