301070202 Font Cover Sensor
| Program No. | Menu Name | Judgment method | Remarks |
|---|---|---|---|
| 301070202 | Font Cover Sensor | Open and close the front cover. | TRUE: Cover open detection |

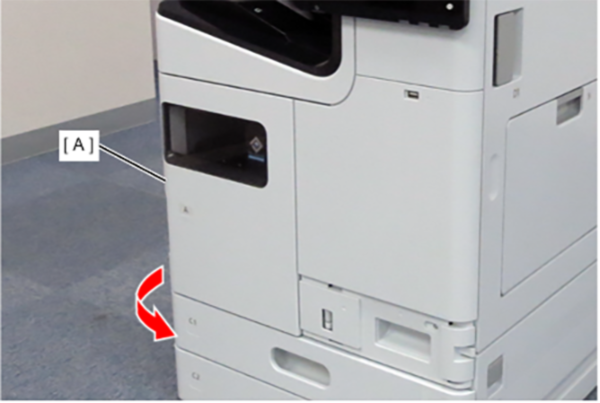

- Check the sensor detection status by opening/closing the Front cover (A).
