Before replacement work for SCN Board
- Start the service support mode.

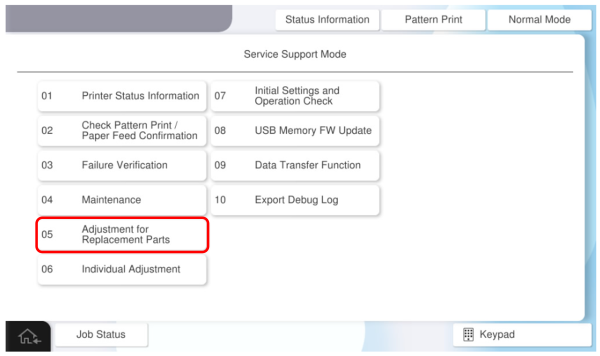

- Select [05 Adjustment for Replacement Parts].
- Select the [ADF/SCN].

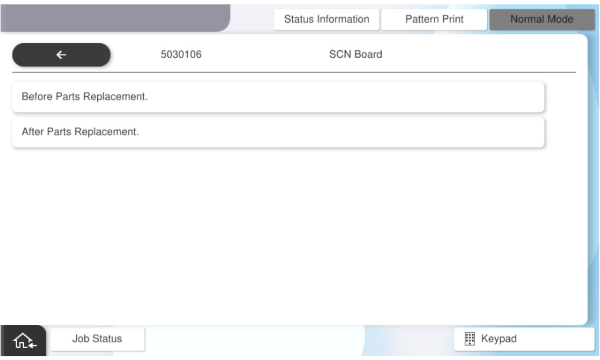

- Select [5030106 SCN Board].
- Select [Before Parts Replacement]

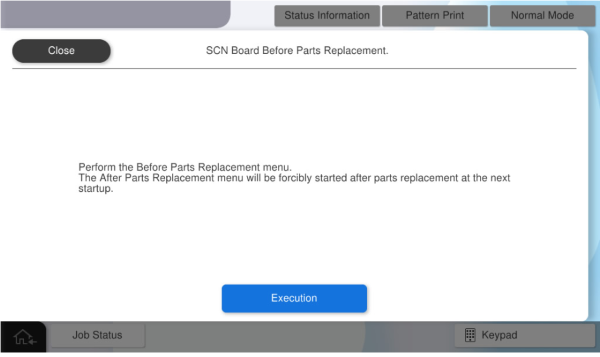

- Press [Execution].

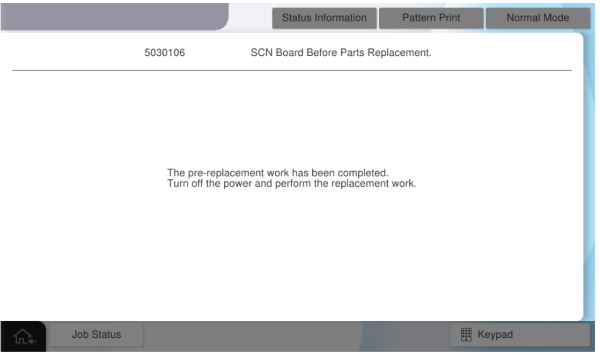

- Turn Off the main unit when the following screen is displayed.
After replacement menu will start automatically at next startup.
