High Capacity Cassette Front Cover Assy

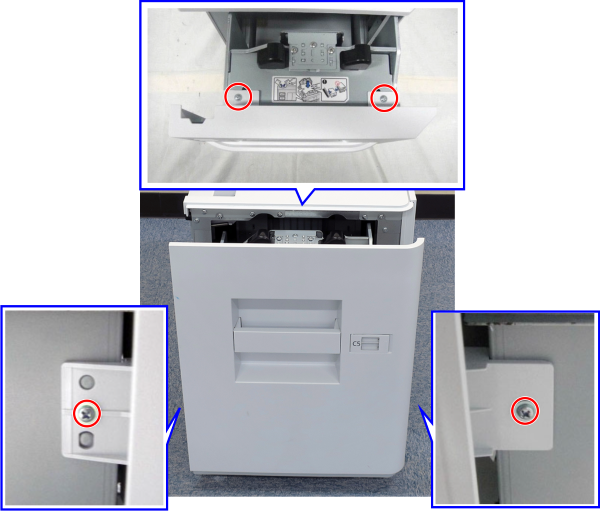

  1. Remove 4 screws.

    • : 4x10DC/P

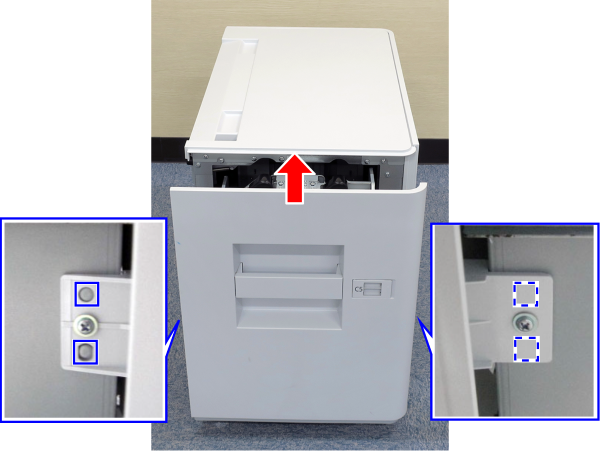

  2. Slide and remove the High Capacity Unit Front Cover Assy while releasing the dowels (x4).


    Assemble / 組み立て

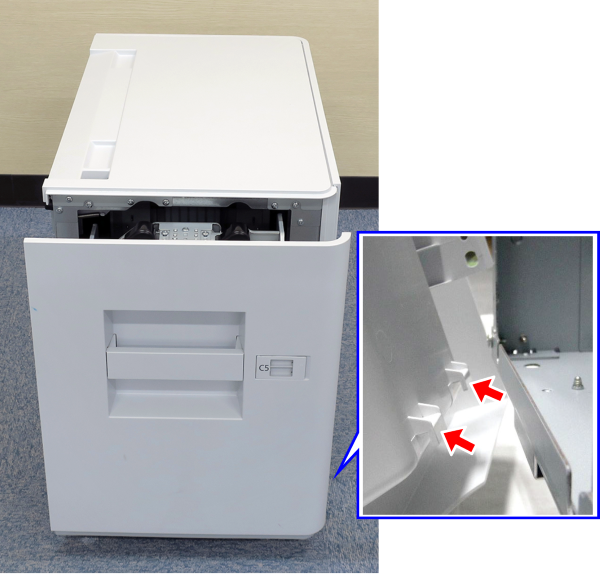

    • When installing the High Capacity Unit Front Cover Assy, attach the hooks (x2) and then fix the dowels in four places with the fitting screws.
    important / 重要

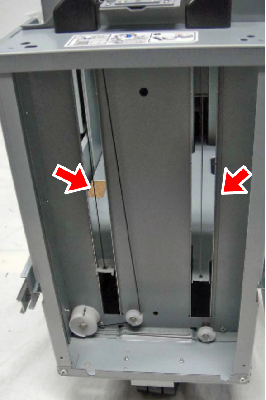

    • Do not remove the Lift Wire parts except when there is trouble.
    • The wires for lifting up are holding the front and back of the lift cassette horizontal so you need to perform horizontal adjustment if they are removed.
