FIN Paper Transport Sensor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Open the front cover (B).

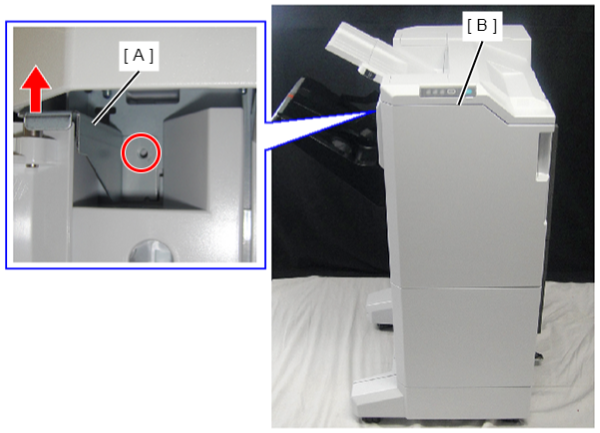

  3. Remove one screw and slide the cover hinge (A) upward to remove it.
    • : 4x8D/P

  4. Open the front cover (A).

  5. Remove the screw that secures the belt (B).
    • : 3x8DC/BK

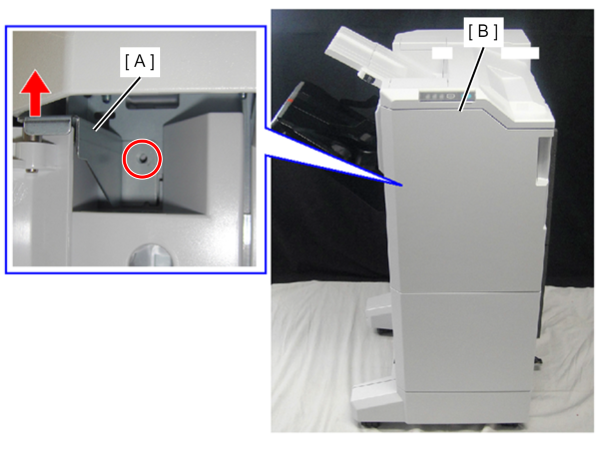

  6. Remove one screw and slide the cover hinge (A) upward to remove it.
  7. Remove the front cover (B).

    • : 4x8D/P

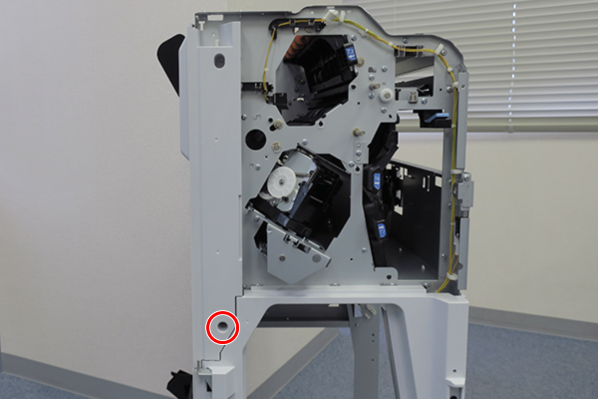

  8. Remove one screw and remove the front cover lower (B) and washer (A).
  9. Remove the washer (A).
  10. Remove the front cover lower (B).
    • : 4x10DC

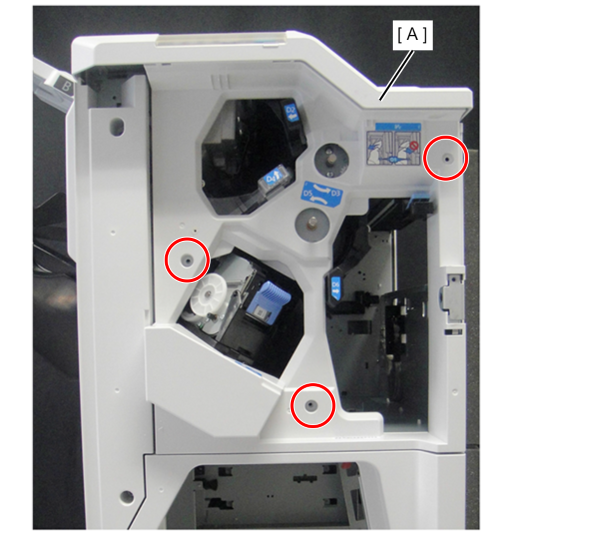

  11. Remove 3 screws and the Front Inner Cover, Upper (A).


    • : 4x10DC
  12. Remove the one screw.


    • : 4x10DC

  13. Slightly lift the front inner cover sub (A) to release the hook and remove it.

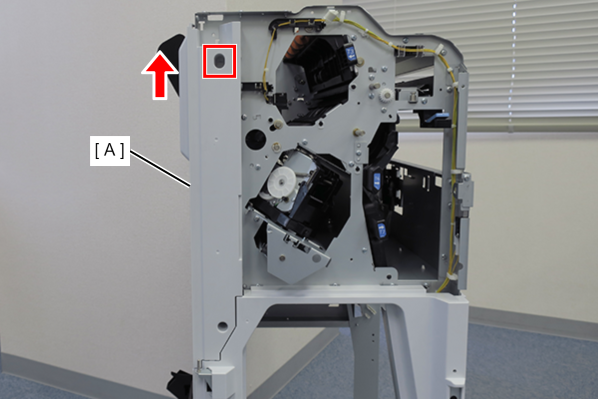

  14. Remove 1 screw of the Rear Cover, Sub (A).

  15. Put your finger on the recess of the rear cover, sub (A) and open it to the left to remove it.


    • : 4x10DC

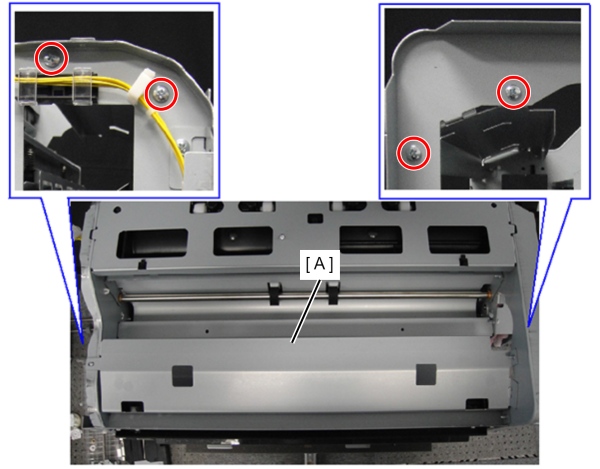

  16. Remove the 4 screws and remove the Frame Top Plate (A).

    • : 4x8D/P
  17. Remove the screw.

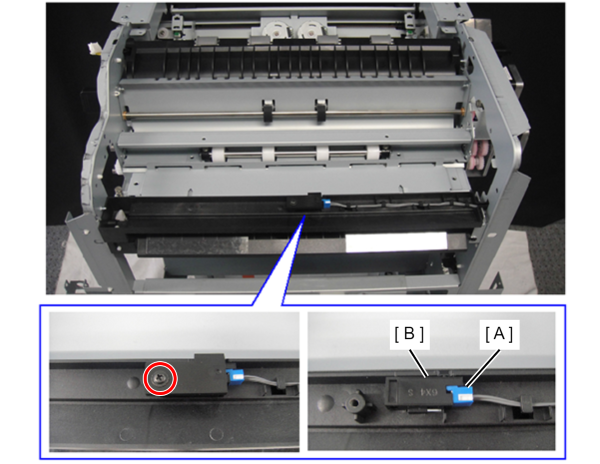

  18. Disconnect the cable (A) from the connector and remove the FIN Paper Transport Sensor (B).

    • : 3x8 DC/BK/P
