Ink Supply Unit - Before replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No. Menu Name
1030110 Counter reset (Ink Supply Unit)


  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [Main Unit] tab.
  4. Select [5010201 Ink Supply Unit].

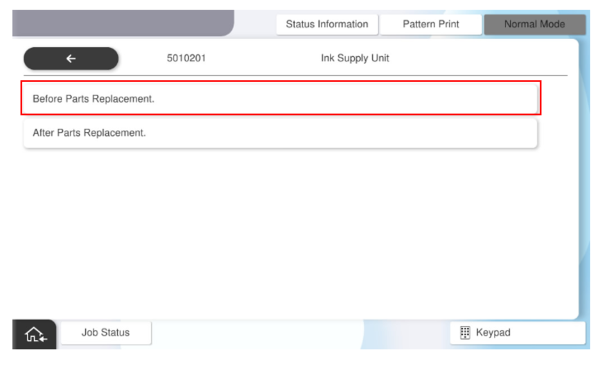

  5. Select [Before Parts Replacement].

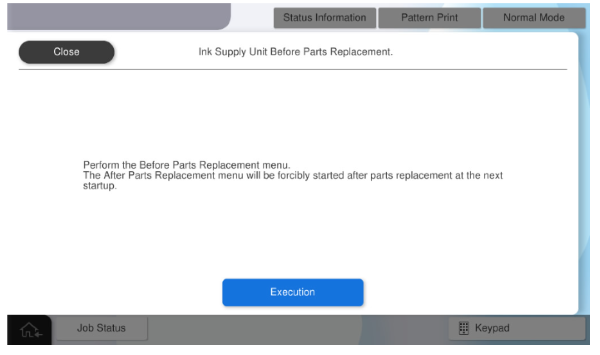

  6. Press [Execution].

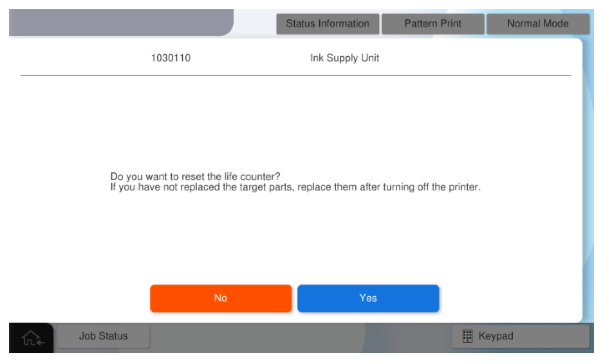

  7. Press [Yes] to reset the counter.

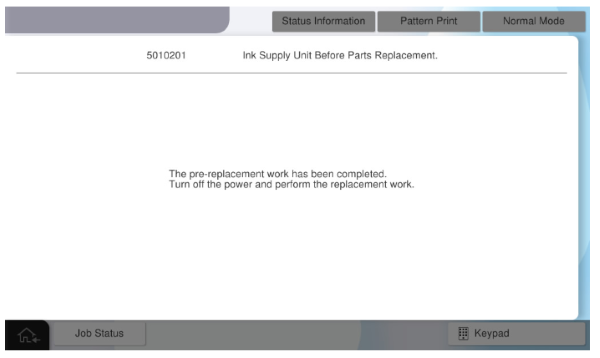

  8. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
