C4 Liftup Motor

  1. Open the additional cassette paper feed cover (A).
  2. Release the hook with a flathead screwdriver, etc., and remove the Additional Right Decorative Cover Rear (A).
  3. Remove the 3 screws and remove the Additional Rear Cover (A) in the direction of the arrow.

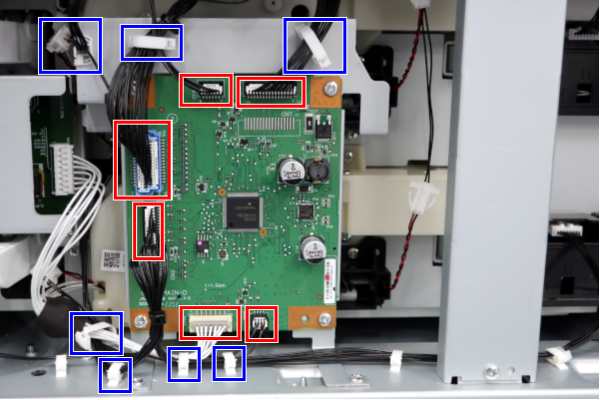

  4. Release the 7 clamps and release the cable.
  5. Remove all cables from the 6 connectors on the board.

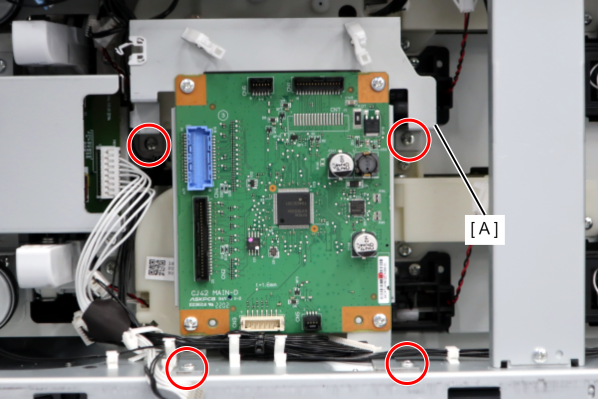

  6. Remove 4 screws and remove the Additional Main Board Holder (A).

    • : 3x8D/P

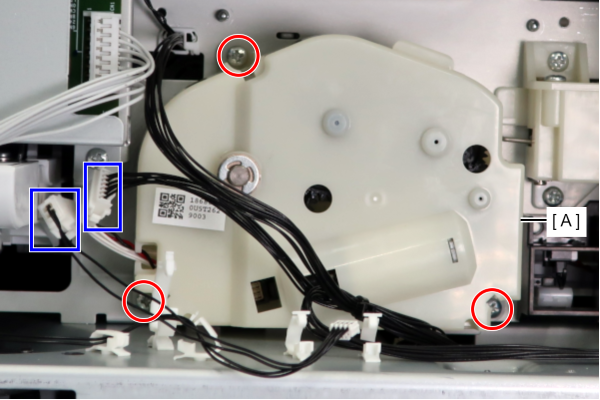

  7. Remove the cables from the 2 connectors.
  8. Remove 3 screws and remove the C4 Lift up Motor (A).

    • : 3x8D/P

    • : 3x10DW/P
