PF Lift Motor

  1. Refer to the following and remove the High Capacity Paper Feed Unit from the printer main unit.
    High Capacity Unit Installation Procedure
  2. Remove the 4 screw.


    • : 4x10DC/P
  3. Remove the Back Cover while pulling out the cable from the hole in the Back Cover.



    important / 重要

    • Do not remove the Lift Wire parts except when there is trouble.
    • The wires for lifting up are holding the front and back of the lift cassette horizontal so you need to perform horizontal adjustment if they are removed.

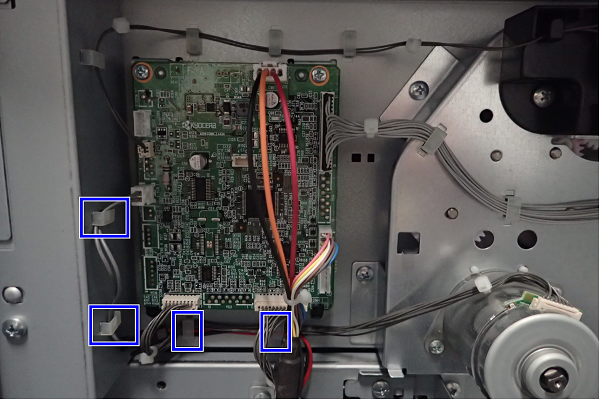

  4. Release 4 clamps.

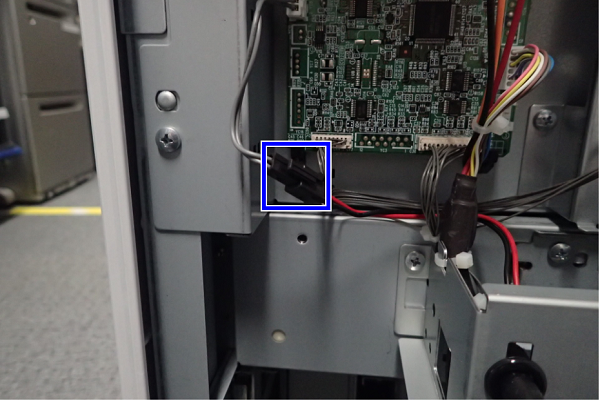

  5. Disconnect the cable from the relay connector.

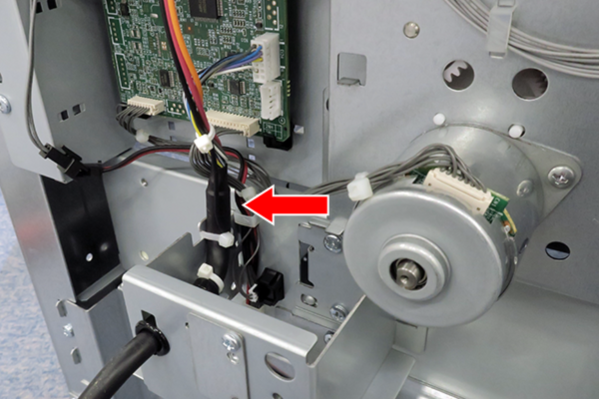

  6. Release the clamp.

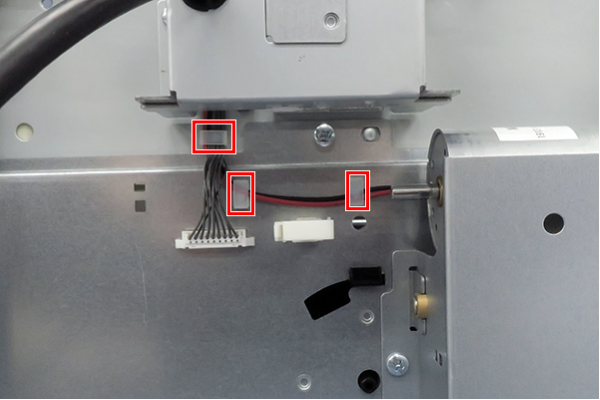

  7. Remove the 3 clamps.

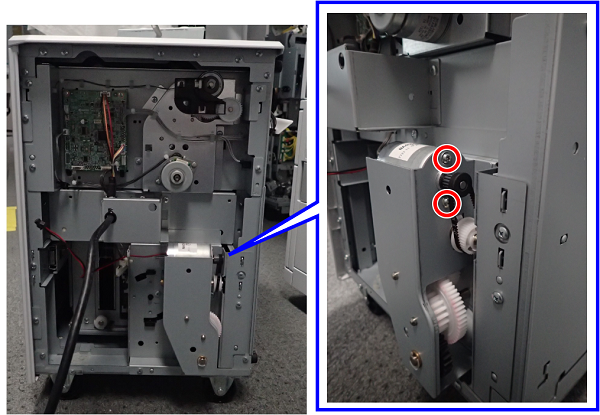

  8. Remove 2 screws and remove the PF Lift Motor.

    • : 3x6M/P
