Scanner

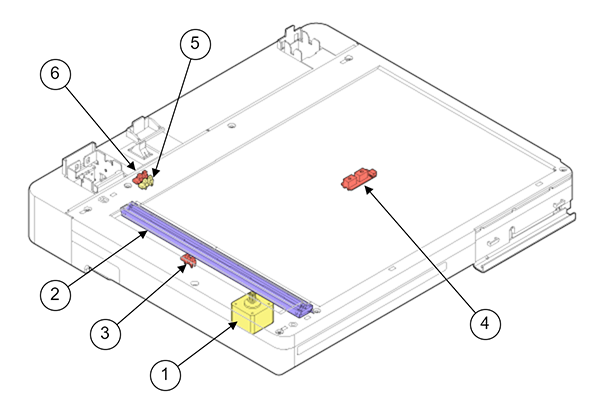

Motor / Sensor
| No. | Name | Function | Type |
|---|---|---|---|
| 1 | SCN Motor | Used for driving the scanner carriage. |
Stepping motor (24V) |
| 2 | SCN CIS Module | Used to read the document on the scanner glass and read the document on the ADF surface. | CIS image sensor |
| 3 | SCN Carriage HP Sensor | Detects whether the scanner carriage is at its home position or not. | Transmission type photo interrupter |
| 4 | SCN Document Length Sensor | Detects the length of the document placed on the scanner glass. | Reflective photo interrupter |
| 5 | ADF Close Sensor | Detects the open/closed state of the ADF unit. | Transmission type photo interrupter |
| 6 | ADF Half Closed Sensor | Detects the half open/closed state of the ADF unit. |
