60112 Post-Head Sensor Correction

Corrects the luminous intensity variation of the Post-Head Sensor.
Enter the correction value on the label attached to the Post-Head Paper Guide Unit.

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Main Unit・Additional Cassette] tab.
  4. Select [60112 Head Rear Sensor Correction].

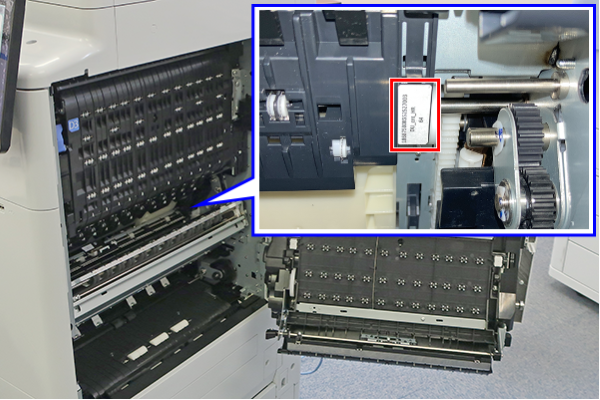

  5. Open the Right Door Unit and Belt Unit, and check the correction value label.

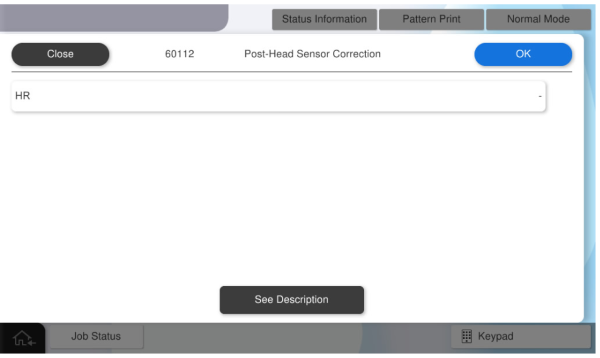

  6. Enter the correction value HR and press [OK].
