Right Door Unit - Before Replacement

Check Point / チェックポイント

When this menu is executed, the following menu is automatically executed.

Program No. Menu Name
1030105 Counter reset (Paper Tray Pickup Roller)
  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [Main Unit] tab.
  4. Select [5010406 Right Door Unit].

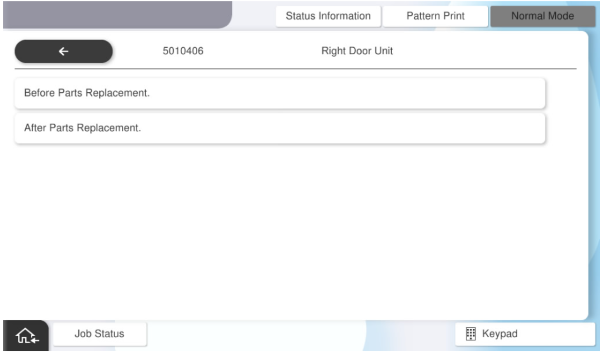

  5. Select [Before Parts Replacement].

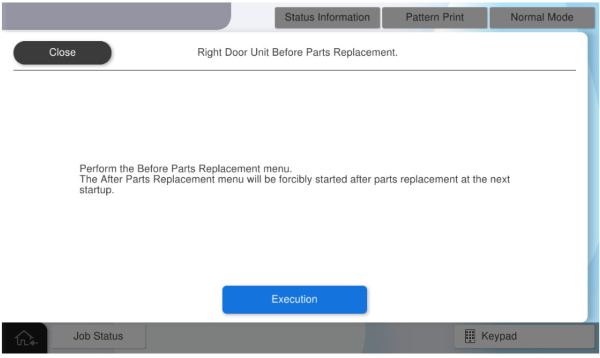

  6. Press [Execution].

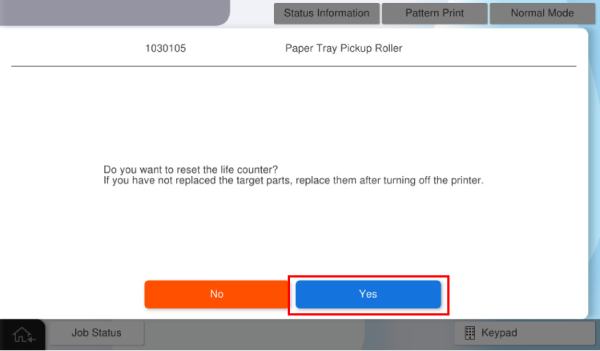

  7. Press [Yes] to reset the counter.

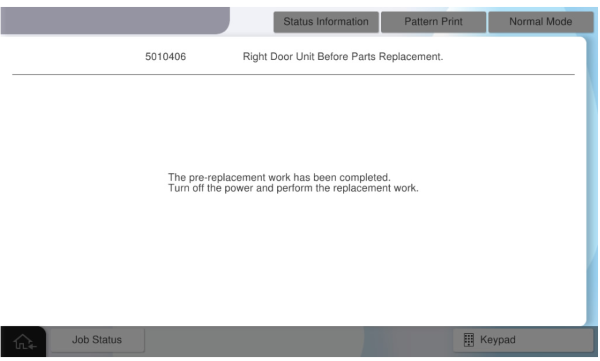

  8. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
