301030209 Post-Belt Sensor

Program No. Menu Name Judgment method Remarks
301030209 Post-Belt Sensor Shield the sensor from light with paper, etc.

TRUE: No Detection
FALSE: Detection
Default：TRUE
Check with the cover closed as it is affected by external light.
  1. Open the right door unit (A).

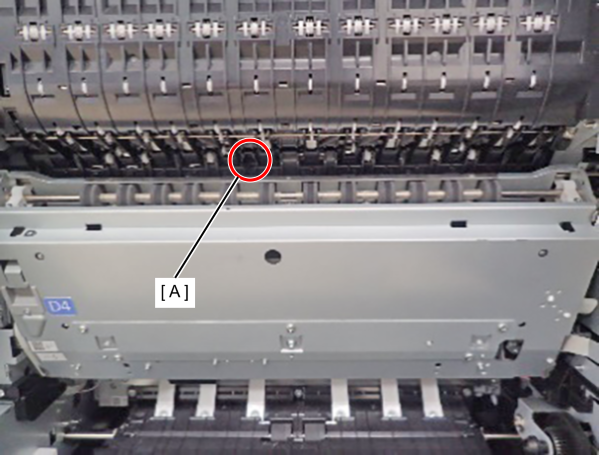

  2. Check the sensor detection status by holding a sheet of paper or your hand over the point (A) in the figure.
