Cassette paper guide position change procedure

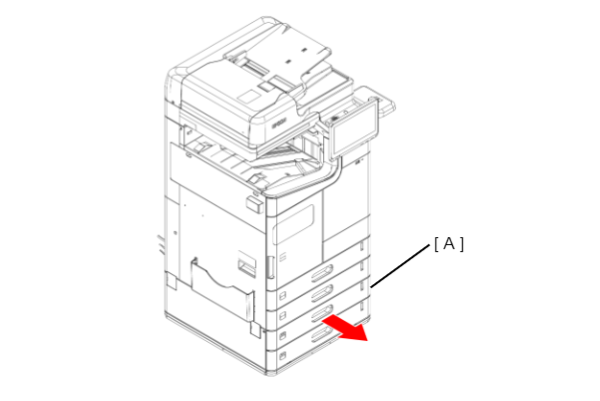

  1. Remove the cassette (A) to be adjusted.

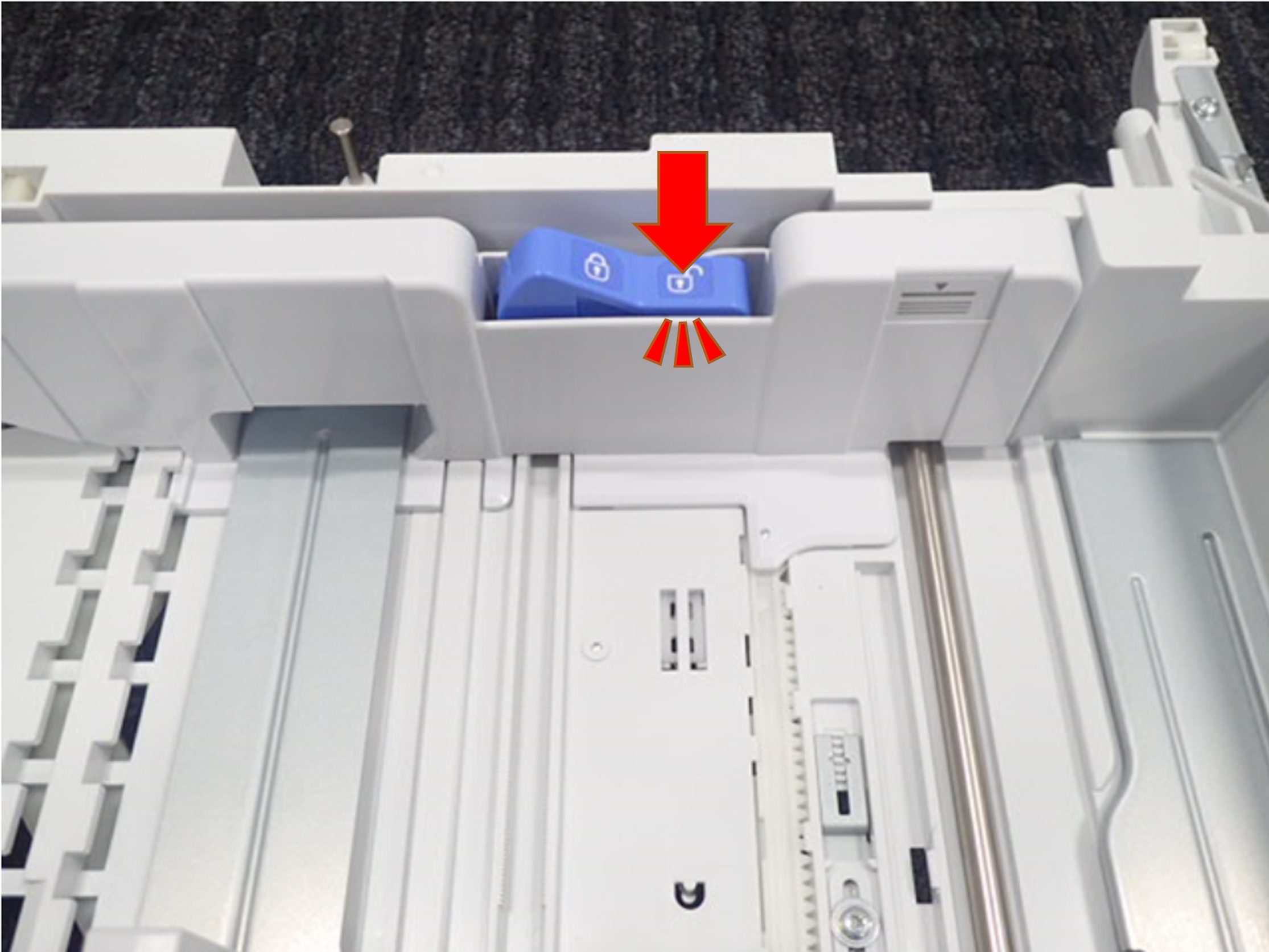

  2. Unlock the paper guide.

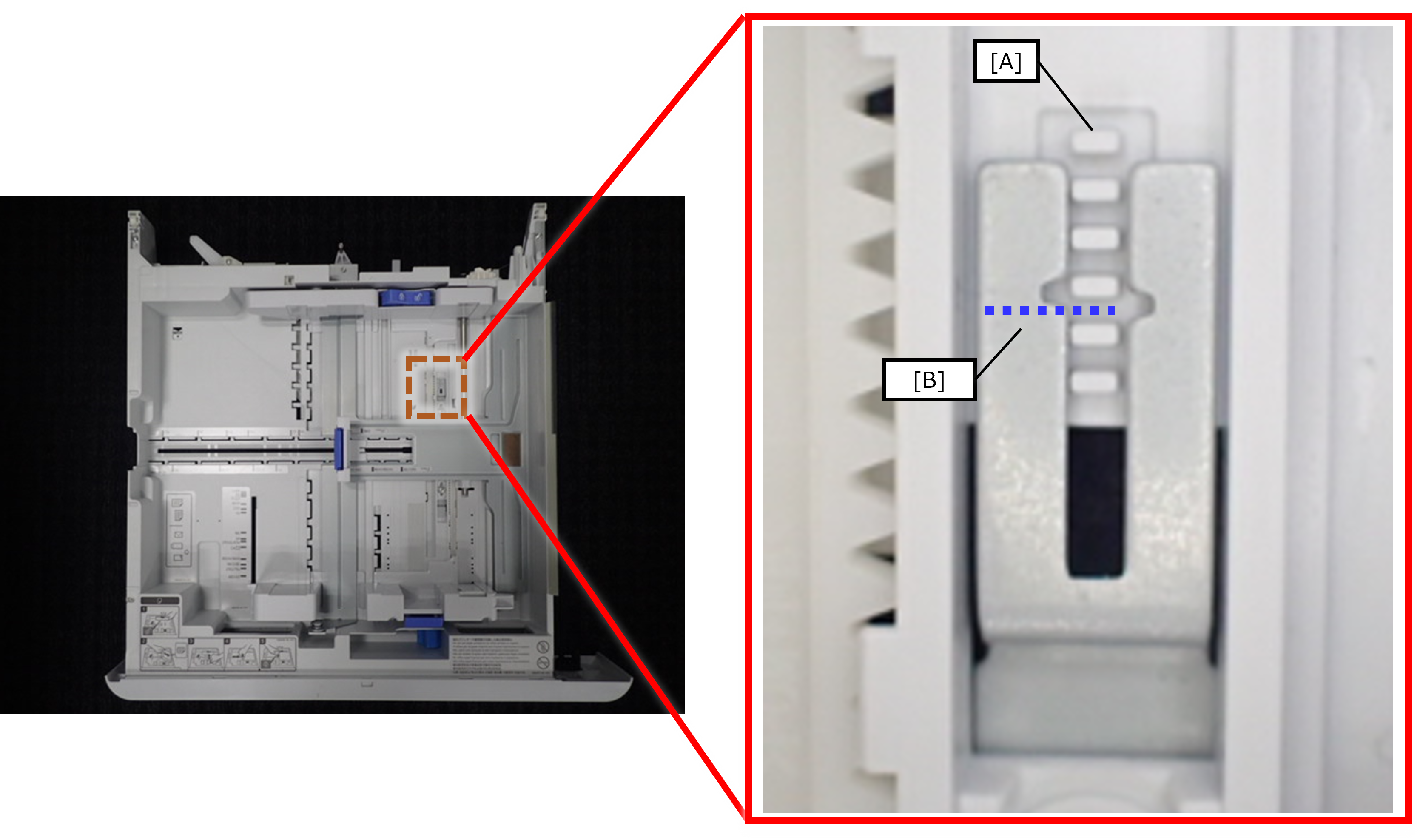

  3. Record the current position of the main notch edge (B) for the scale block (A).

    Check Point / チェックポイント
    • Paper guide position change is based on the calculated state of the margin difference.
      It is recommended to memorize in order to prevent rework when the changed by mistake position of the adjustment plate in the next steps.

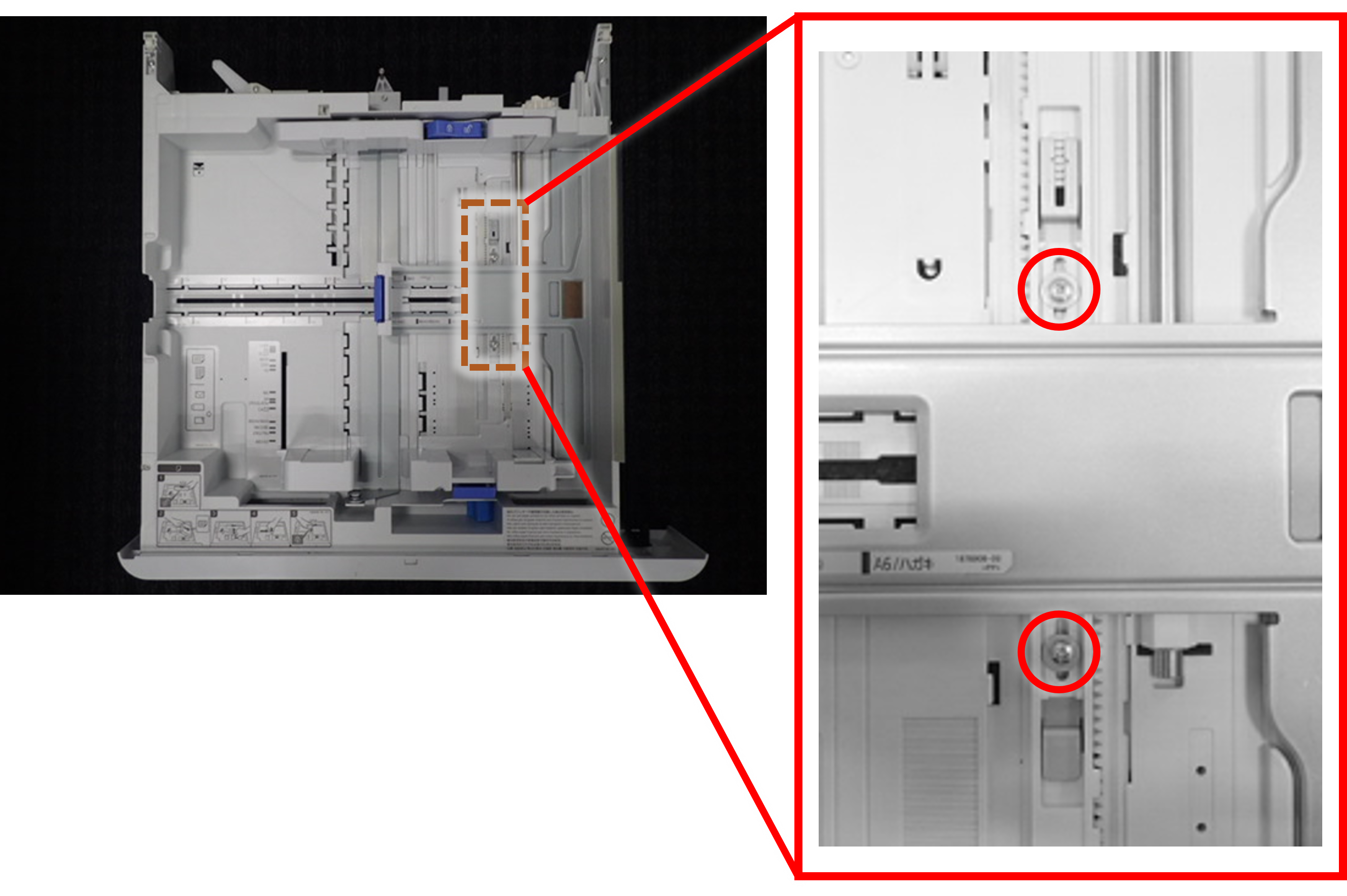

  4. Loosen the 2 fixing screws on the adjustment plate (about 1.5 turns).

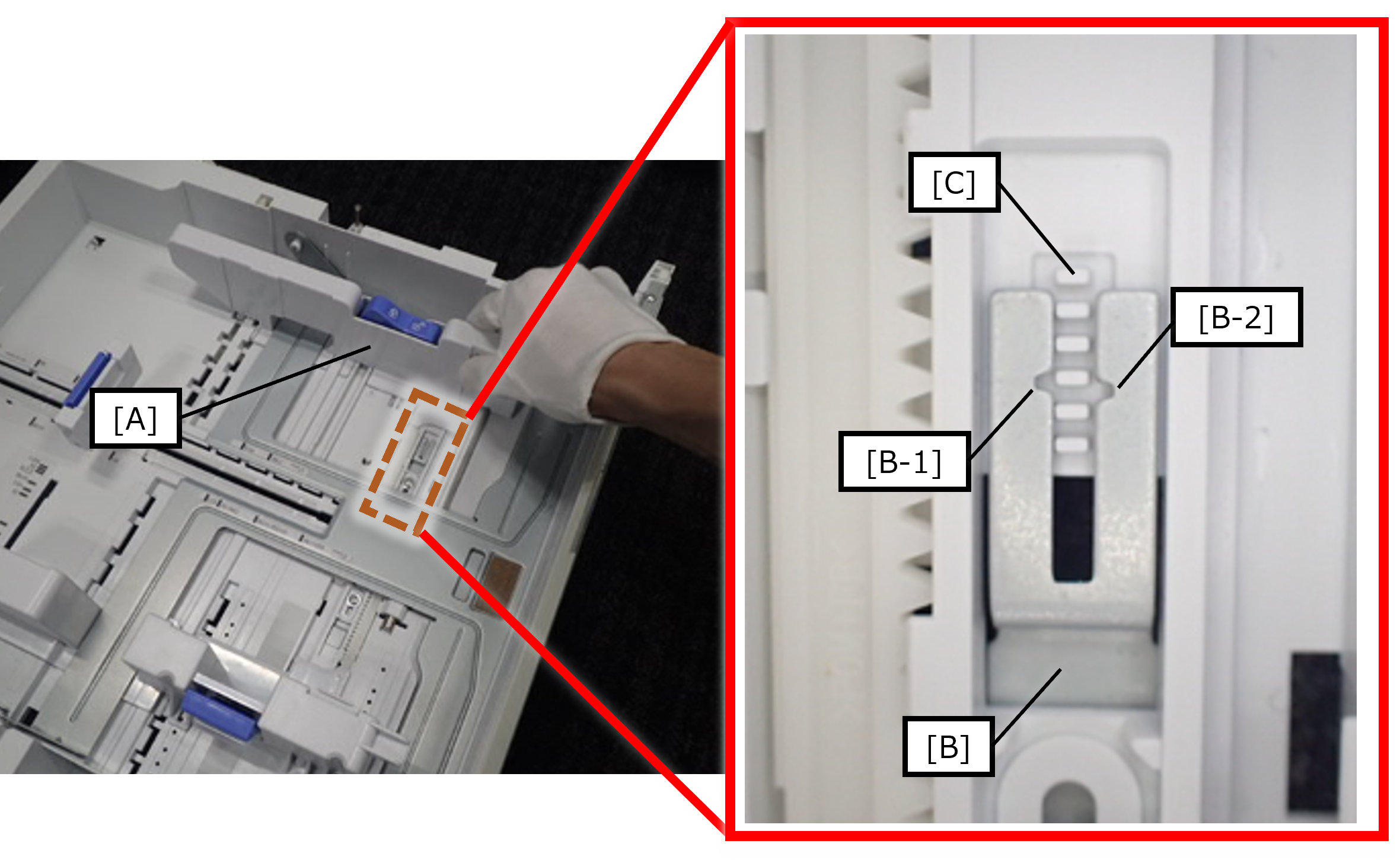

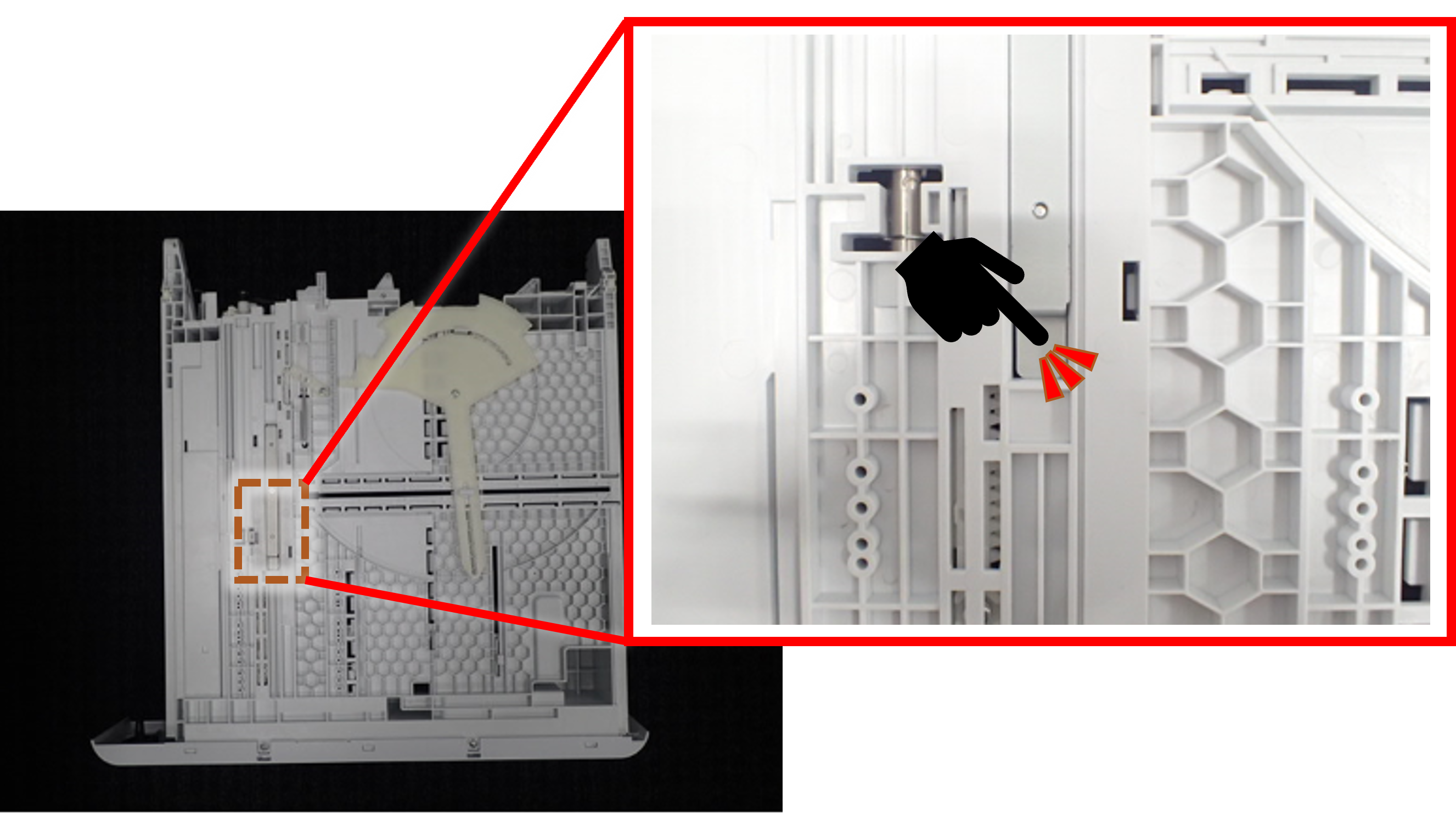

  5. Based on the margin difference calculated from the adjustment pattern, operate the paper guide (A) on the rear side to change the position of the adjustment plate (B).


    When changing, use the adjustment plate main notch (B-1), sub-notch (B-2) and scale block (C).

    Note / 補足

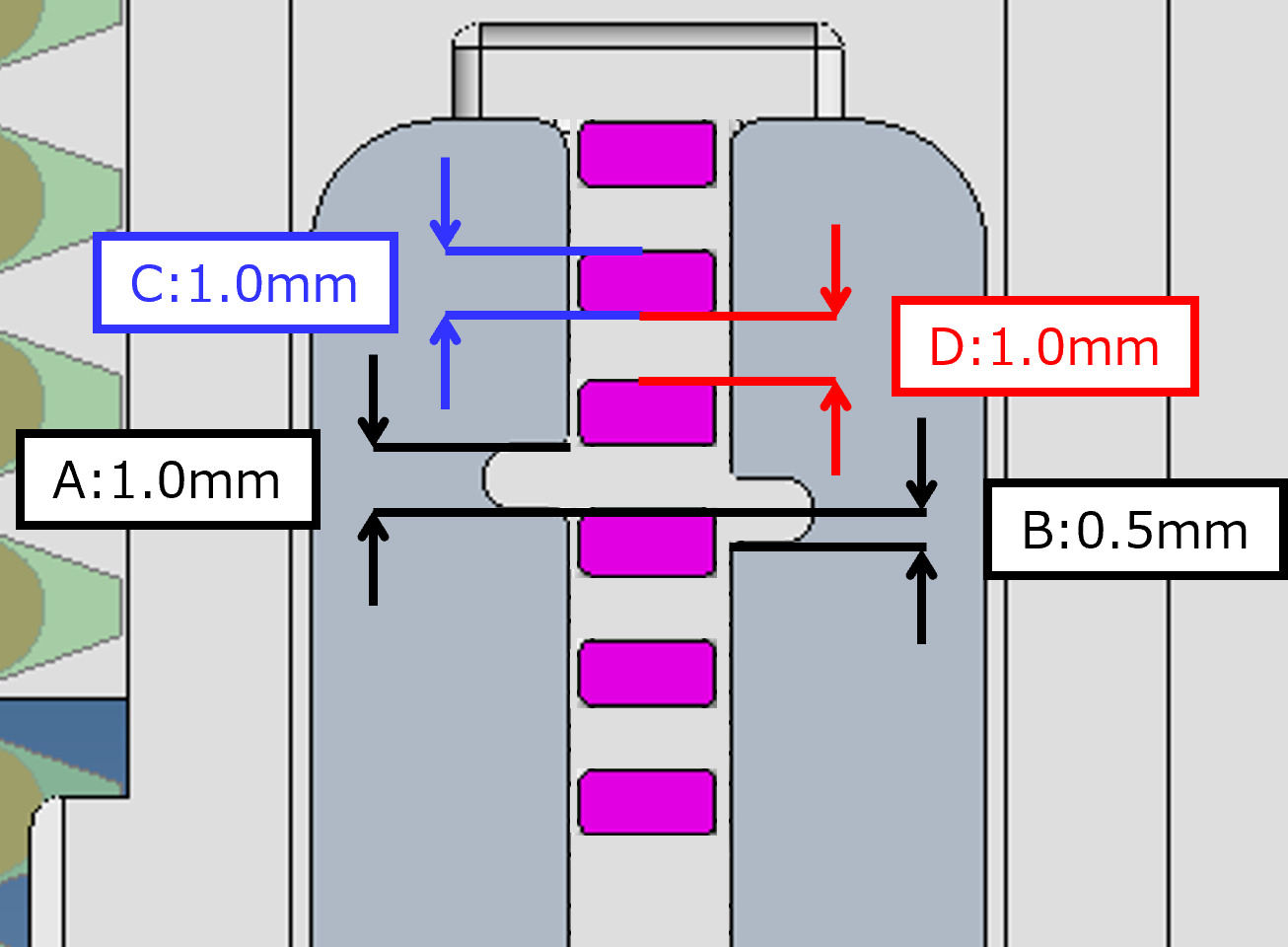

    • Notch width (A): 1.0 mm, deviation between main notch edge and sub notch edge (B): 0.5 mm, scale block width (C): 1.0 mm, distance between scale blocks (D): 1.0 mm




    • The direction to move the adjustment plate is as follows.
      • If you want to small the margin of #1: change to the rear side of the product.
      • If you want to small the margin of #2: Change to the front side of the product.

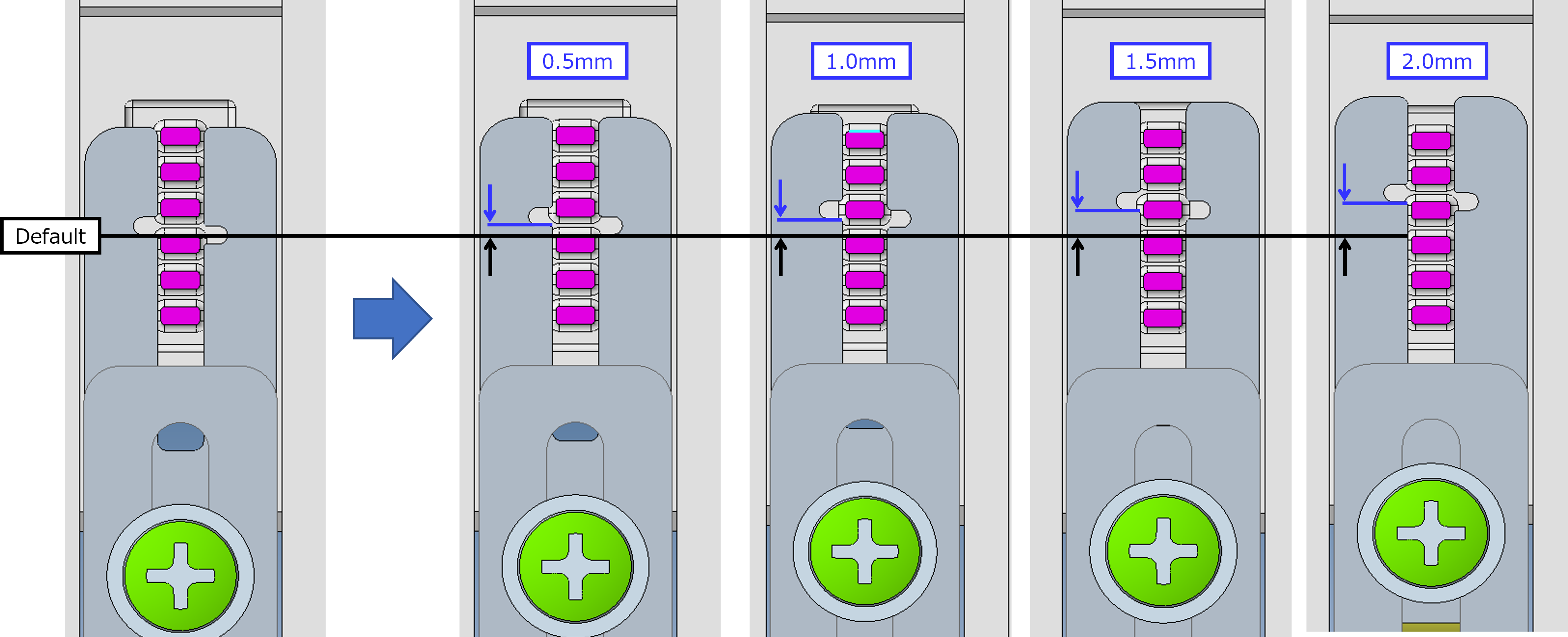

    • Example of changing the adjustment plate position (The figure below is the case of moved to the rear side of the product.)
    Check Point / チェックポイント
    • Depending on when the cassette was produced, if the adjustment plate moved to the rear side of the product more than 6 mm, plate edge(A) will fall into the gap at the bottom of the cassette, and the adjustment plate will not be able to be moved.
    • If this happens, try to recover by pushing the adjustment plate from the rear side of the cassette.

  6. After change position, tighten the fixing screw of the adjustment plate.

    important / 重要

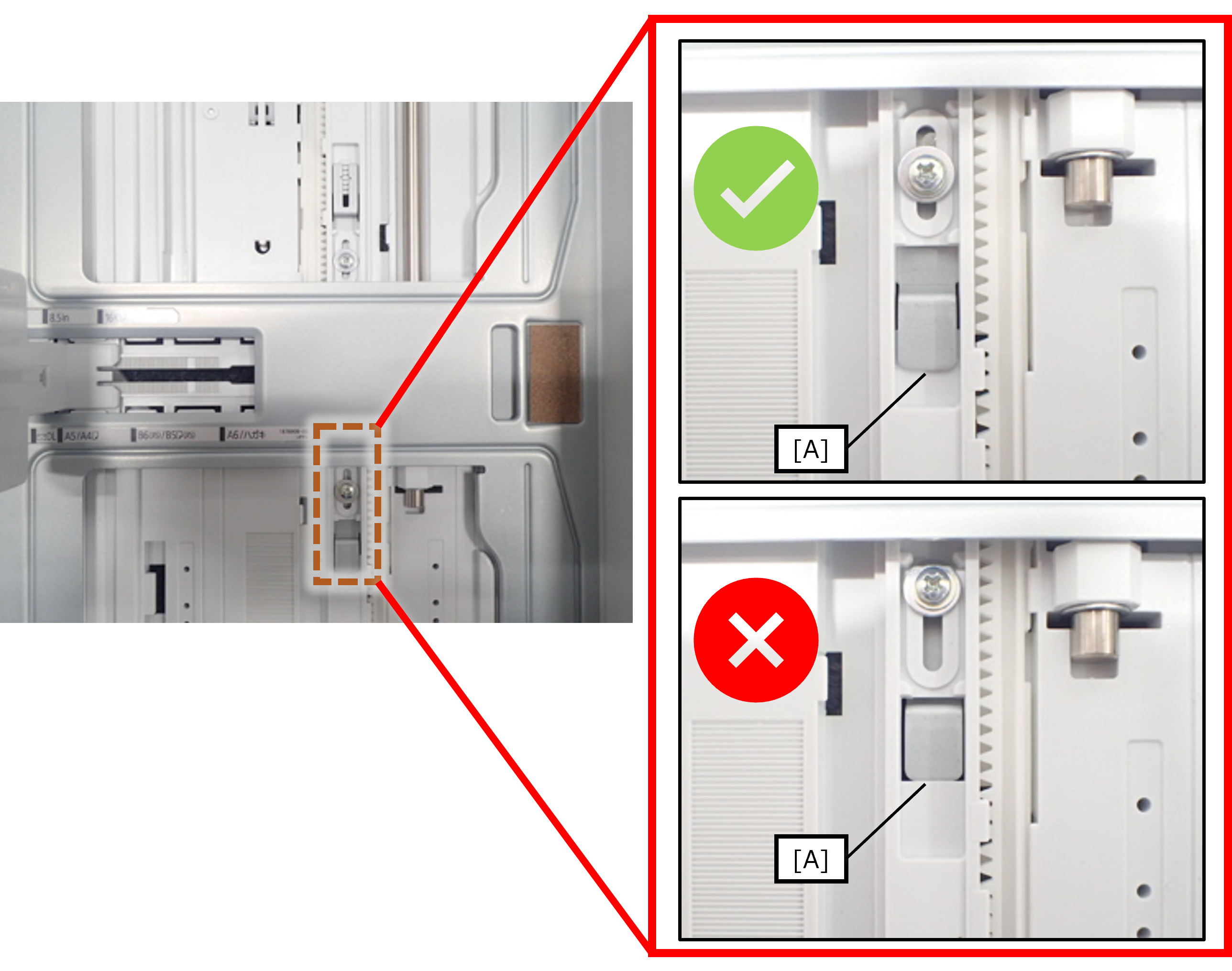

    • When tight the screws, be careful not to shift the position of the adjustment plate.


  7. Tighten the fixing screws on the adjustment plate again and confirm that they are not loose.

    important / 重要
    • Ensure that the fixing screws of the adjustment plate metal are securely tightened.
      If the screws are loose, repeated insertion and removal of the cassette may cause the adjustment plate to shift, potentially resulting in print misalignment.ｚ

  8. Reinstall the removed cassette.
