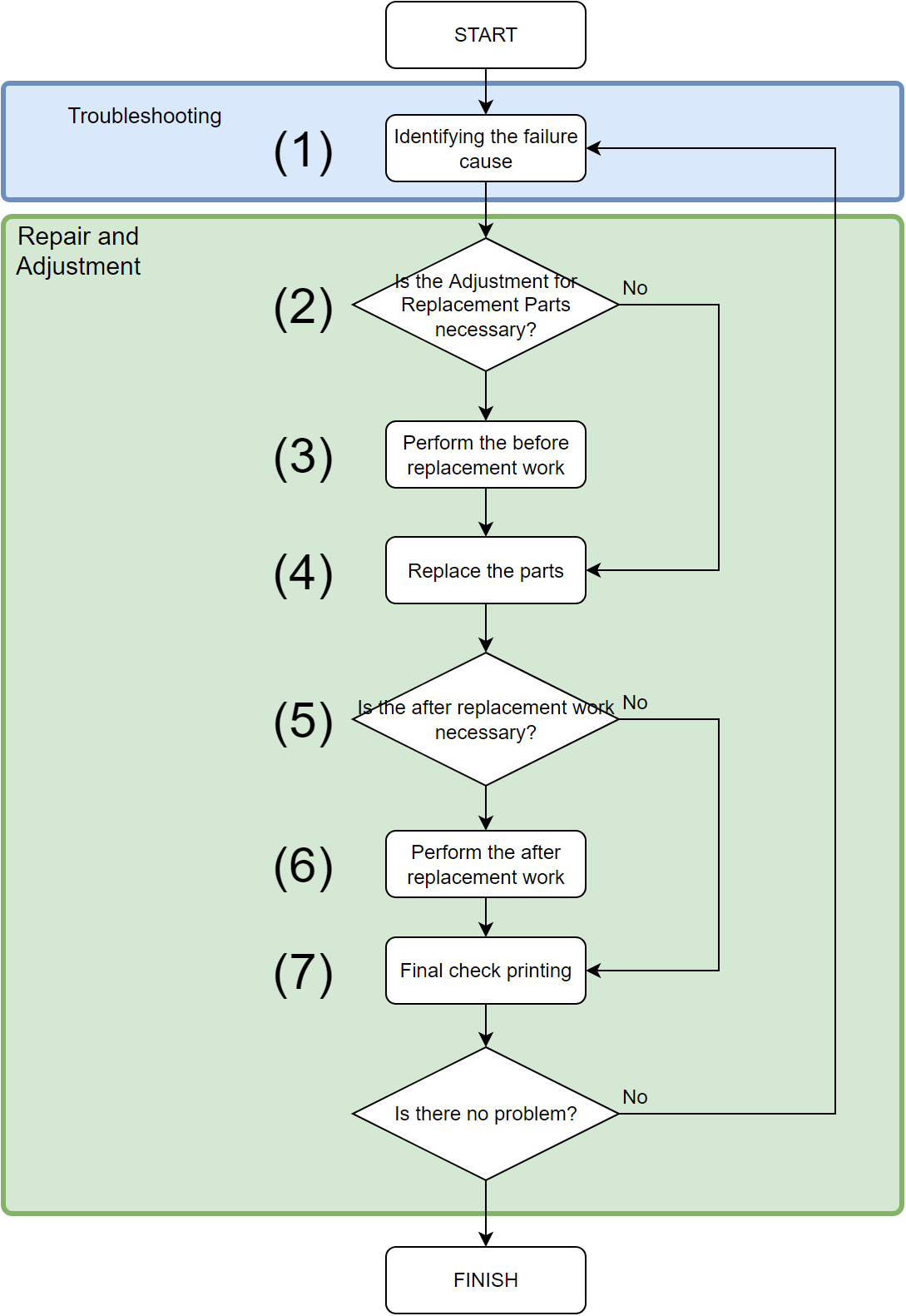

Overview of Repair and Adjustment

No. Overview of operation
(1)

Identify the failure cause
(2)

Check if the preparation is necessary.

Note / 補足

The following is alternative way to check whether replacement adjustment is necessary or not.

  1. Start service support mode, and select 05 Adjustment for Replacement Parts.
  2. Check if there is a menu with the same name as the replacement part.
  3. If there is no menu, there is no adjustments for target replacement part.
(3)

Perform the before replacement work.
(4)

Perform disassembly and assembly of parts.

Refer to the following items before disassembly and assembly.

See below items for the disassembly and assembly procedure.
(5)

Perform the after replacement work.

Note / 補足

After execution step (3), the menu will automatically start after the replacement
(6)

Perform necessary adjustments individually.
(7)

Perform check of the print quality and paper passing quality according to the failure.
