306020211 FIN Paper Guide HP Sensor

Program No. Menu Name Judgment method Remarks
306020211 FIN Paper Guide HP Sensor Check the sensor by pulling the paper guide by hand. TRUE: Detection
FALSE: No Detection
Default: FALSE

  1. Lift the Bundle Paper Ejection Unit (A) in the direction of the arrow.


    Caution / 注意

    Be careful not to touch the Anti Static Brush.

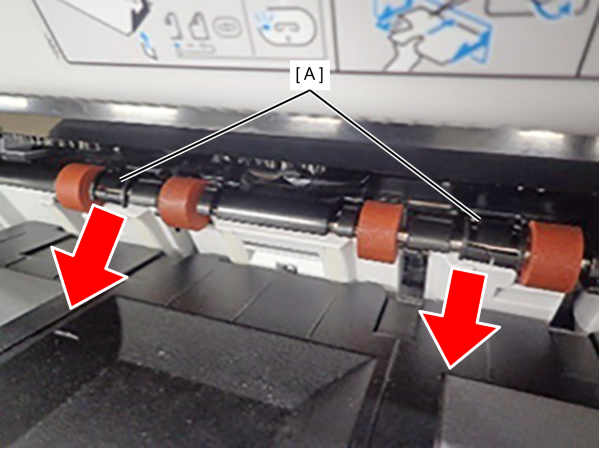

  2. Pull out the paper guide (A) in the direction of the arrow to check the sensor detection status.
