Panel Unit

  1. Open the ADF (A).
  2. Remove the 2 screws and remove the Panel Upper Cover (A).
    • : 3x10DW
  3. Remove the 2 screws.
  4. While lifting the upper side of the Panel Inner Cover (A), remove in the direction of the arrow.

    • : 3x8D/P
  5. Slide the front decorative cover upper (A) in the direction of the arrow to remove it.

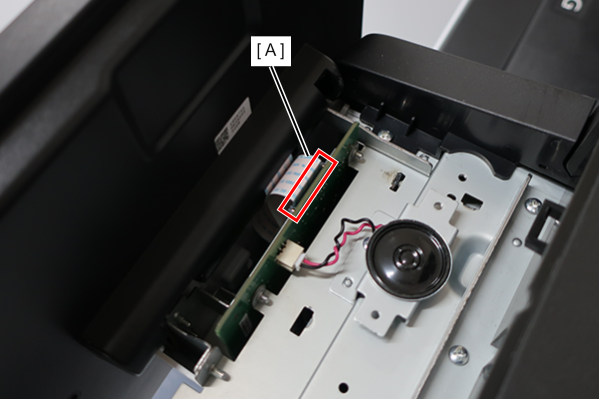

  6. Remove the FFC Cable (A) from the connector.

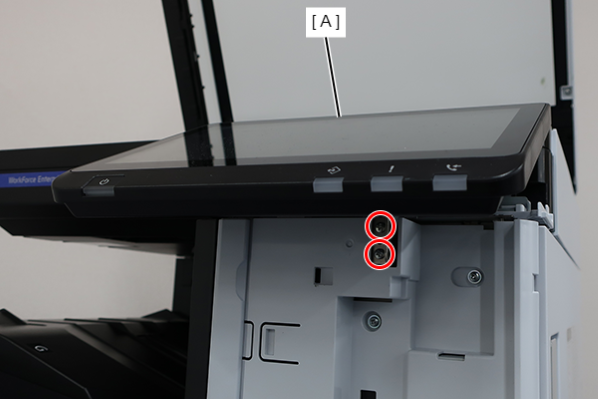

  7. Remove the 2 screws and remove the Panel Unit (A).

    • :3x8D/P
