Additional Left Decorative Cover Front

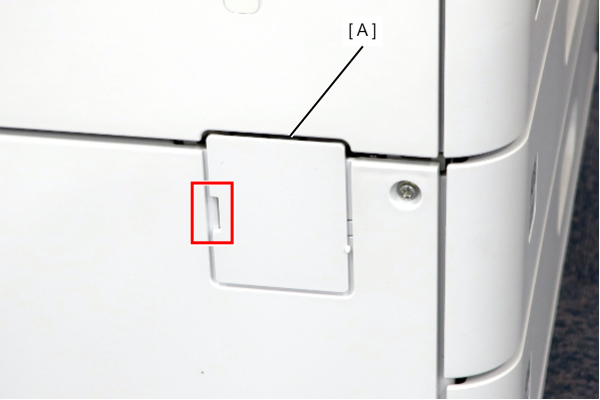

- Release the hook with a flathead screwdriver, etc., and remove the Additional Left Decorative Cover Front (A).
