SDL Paper Bundle Lifting HP Sensor

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.
  2. Refer to the following and remove the SDL Unit from the floor finisher.
    Saddle Unit Installation Procedure
    Caution / 注意
    • When disconnecting the Saddle Unit from the Floor Finisher Unit, the power of the Main Unit must be turned off.

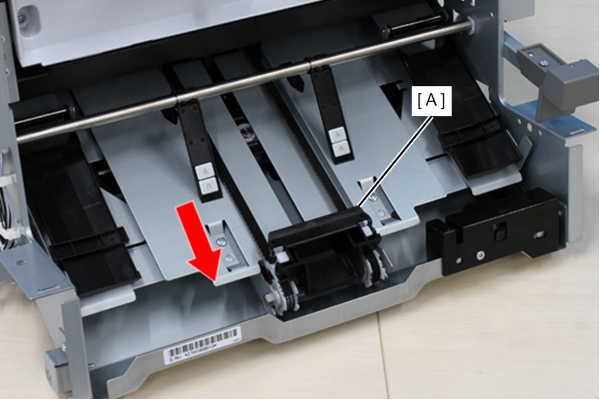

  3. Move the Paper Bundle Lifting Carriage (A) downward.

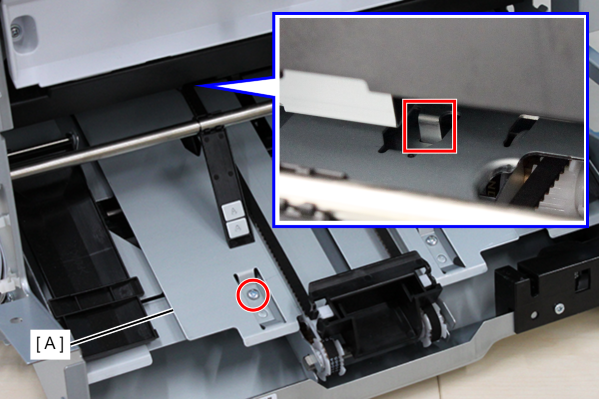

  4. Remove 1 screw, remove the hook, and remove the left plate (A).

    • : 3x8D

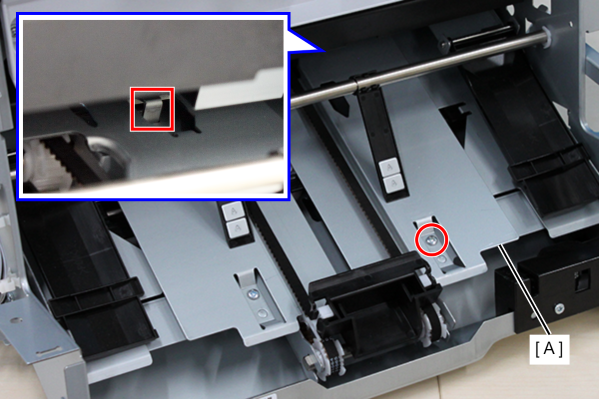

  5. Remove 1screw, remove the hook, and remove the right plate (A).

    • : 3x8D

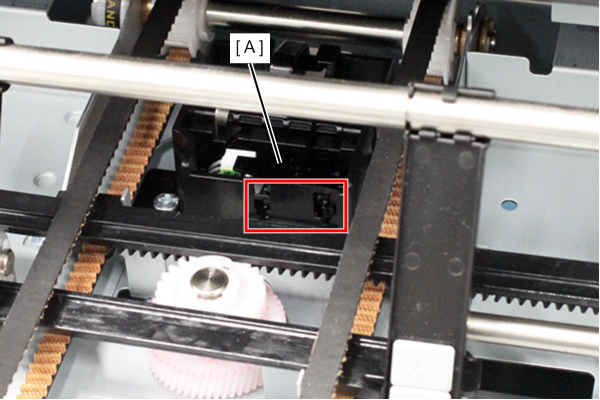

  6. Release the hook and remove the SDL Paper Bundle Lifting HP Sensor (A).

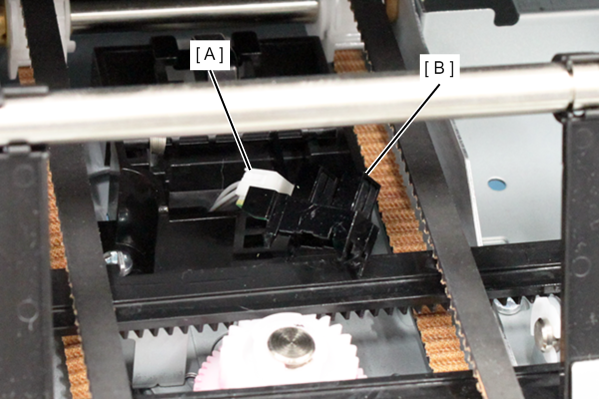

  7. Disconnect the cable from the connector (A) and remove the SDL Paper Bundle Lifting HP Sensor (B).
