60106 Head Data Transfer: After Head Replacement

After replacement the head unit, transfer the information stored in the main unit and the head unit to each other.

  1. Start the service support mode.
  2. Select [06 Individual Adjustment].
  3. Select the [Main Unit・Additional Cassette] tab.

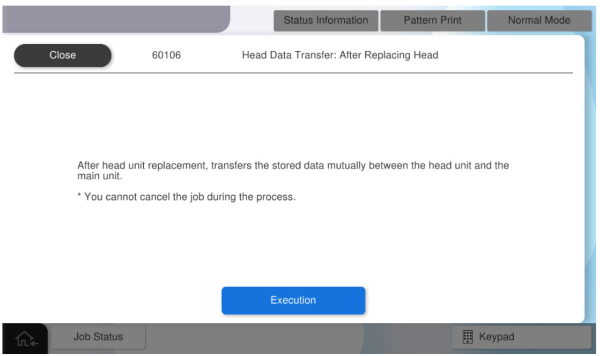

  4. Select [60106 Head data transfer: After head replacement].
  5. Press [Execution].
  6. Press [OK] to complete the adjustment.
