306030211 FIN Upper Tray Full Stack Sensor

Program No. Menu Name Judgment method Remarks
306030211 FIN Upper Tray Full Stack Sensor Shield the sensor from light and check. TRUE: Detection
FALSE: No Detection
Default: FALSE

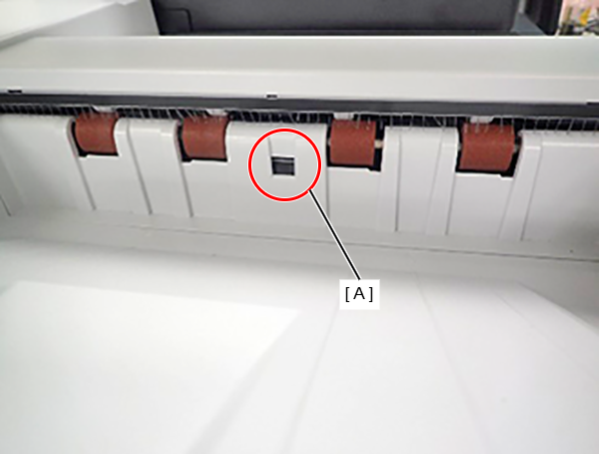

  1. Check the sensor detection status by shading the part (A) in the figure with a sheet of paper or your hand.
