Floor Finisher
Motor

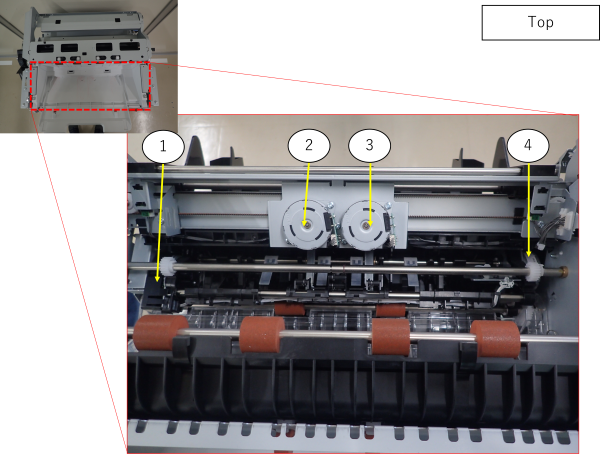

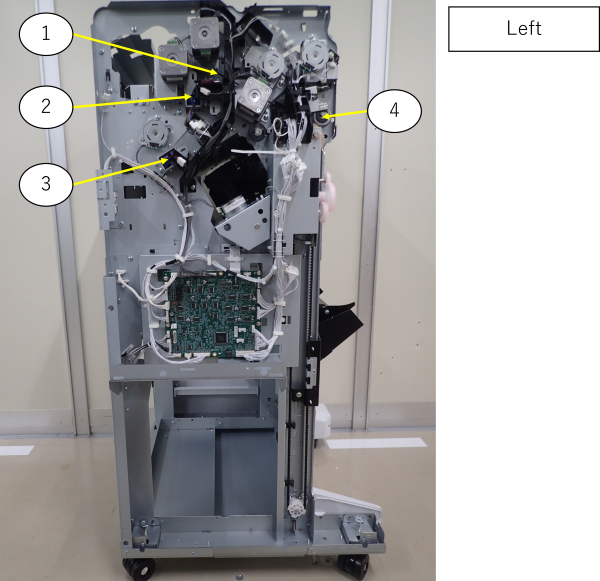

| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | FIN Rear Edge Tapping Motor | Used for the Rear Edge Tapping Unit driving. | - | Upper Unit |
| 2 | FIN Shift Arm Width Alignment Front Motor | Used for shift arm drive. | - | Shift Arm Unit |
| 3 | FIN Shift Arm Width Alignment Rear Motor | Used for shift arm drive. | - | Shift Arm Unit |
| 4 | FIN Pulling Guide Motor | Used for pulling paddle driving. | - | Upper Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

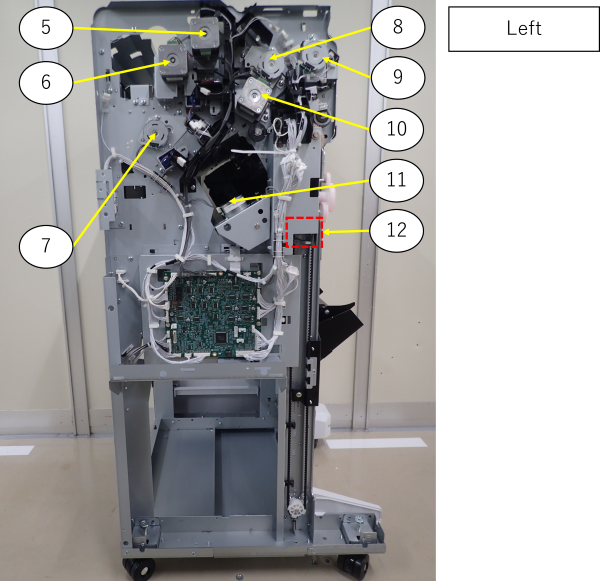

| 5 | FIN Paper Eject Motor | Used for the paper feed roller driving in the finisher paper ejection section. | - | (Rear Cover, Upper) |
| 6 | FIN Paper Feed Motor | Used for the paper feed roller driving the Finisher paper feed section. | - | FIN Paper Feed Motor |
| 7 | FIN Wait Drum Motor | Used for wait drum drive. | - | FIN Wait Drum Motor |
| 8 | FIN Bundle Paper Eject Unit Drive Motor | Used for Bundle Eject Unit drive. | - | FIN Bundle Paper Eject Unit Drive Motor |
| 9 | FIN Shift Arm Release Motor | Used for shift arm drive. | - | FIN Shift Arm Release Motor |
| 10 | FIN MID Drive Motor | Used for paper feed roller drive in the finisher processing section. | - | FIN MID Drive Motor |
| 11 | FIN Stapler Carriage Drive Motor | Used for stapler carriage drive. | - | Stapler Rail Unit |
| 12 | FIN Lower Tray Elevating Motor | Used for Lower Tray Elevating Motor drive. | - | Tray Lifting Gear Block Assy |

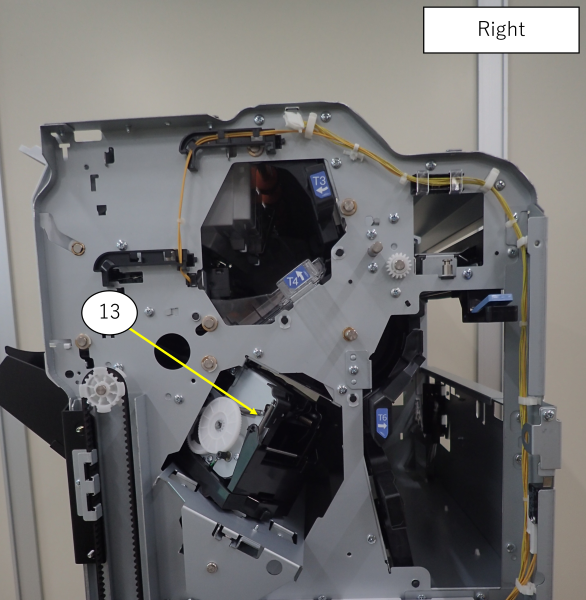

| 13 | FIN Stapler Drive Motor | Used for staple operation. (Built into the stapler unit) | - | Stapler Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

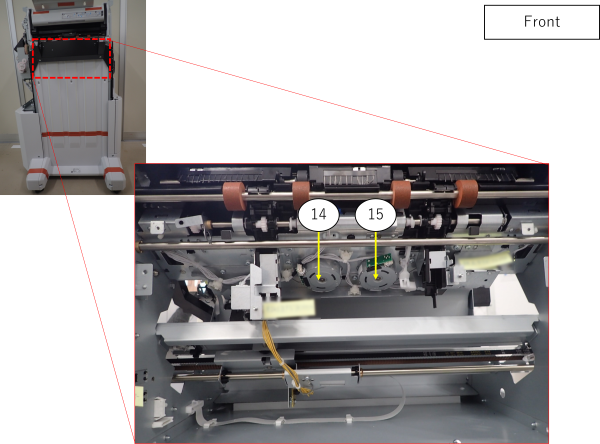

| 14 | FIN Width Alignment Rear Motor | Used for alignment plate drive. | - | Lower Unit |
| 15 | FIN Width Alignment Front Motor | Used for alignment plate drive. | - | Lower Unit |

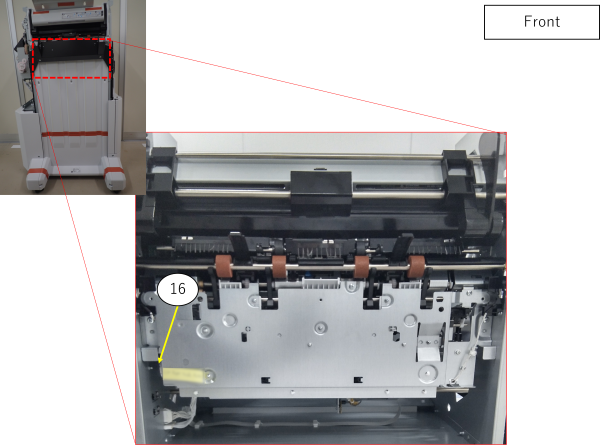

| 16 | FIN Paper Guide Motor | Used for paper guide drive. | - | Paper Holding Unit |
Solenoid / Clutch
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | FIN Wait Drum Switching Solenoid | Used for paper feed with Wait Drum. | - | Rear Cover, Upper |
| 2 | FIN Upper Tray Switching Solenoid | Used for paper feed with upper tray. | - | Rear Cover, Upper |
| 3 | FIN Saddle Path Switching Solenoid | Used for paper feed with saddle unit. | - | Rear Cover, Upper |
| 4 | FIN Ejection Clutch | Used to switch the drive transmission to the ejection roller. | - | Rear Cover, Upper |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

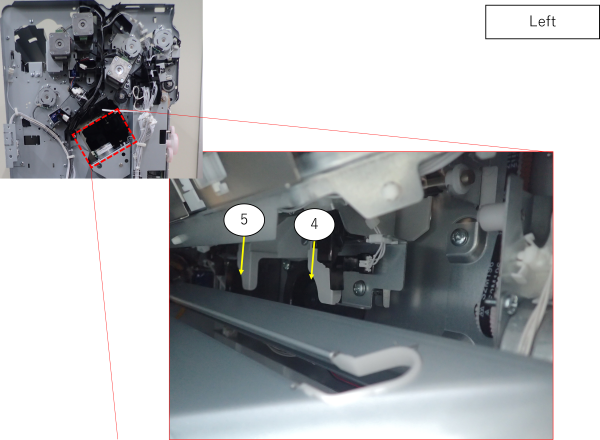

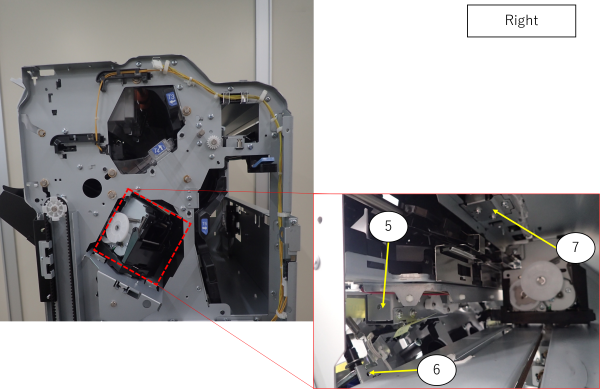

| 5 | FIN Paper Eject Guide Solenoide | Used for paper eject guide drive. | - | Lower Unit |
| 6 | FIN Paper Holder Solenoide | Used for paper holding alignment plate drive. | - | Lower Unit |
| 7 | FIN Processing Tray Paper Holder Solenoide |
Used for processing tray paper holder drive. | - | Lower Unit |
Sensor
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

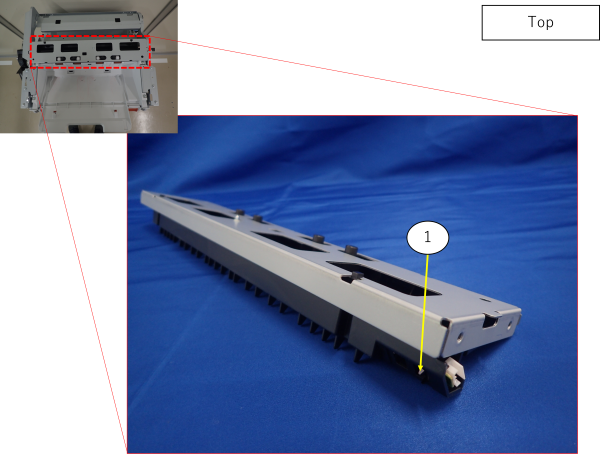

| 1 | FIN Upper Tray Pre-Eject Sensor | Used for position detect of the upper tray paper ejection switching. | Reflective photo interrupter | Upper Paper Eject Feed Sub Roller Unit |

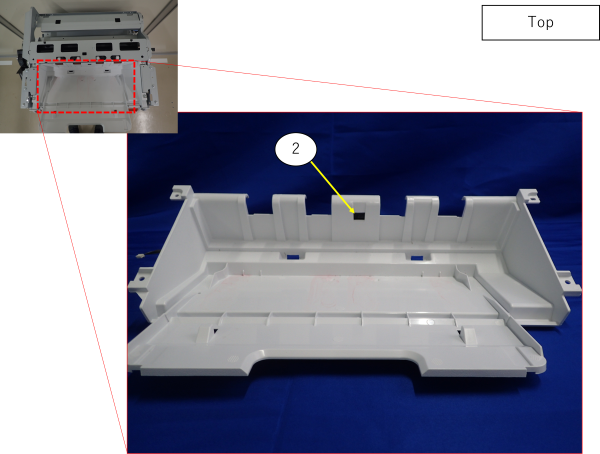

| 2 | FIN Upper Tray Full Stack Sensor | Used for upper tray full stack detection. | Reflective photo interrupter | FIN Upper Tray Full Stack Sensor |

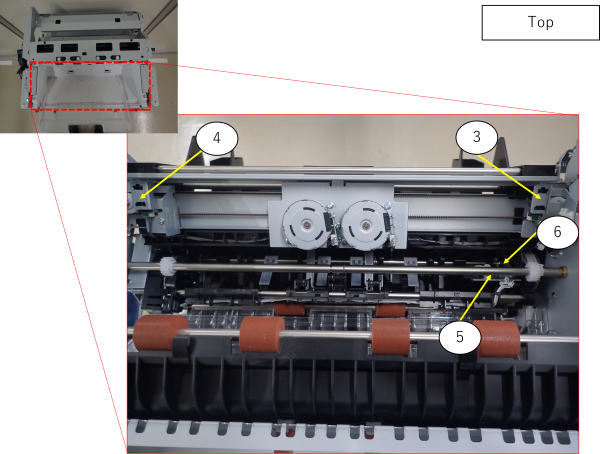

| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 3 | FIN Shift Arm Rear HP Sensor | Detects the home position of the shift arm. | Transmission type photo interrupter | Shift Arm Unit |
| 4 | FIN Shift Arm Front HP Sensor | Detects the home position of the shift arm. | Transmission type photo interrupter | Shift Arm Unit |
| 5 | FIN Rear Edge Tapping HP Sensor | Detects the home position of the rear edge tapping unit. | Transmission type photo interrupter | Shift Arm Unit |
| 6 | FIN Paper Pulling Paddle HP Sensor | Detects the home position of the paper pulling paddle unit. | Transmission type photo interrupter | Shift Arm Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

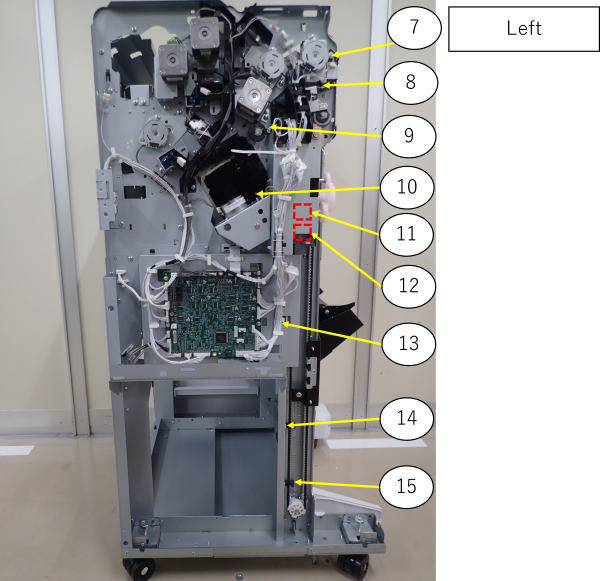

| 7 | FIN Shift Arm Release Position HP Sensor | Detects the home position of the shift arm release position. | Transmission type photo interrupter | FIN Shift Arm Release Position HP Sensor |
| 8 | FIN Shift Arm Set Position HP Sensor | Detects the home position of the shift arm set position. | Transmission type photo interrupter | FIN Shift Arm Set Position HP Sensor |
| 9 | FIN Alignment Paddle HP Sensor | Detects the home position of the alignment paddle. | Transmission type photo interrupter | FIN Alignment Paddle HP Sensor |
| 10 | FIN Stapler Carriage HP Sensor | Detects the home position of the stapler carriage. | Transmission type photo interrupter | Paper Holding Unit |
| 11 | FIN Lower Tray Upper Limit Sensor | Used for lower tray position detection (upper limit detection). | Transmission type photo interrupter | Paper Holding Unit |
| 12 | FIN Lower Tray HP Sensor | Used for lower tray position detection (home position detection). | Transmission type photo interrupter | Paper Holding Unit |
| 13 | FIN Lower Tray Mid Sensor | Used for lower tray position detection. | Transmission type photo interrupter | Rear Cover, Upper |
| 14 | FIN Lower Tray Position Sensor (SDL Unit) | Used for lower tray position detection (lower position detection). | Transmission type photo interrupter | Rear Cover, Lower |
| 15 | FIN Lower Tray Lower Limit Sensor | Used for lower tray position detection (lower position detection). | Transmission type photo interrupter | Rear Cover, Lower |

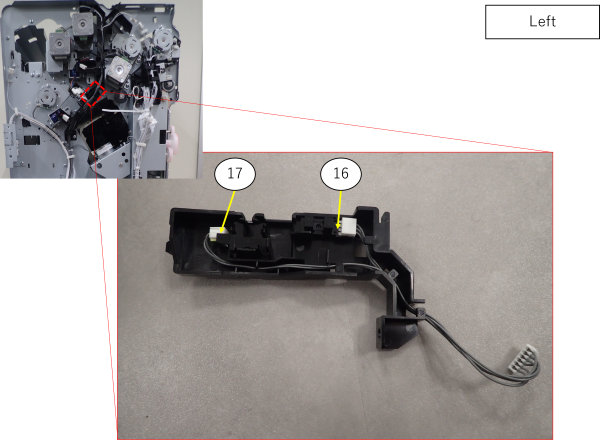

| 16 | FIN Wait Drum Sensor | Used for paper jam remaining detection for the paper path. | Reflective photo interrupter | FIN MID/ Drum Sensor Unit |
| 17 | FIN Lower Tray Ejection Sensor | Used for lower tray paper ejection switching position detect. | Transmission type photo interrupter | FIN MID/ Drum Sensor Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

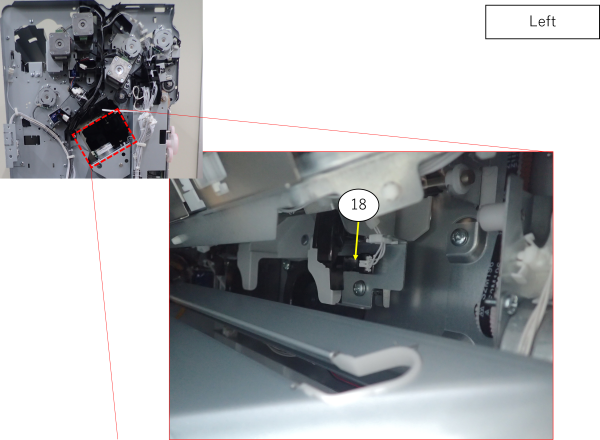

| 18 | FIN Paper Guide HP Sensor | Detects the home position of the shift arm release position. | Transmission type photo interrupter | Paper Holding Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

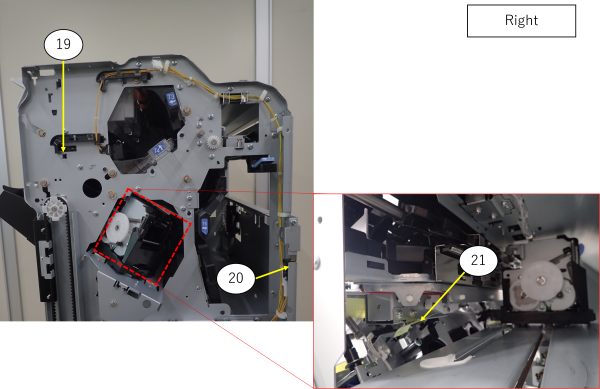

| 19 | FIN Paper Ejection Cover Sensor | Detects the opening and closing states of the ejection cover. | Mechanical contacts | FIN Paper Ejection Cover Sensor |
| 20 | FIN Front Cover Sensor | Detects the opening and closing states of the ejection cover. | Mechanical contacts | FIN Front Cover Sensor |
| 21 | FIN Paper Holder HP Sensor | Detects the home position of the paper holder unit. | Transmission type photo interrupter | Paper Holding Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

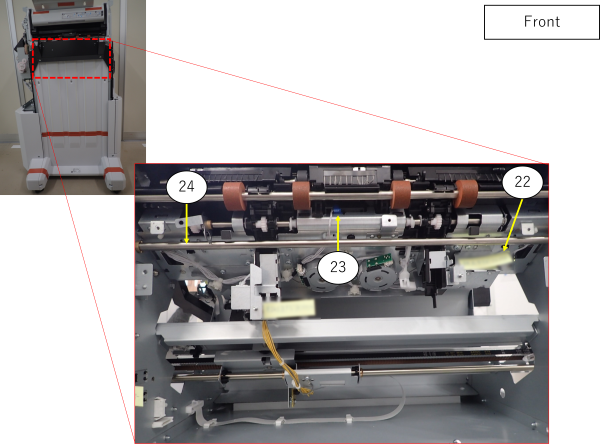

| 22 | FIN Alignment Plate Front HP Sensor | Detects the home position of the alignment plate. | Transmission type photo interrupter | Lower Unit |
| 23 | FIN Processing Part Paper Sensor | Used for paper jam remaining detection for the paper path. | Transmission type photo interrupter | Paper Holding Unit |
| 24 | FIN Alignment Plate Rear HP Sensor | Detects the home position of the alignment plate. | Transmission type photo interrupter | Lower Unit |

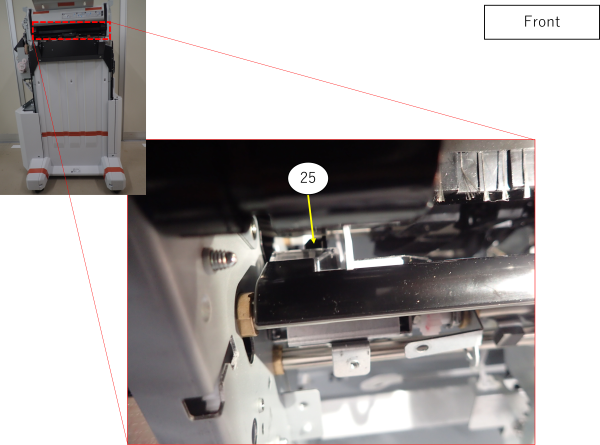

| 25 | FIN Bundle Ejection Unit HP Sensor | Detects the home position of the bundle ejection unit. | Transmission type photo interrupter | Lower Unit |
| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|

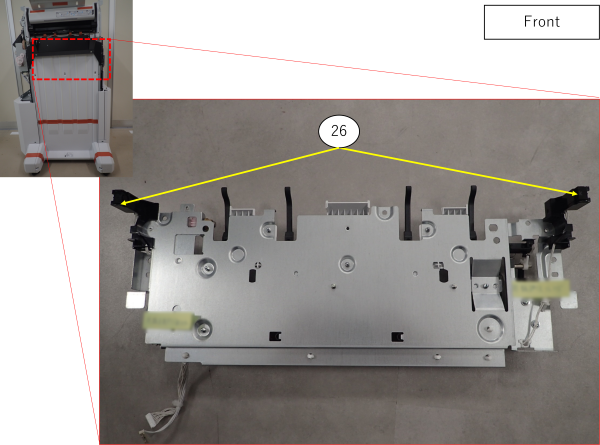

| 26 | FIN Lower Tray Upper Sensor | Used for lower tray full stack detection. | Transmission type photo interrupter | Paper Holding Unit |

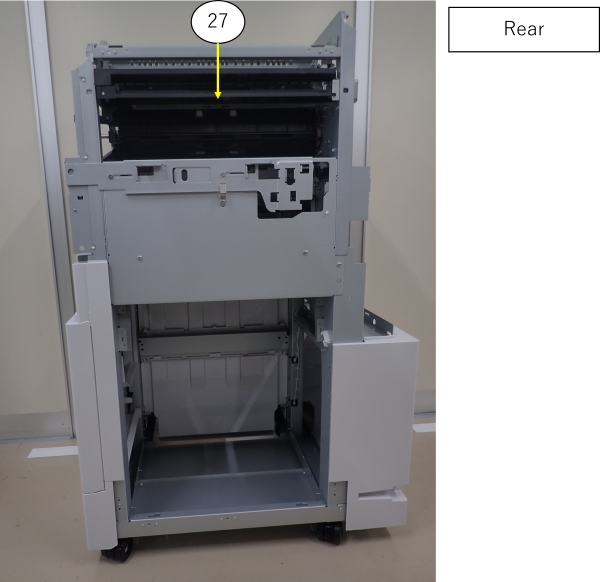

| 27 | FIN Paper Transport Sensor | Used for paper jam remaining detection for the paper path. | Reflective photo interrupter | FIN Paper Transport Sensor |
Fan

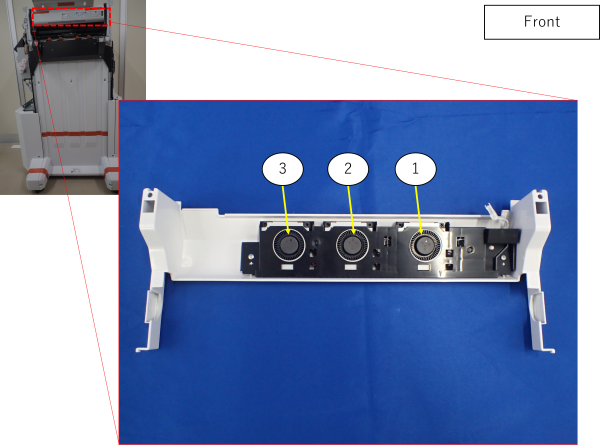

| No. | Name | Function | Type | Replacement procedure |
|---|---|---|---|---|
| 1 | FIN Paper Ejection Fan3 | - | - | FIN Paper Ejection Fan3 |
| 2 | FIN Paper Ejection Fan2 | - | - | FIN Paper Ejection Fan2 |
| 3 | FIN Paper Ejection Fan1 | - | - | FIN Paper Ejection Fan1 |
| 4 | FIN Paper Ejection Fan5 | - | - | Paper Holding Unit |
| 5 | FIN Paper Ejection Fan4 | - | - | Paper Holding Unit |
