ADF Board

Check Point / チェックポイント
  • Be sure to update the firmware after replacement.

  1. Open the ADF cover (B) while pulling the lever (A).
  2. Remove the 6 screws that secure the ADF rear cover (A), and release the 4 hooks.

    • : 3x10DW

  3. Release the two hooks while pressing the position shown in the figure in the direction of the arrow, and remove the ADF rear cover (A).

    Assembly / 組み立て

    Attach the ADF rear cover (A) by inserting the two tabs into the holes.
  4. Disconnect the 2 cables from the 2 connectors (A).

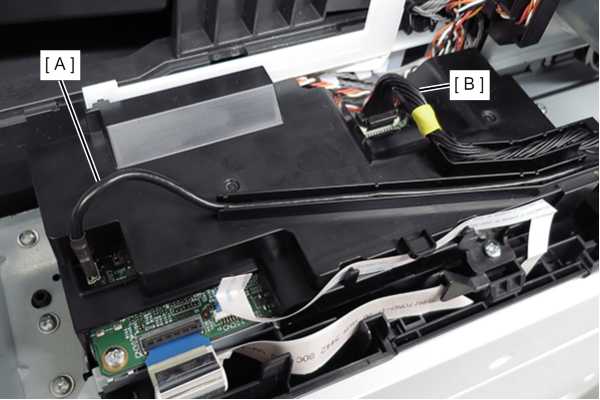

  5. Remove the two cables (A, B) from the two connectors.

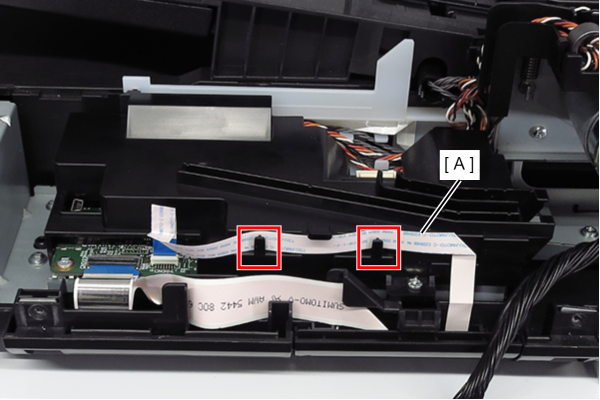

  6. Release FFC (A) from two tabs.

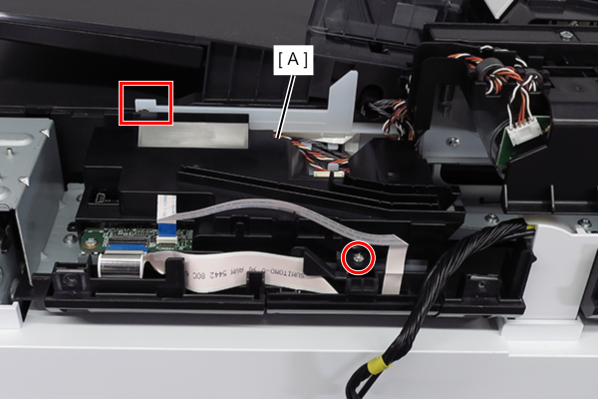

  7. Remove the one screw.
  8. Release the hook and remove the ADF board cover (A).
    • : 3x10DW

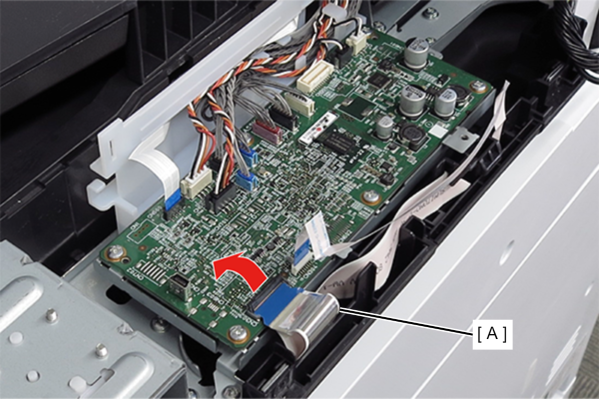

  9. Release the connector lock and remove FFC (A).

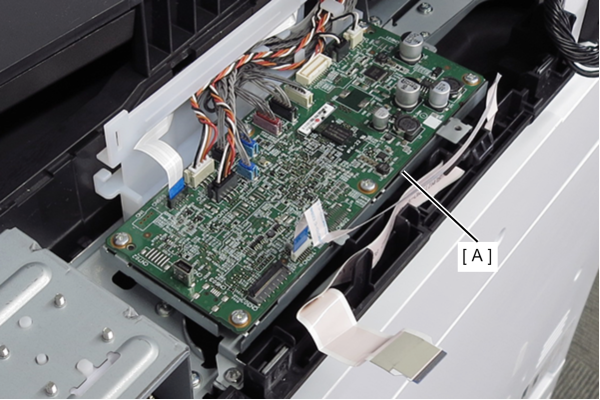

  10. Remove the remaining FFC and cables connected to the ADF board (A).

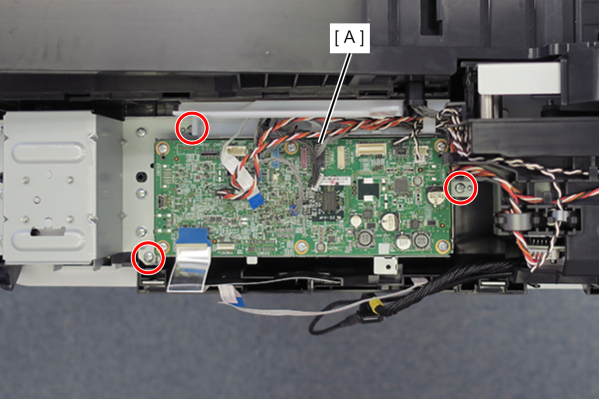

  11. Remove 3 screws and remove the ADF board Assy (A).
    • : 3x8D

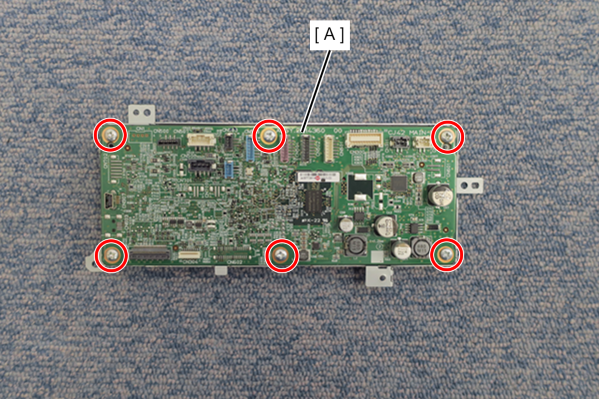

  12. Remove the 6 screws and remove the ADF Board (A).
    • : 3x8D
