Before replacement work for CIS Module(ADF/ SCN) / SCN Upper Case / CISM Spacer

  1. Start the service support mode.
  2. Select [05 Adjustment for Replacement Parts].
  3. Select [ADF / SCN].

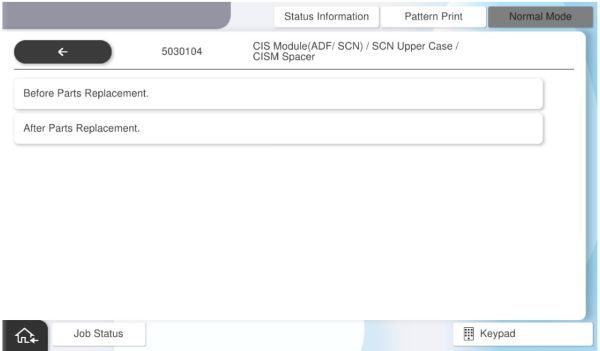

  4. Select [5030104 CIS Module(ADF/ SCN) / SCN Upper Case / CISM Spacer].

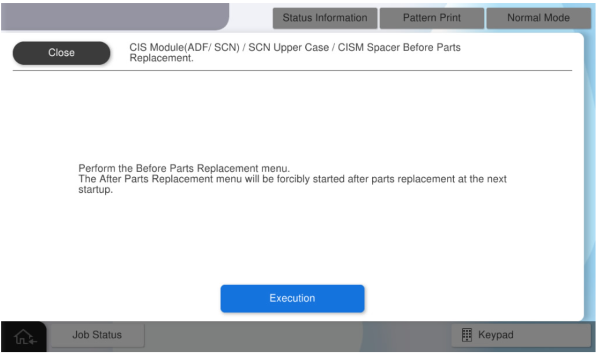

  5. Select [Before Parts Replacement].
  6. Press [Execution].

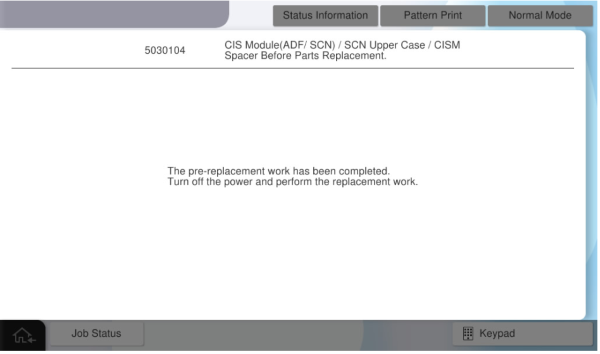

  7. Turn Off the main unit when the following screen is displayed.

    After replacement menu will start automatically at next startup.
