301020207 C1 Paper Sensor
| Program No. | Menu Name | Judgment method | Remarks |
|---|---|---|---|
| 301020207 | C1 Paper Sensor | Check the sensor by moving it by hand. |
TRUE: No Cassette |

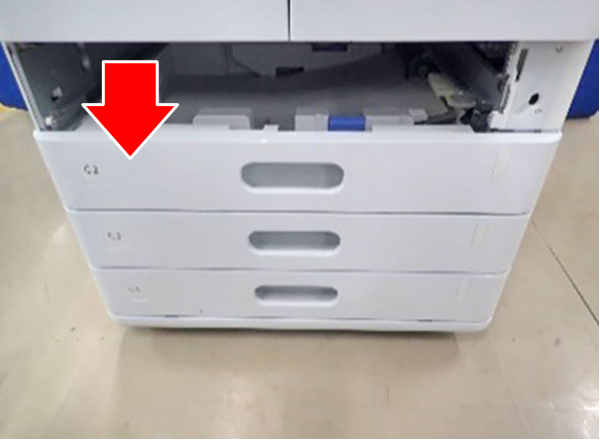

- Remove the C1 cassette.

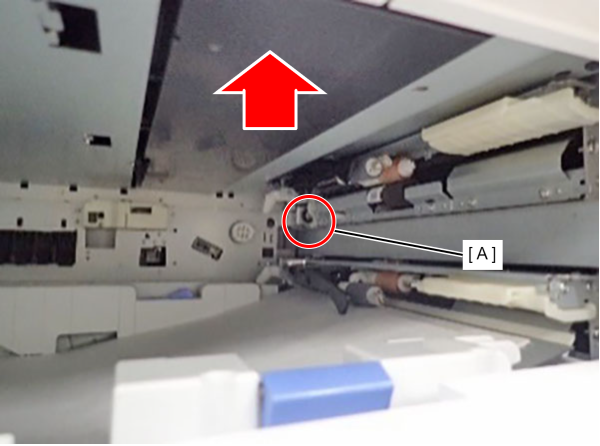

- Push up the sensor (A) in the figure below to check the sensor detection status.
