301020204 Paper Tray Post-Pickup Sensor
| Program No. | Menu Name | Judgment method | Remarks |
|---|---|---|---|
| 301020204 | Paper Tray Post-Pickup Sensor | Check by removing and inserting paper through the paper feed path. |
TRUE: Detection |

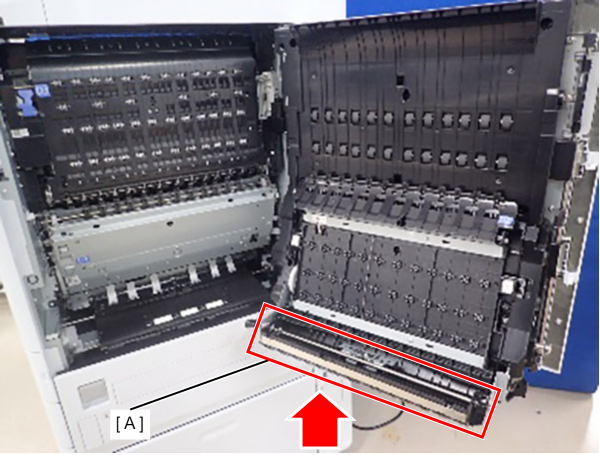

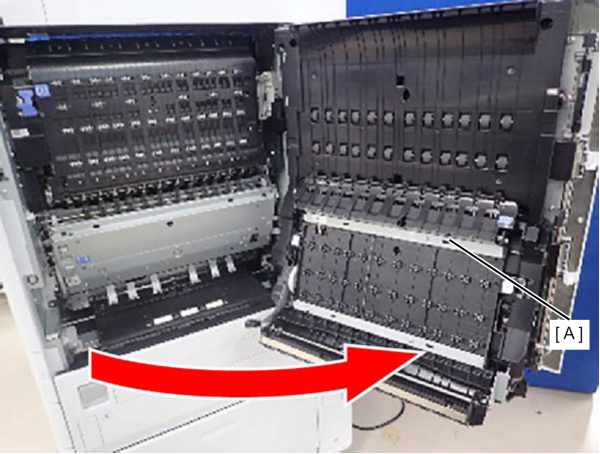

- Open the Right Door Tray (A).

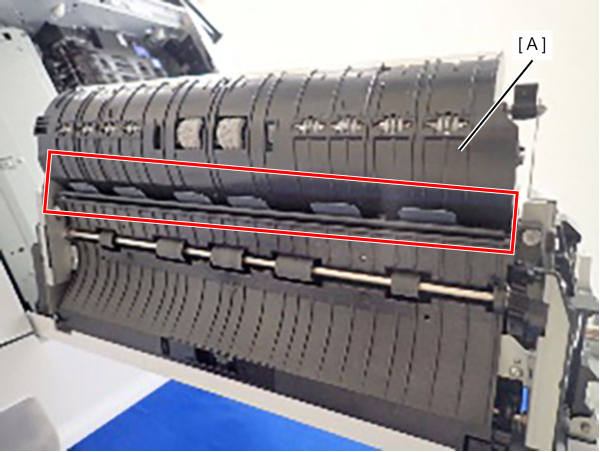

- Look through the bottom of the Right Door Tray and check the sensor detection status by inserting/removing paper to/from the location (A) in the figure.
