ADF / Scanner mechanism
ADF mechanism overview
The ADF unit of this product supports up to A3/Ledger size, and the CIS method using a color CIS module is adopted for document reading.
The document size is detected by the document width sensor and the document length sensor of the document support.
In addition, both sides of the document can be read using the color CIS modules installed in the ADF mechanism and SCN mechanism.

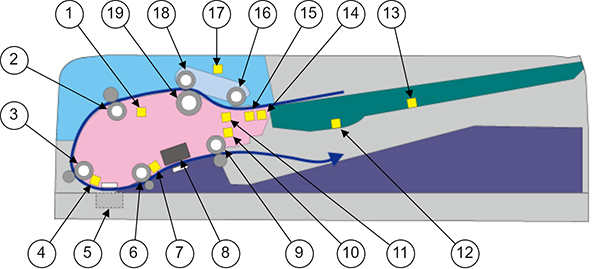

ADF Paper Loading / Paper Feeding Operation
Documents loaded on the Document Support is released from the Set Guide by the drive force of the ADF motor, and then fed into the paper feed mechanism by the Roller (Pickup/ Retard/ Separation), and the Acceleration Roller.

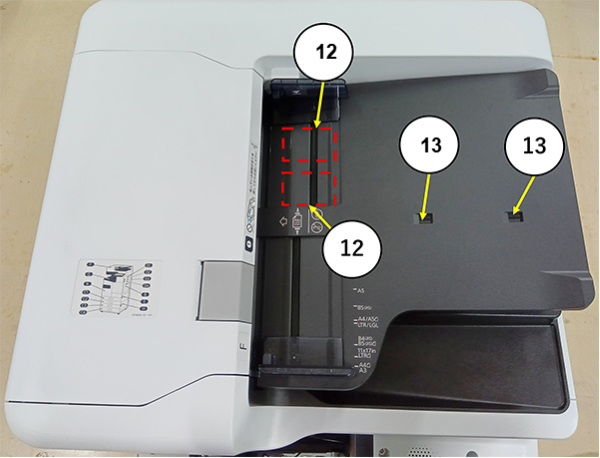

The retard separation method is used for paper separation, and each document is separated by the ADF Retard Roller. To support document feeding up to A3/Ledger, four sensors(Document Width Sensor, ADF (x2)/ Document Length Sensor, ADF (x2)) are mounted in the Document Support for document size detection.
The paper is loaded/fed while stopping the Registration Roller. These status is kept for a certain period of time after the paper reaches the Registration Roller to bend the paper during the skew correction.

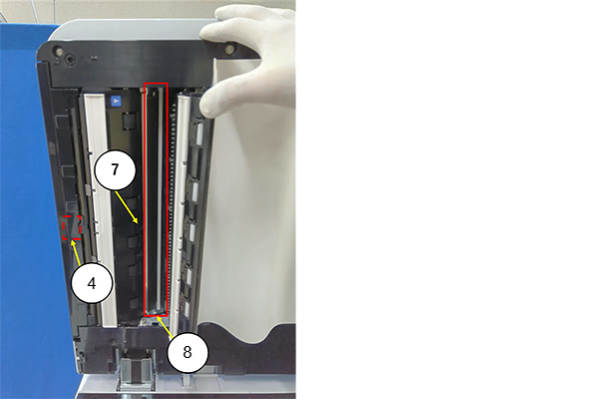

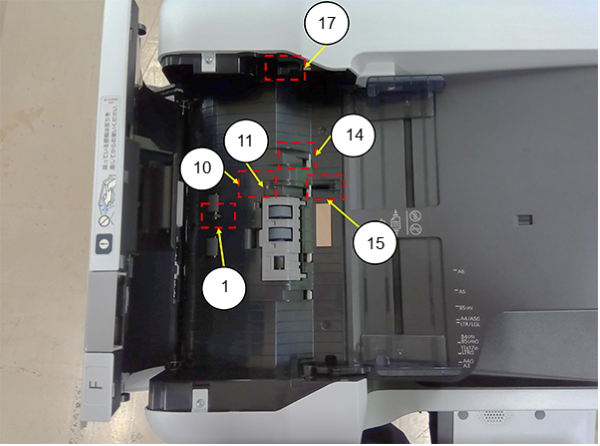

| No. | Name |
|---|---|
| 1 | ADF Post Acceleration Roller Paper Sensor |
| 2 | ADF Acceleration Roller |
| 3 | ADF PF Roller 1 |
| 4 | ADF Post PF Roller1 Paper Feed Sensor |
| 5 | SCN CIS Module |
| 6 | ADF PF Roller 2 |
| 7 | ADF Post PF Roller2 Paper Feed Sensor |
| 8 | ADF CIS Module |
| 9 | ADF Document Ejection Rollers |
| 10 | ADF Pre Paper Eject Roller Paper Feed Sensor |
| 11 | ADF Document Distance Sensor |
| 12 | ADF Document Width Sensor 1/ADF Document Width Sensor 2 |
| 13 | ADF Document Length Sensor 1/ADF Document Length Sensor 2 |
| 14 | ADF Set Guide HP Sensor |
| 15 | ADF Paper Sensor |
| 16 | ADF Pickup Roller |
| 17 | ADF Cover Sensor |
| 18 | ADF Separate Roller |
| 19 | ADF Retard Roller |

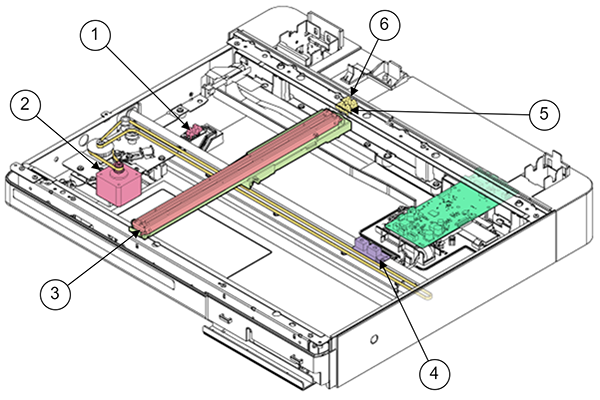

Scanner mechanism
The SCN unit of this product supports up to A3/Ledger size, and the CIS method using a color CIS module is adopted for document reading.
The document size is detected by the document edge detection function of the SCN CIS module and the SCN document length sensor.
| No. | Name |
|---|---|
| 1 | SCN Carriage HP Sensor |
| 2 | SCN Motor |
| 3 | SCN CIS Module |
| 4 | SCN Document Length Sensor |
| 5 | ADF Close Sensor |
| 6 | ADF Half Closed Sensor |
