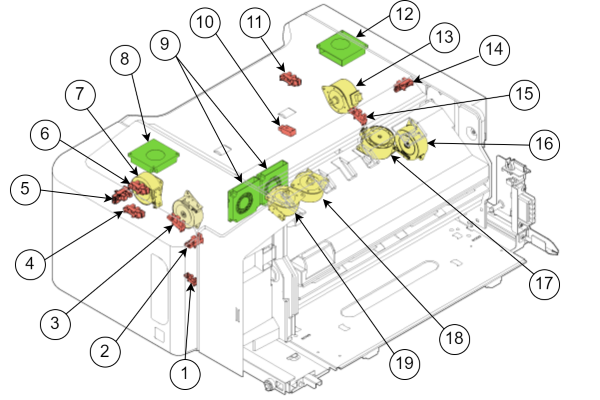

| No. |
Name |
| 1 |
IN FIN Stapler Carriage HP Sensor |
| 2 |
IN FIN Alignment Paddle HP Sensor |
| 3 |
IN FIN Pre-Alignment Plate HP Sensor |
| 4 |
IN FIN Pulling Paddle Release HP Sensor |
| 5 |
IN FIN Bundle Paper Ejection Unit HP Sensor |
| 6 |
IN FIN Pulling Paddle HP Sensor |
| 7 |
IN FIN Bundle Eject Unit Drive Motor |
| 8 |
IN FIN Bundle Paper Ejection Upper Fan |
| 9 |
IN FIN Bundle Ejection Lower Front Fan/ Rear Fan |
| 10 |
IN FIN Processing Tray Paper Sensor |
| 11 |
IN FIN Paper Guide HP Sensor |
| 12 |
IN FIN Bundle Paper Ejection Upper Rear Fan |
| 13 |
IN FIN Pulling Paddle Release Drive Motor |
| 14 |
IN FIN Rear-Edge Tapping HP Sensor |
| 15 |
IN FIN Alignment Plate Rear HP Sensor |
| 16 |
IN FIN Rear-Edge Tapping Motor |
| 17 |
IN FIN Stapler Carriage Drive Motor |
| 18 |
IN FIN Post-Width Alignment Motor |
| 19 |
IN FIN Pre-Width Alignment Motor |
