Paper Guide feed1 Assy
Cleaning purpose
Paper dust and foreign objects may cause paper jams.

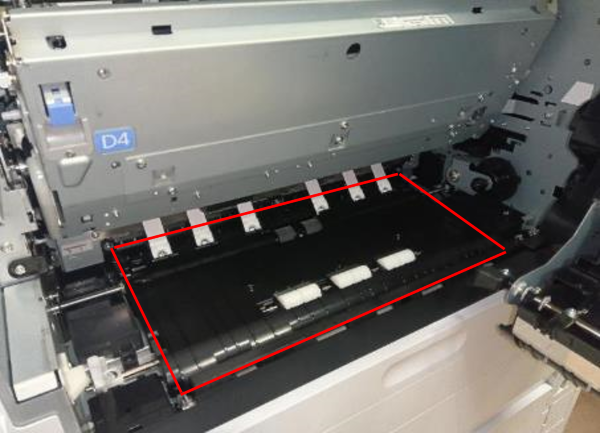

Position
- Pull the lever to open the Right Door Unit (A).
Cleaning method
Wipe off with a soft cloth soaked in water and wrung out tightly.
