301070203 Right Cover Sensor
| Program No. | Menu Name | Judgment method | Remarks |
|---|---|---|---|

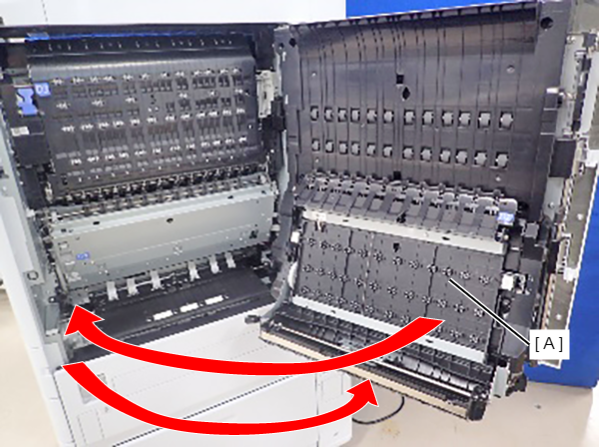

| 301070203 | Right Cover Sensor | Open and close the Right Door Unit. | TRUE: Cover open detection |
- Check the sensor detection status by opening/closing the Right Door Unit (A).
