306050214 SDL Vertical Paper Feed Sensor

Program No. Menu Name Judgment method Remarks
306050214 SDL Vertical Paper Feed Sensor Check by passing the paper through the paper feed path. TRUE: Detection
FALSE: No Detection
Default: FALSE

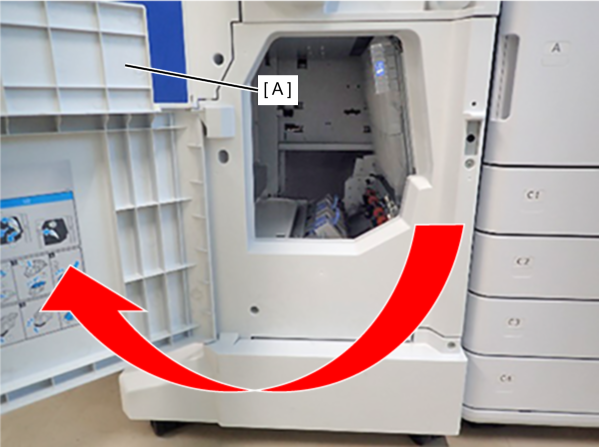

  1. Open the U1 Cover (A).
  2. Push the U2 (A) in the direction of the arrow.

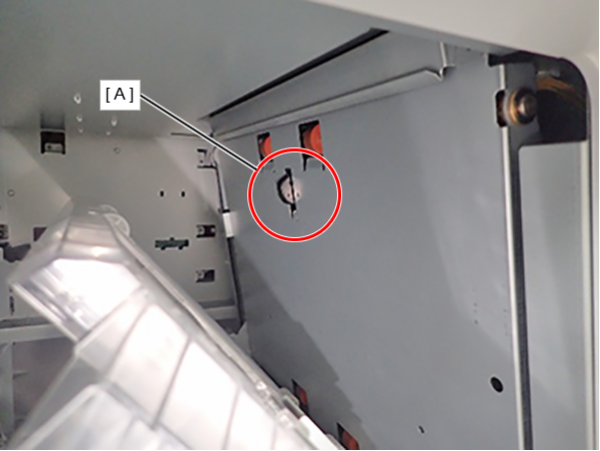

  3. Check the detection status of the sensor by pushing and returning the lever (A) by hand.
