Left Side Cover, Lower

  1. Refer to the following and remove the floor finisher from the printer main unit.
    Floor Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Floor Finisher from the Main Unit, the power of the Main Unit must be turned off.

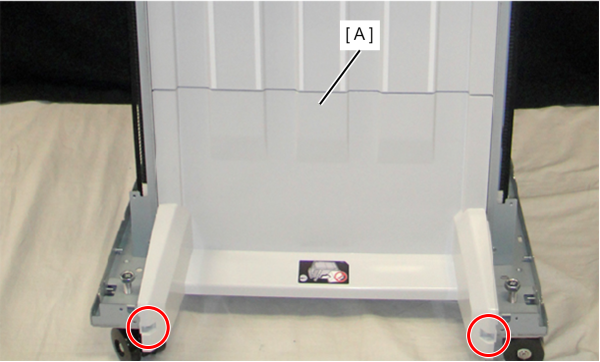

  2. Remove 2 screws and remove the Left Cover, Lower (A).

    • : 4x8D/P
