Main Unit (Motor)
Motor
| No. | Name | Element | Function | Type | Replacement procedure |
|---|---|---|---|---|---|

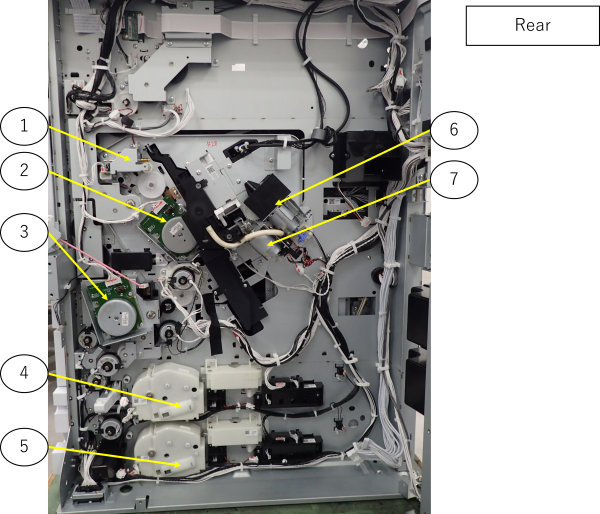

| 1 | APG Motor | PF | Used to drive PG height adjust mechanism depending on the print settings/paper type. |
DC motor (42V) | (Open the board box) |
| 2 | Belt Drive Motor |
PF | Used to drive the Belt Unit. | DC brushless motor (24V) | Belt Drive Motor |
| 3 | All Drive Motor |
ASF | Used for driving the paper feed rollers. | DC brushless motor (24V) | All Drive Motor |
| 4 | C1 Liftup Motor | ASF | Used to raise the paper cassette hopper. | DC motor (24V) | C1 Liftup Motor |
| 5 | C2 Liftup Motor | ASF | Used to raise the paper cassette hopper. | DC motor (24V) | C2 Liftup Motor |
| 6 | Head Lifting Motor | ASF | Used to lifting motion drive of the head unit. | DC motor (42V) | Head Lifting Motor Assy |
| 7 | Wiper Drive Motor | IS | Drives the wiper to clean the nozzle surface. | DC motor (42V) | Wiper Drive Motor Assy |
| No. | Name | Element | Function | Type | Replacement procedure |
|---|---|---|---|---|---|

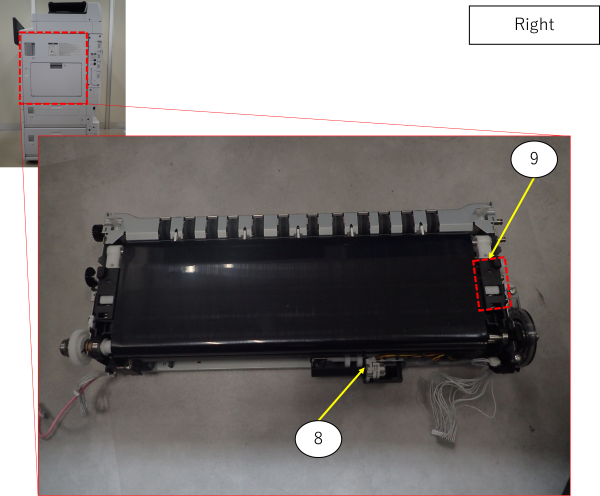

| 8 | Belt Maintenance Drive Motor | PF | Drives the belt cleaner to bring it into contact and away from the belt surface. |
Stepping motor (24V) | (Belt Unit) |
| 9 | Belt Cleaner Drive Motor |
PF | Drives the belt cleaner to rotate. | Stepping motor (24V) | (Belt Unit) |

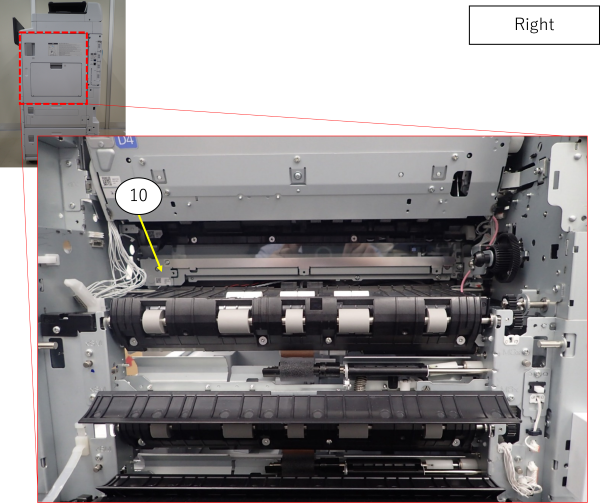

| 10 | PW Carriage Drive Motor |
ASF | Used to move the sensor that detects the paper width left and right. | DC motor (42V) | (PW Sensor Unit) |
| No. | Name | Element | Function | Type | Replacement procedure |
|---|---|---|---|---|---|

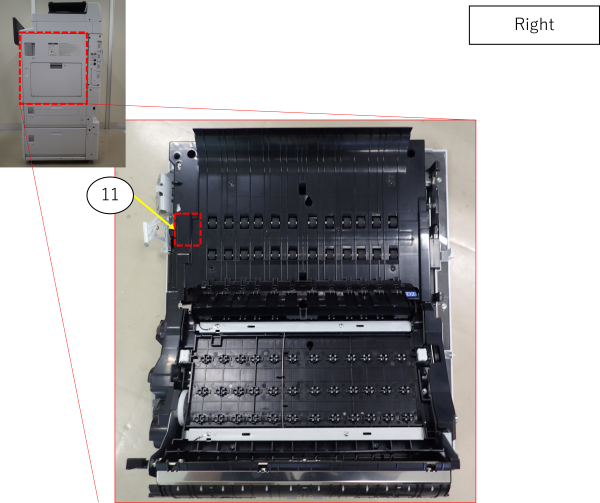

| 11 | Reverse Drive Motor | Feed Tray (B) | Used to drive the reversal roller mechanism. |
DC brushless motor (24V) | Reverse Drive Motor Assy (Right Door Unit) |
| No. | Name | Element | Function | Type | Replacement procedure |
|---|---|---|---|---|---|

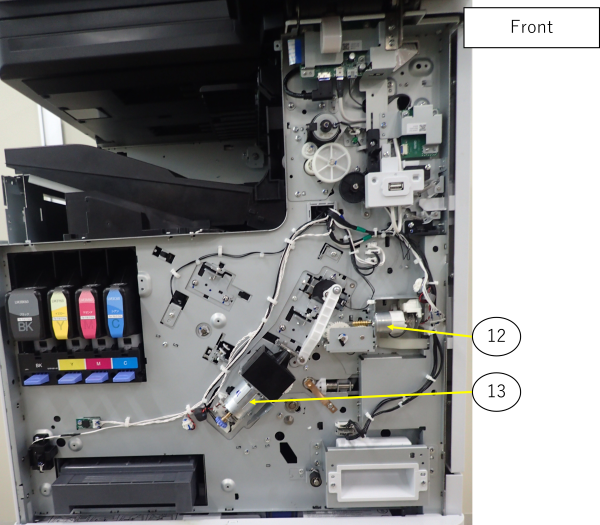

| 12 | Belt Tension Release Motor |
PF | Drives the cam to releases the tension of the Belt Drawer Unit for the purpose of the prevention of belt deformation. | DC motor (42V) | (Front Right Cover) |
| 13 | Cap Drive Motor |
IS | Used to move the cap up or down. | DC motor (42V) | Cap slide motor Assy |

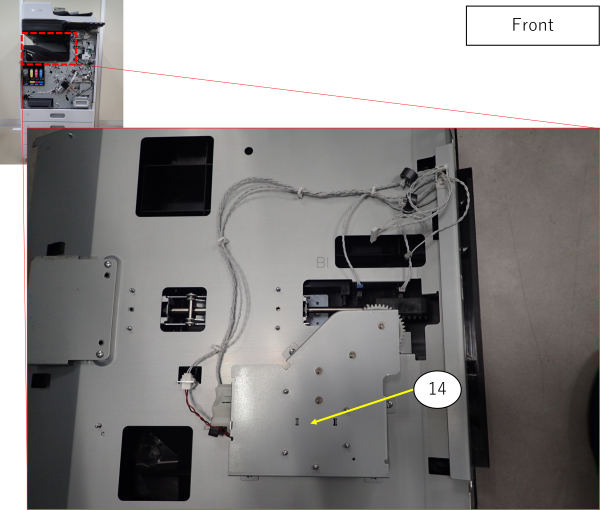

| 14 | Paper Ejection Tray Rib Lifting Motor | EJ | Used to move the Paper Ejection Tray Rib up or down. | DC motor (42V) | (FD Stacker Assy) |
Fan
| No. | Name | Element | Function | Type | Replacement procedure |
|---|---|---|---|---|---|

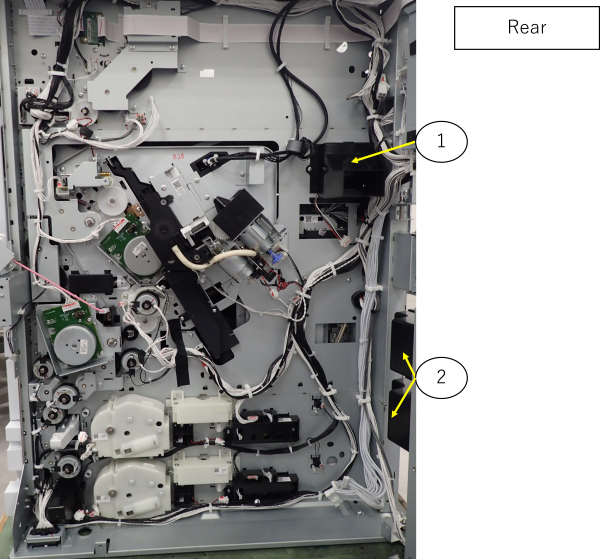

| 1 | Head Control Board Cooling Fan | Main Unit | Blows air toward the Head Board to cool it. | - | (Open the board box) |
| 2 | Power Supply Board Cooling Fan 1 | Main Unit | Blows air toward the Power Supply Board to cool it. | - | (Power Supply Box) |
| Power Supply Board Cooling Fan 2 |
| No. | Name | Element | Function | Type | Replacement procedure |
|---|---|---|---|---|---|

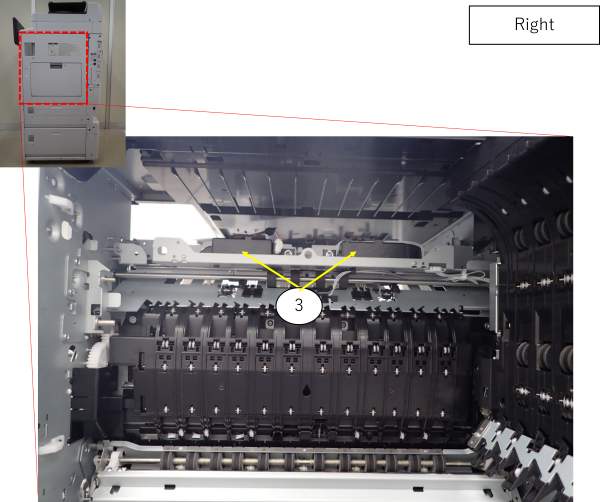

| 3 | 1st Paper Eject Tay Fan1 | EJ | Used to reduce paper curl of ejected sheets of paper to be stacked neatly. | - | (Open the D3 Unit) |
| 1st Paper Eject Tay Fan2 |
