Right Cover

  1. Refer to the following and remove the High Capacity Paper Feed Unit from the printer main unit.
    High Capacity Unit Installation Procedure

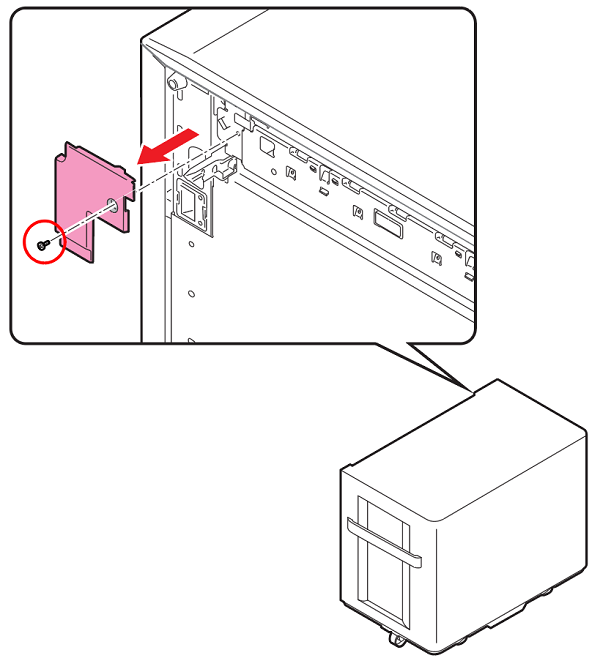

  2. Remove the 1 screw and remove the Cable Cover.
    • : 3x6D/P

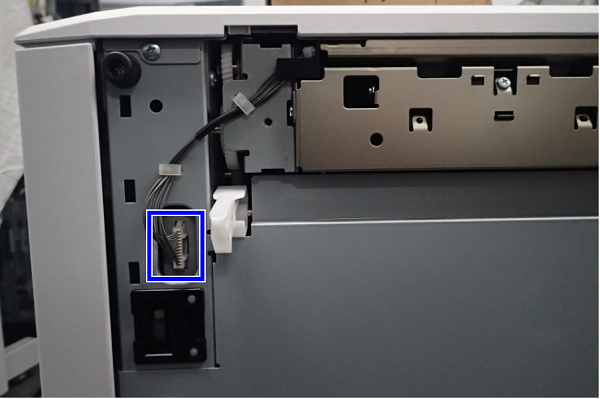

  3. Disconnect the connector from the High Capacity Unit.

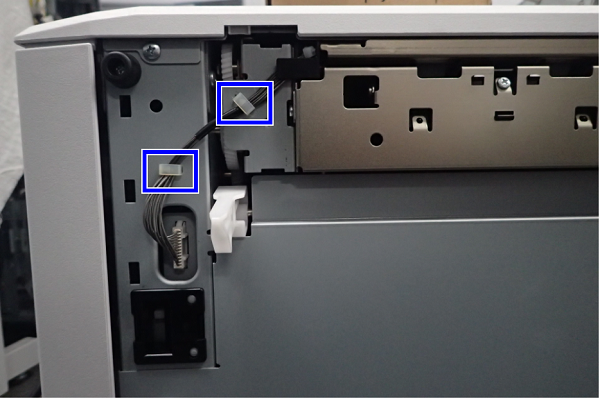

  4. Release the cable(s) from 2 clamps.

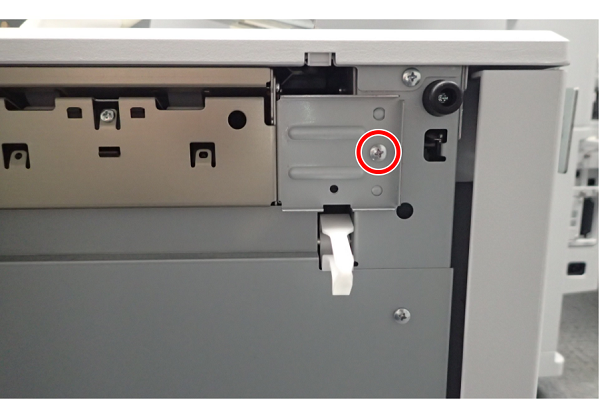

  5. Remove the screw.

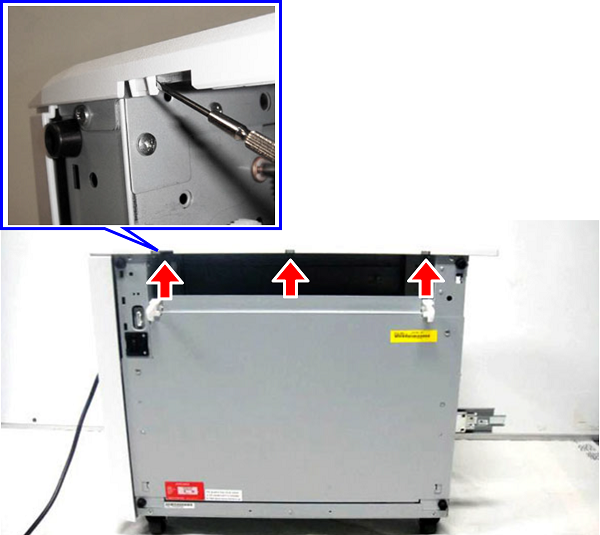

    • : 4x8M/P

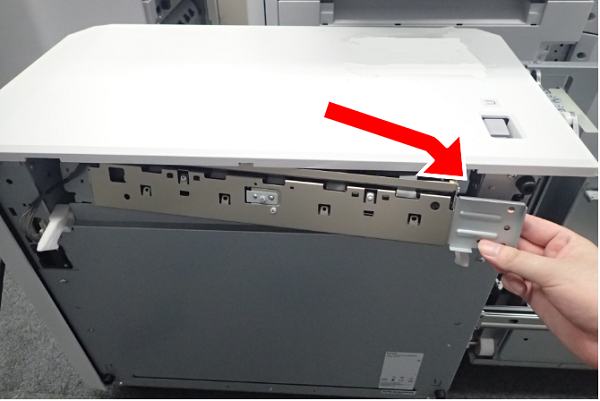

  6. Slide the Paper Feed Unit to the front, then remove.

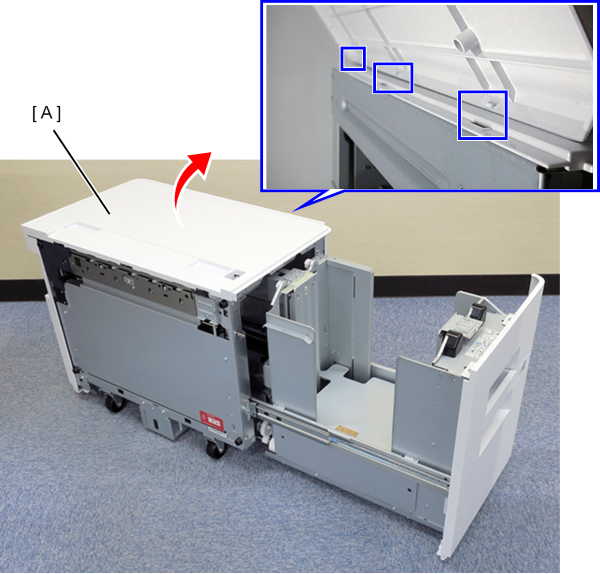

  7. Disengage 3 hooks at the top part of the left side using the tip of a flat-blade screwdriver.
  8. Lift up and remove the Top Cover (A).


    Assemble / 組み立て

    When attaching the Top Cover, hook 3 hooks at the top part of the right side and then fix it in place with 3 hooks at the top part of the left side. Make sure that there is a clicking sound.
  9. Remove the 4 screw.


    • : 4x10DC/P
  10. Remove the Back Cover while pulling out the cable from the hole in the Back Cover.



    important / 重要

    • Do not remove the Lift Wire parts except when there is trouble.
    • The wires for lifting up are holding the front and back of the lift cassette horizontal so you need to perform horizontal adjustment if they are removed.

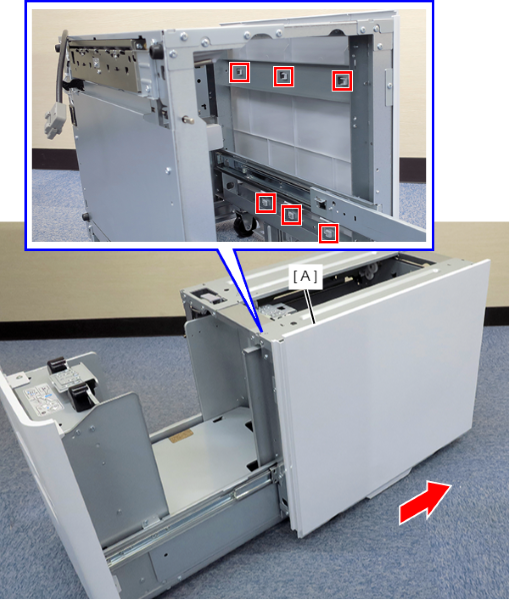

  11. Slide the Right Side Cover (A) to the rear to release the 6 hooks and remove it.
