307020205 IN FIN Paper Pulling Paddle HP Sensor

Program No. Menu Name Judgment method Remarks
307020205 IN FIN Paper Pulling Paddle HP Sensor Check the sensor while manually rotating the paddle shaft slowly.

TRUE: No Detection
FALSE: Detection
Default: FALSE

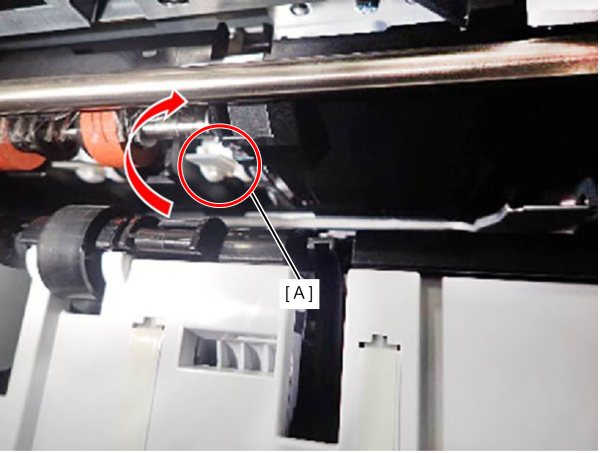

  1. Lift the Shaft (A) in the direction of the arrow.

    Caution / 注意

    Be careful not to touch the Anti Static Brush.
  2. Check the sensor detection status by rotating the paddle shaft (A).
