305010202 BRG Paper Path Paper Feed Sensor 1

Program No. Menu Name Judgment method Remarks
305010202 BRG Paper Path Paper Feed Sensor 1 Shield the sensor from light and check.

TRUE: No Detection
FALSE: Detection
Default：TRUE

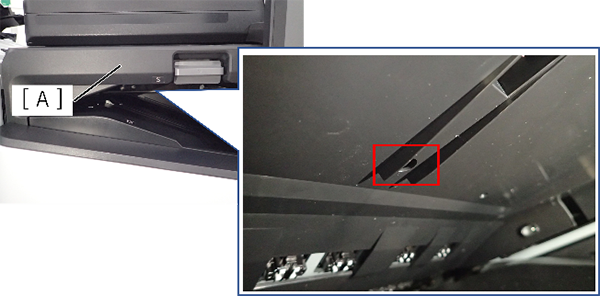

  1. Check the sensor detection status by holding a sheet of paper or your hand over the sensor (in the red frame in the figure).
