IN FIN Front Cover Sensor

  1. Refer to the following and remove the inner finisher from the printer.
    Inner Finisher Installation Procedure
    Caution / 注意
    • When disconnecting the Inner Finisher Unit from the Main Unit, the power of the Main Unit must be turned off.
  2. Remove the two screws and remove the tray assembly (A).

    • : 4x8DC/BK/P
  3. Open the cartridge cover (A) and remove the Staple Cartridge (B).
  4. Remove 1 screw of the Housing Front (A).
    • : 3x8DC
  5. Open the cartridge cover (A) and remove the screw securing the Housing Front.
    • : 3x8DC
  6. Lift the Housing Front  (A) to unhook.
  7. Open the right side of the Housing Front  (A) and slide it to the left to remove the interference with the rail (B) and remove the Housing Front (A).


    Check Point / チェックポイント

    Be careful the Housing Front (A) can easily get caught by extension spring on the inside.
    Assembly / 組み立て

    Install the Housing Front (A) with the cartridge cover (B) opening. The protrusion inside the cartridge cover (B) may contact the cover open sensor (C) and damage it.
  8. Remove 1screw, rotate the IN FIN Front Cover Sensor (A) toward the product to remove the dowel, and lift upwards to remove it.

    • : 3x8D

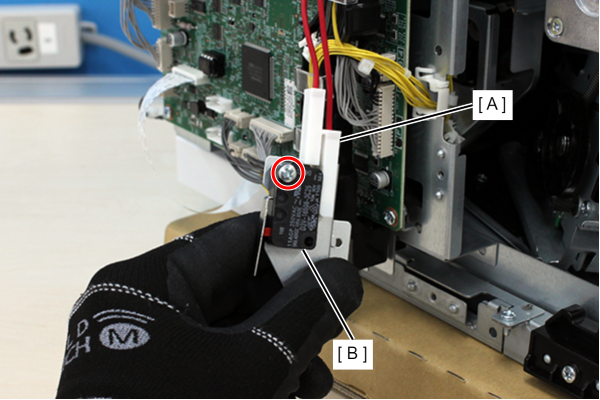

  9. Remove the connector (A), remove 1 screw, and remove the IN FIN Front Cover Sensor (B).

    • : 3x16D

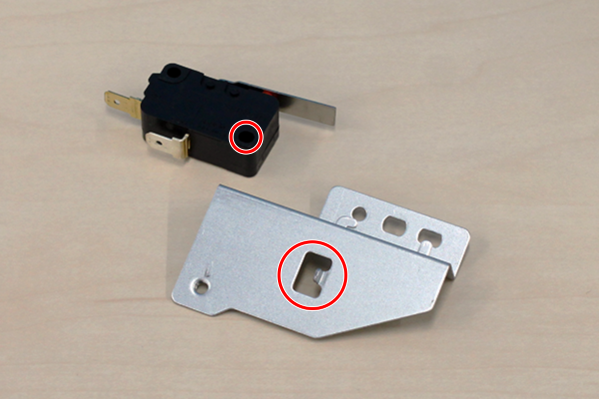

    Assembly / 組み立て

    Align the dowel with the positioning hole and install.
