High Capacity Paper Cassette

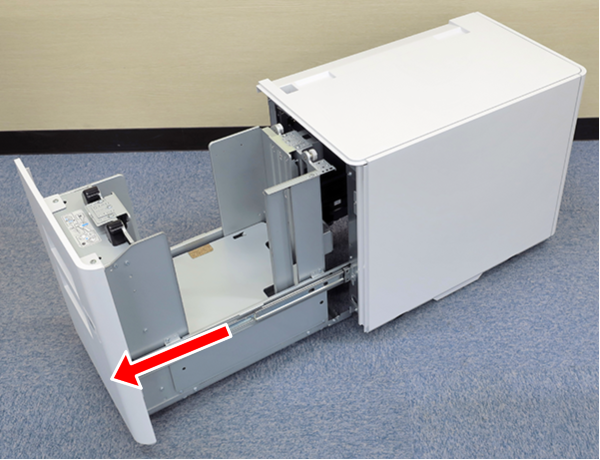

  1. Pull out the High Capacity Paper Cassette.

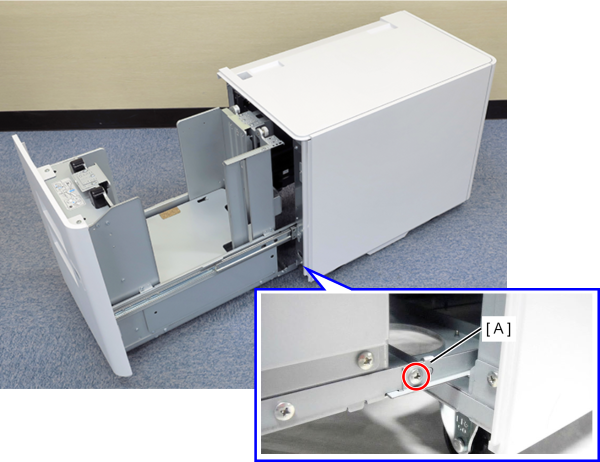

  2. Remove the screw, then remove the Cassette Slide Lock Pin (A).


    • : 4x10DC/P

    Check Point / チェックポイント
    • The High Capacity Paper Cassette can be pulled out the maximum amount if you remove the Cassette Slide Lock Pin.

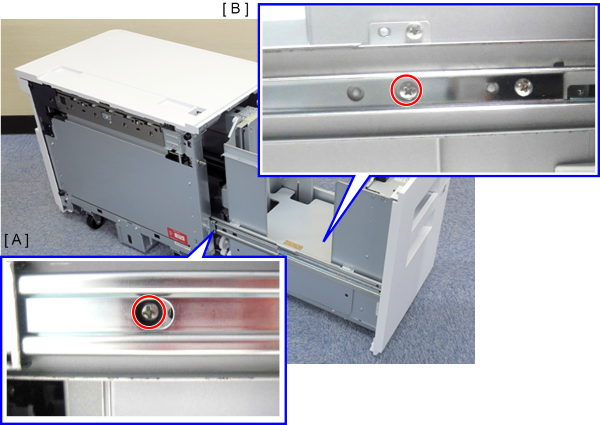

  3. Remove 2 screws on the right side.


    • : 4x8DC/P
    A: Remove the second screw counting from the front.
    B: Remove not the screws at the very back, but the screws that can be seen inside when the two rail metal plates are pulled out about 90%.

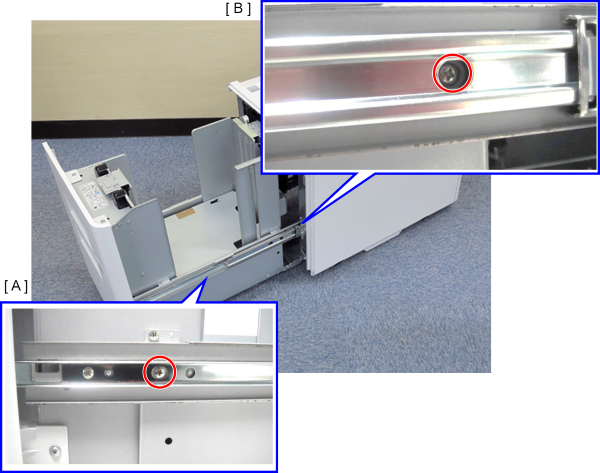

  4. Remove 2 screws on the left side.


    • : 4x8DC/P
    A: Remove not the screws at the very back, but the screws that can be seen inside when the two rail metal plates are pulled out about 90%.
    B: Remove the second screw counting from the front.

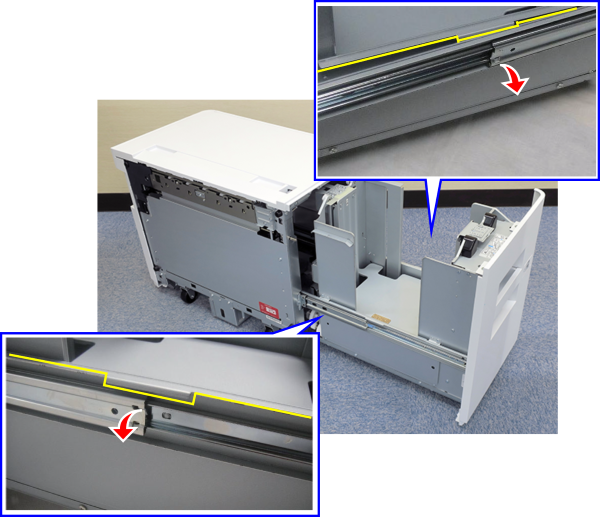

  5. Open the rail outwards, then remove the hooks of the yellow line parts on left and right side.

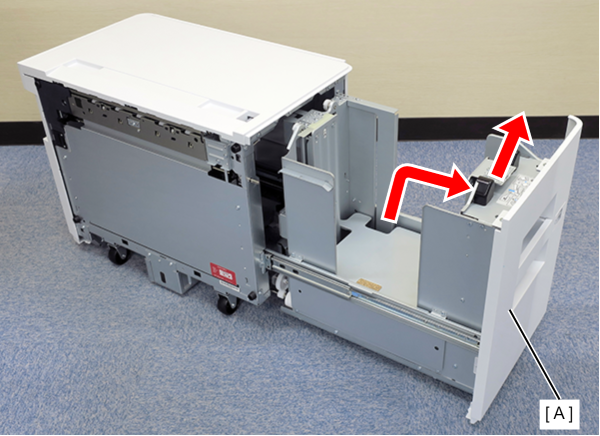

  6. There is a hooking part so pull the High Capacity Paper Cassette (A) in the direction of the arrow to remove it.
