3010101 Failure Diagnostics Sequence 1

  1. Start the service support mode.
  2. Select [03 Failure Verification].
  3. Select [Main Unit] tab.

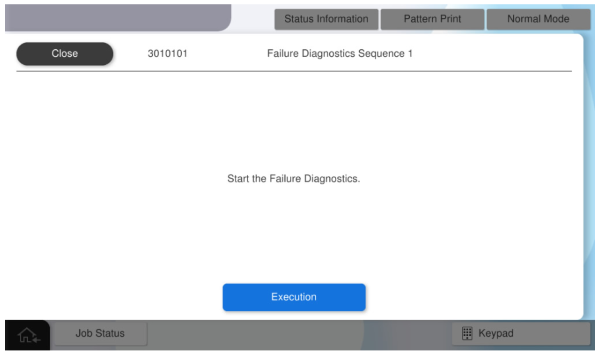

  4. Select [3010101 Failure Diagnostics Sequence 1].
  5. Press [Execution].

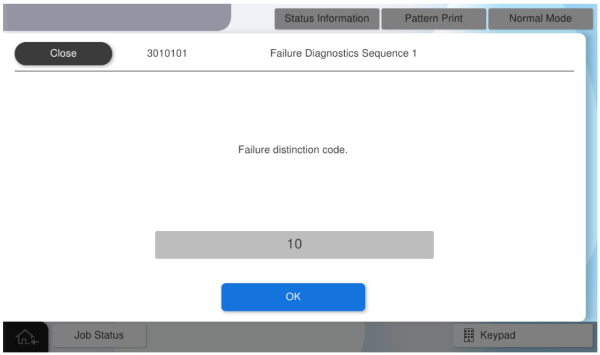

  6. Take appropriate action based on the displayed Failure Distinction Code.

    Failure distinction code Code Details
    01 Replace the Selector Unit
    10

    Take the following measures (most likely order)

    1. Selector Unit
    2. Maintenance Unit
    11

    Take the following measures (most likely order)

    1. Replace the Ink Supply Unit
    2. Replace the Selector Unit
    Check Point / チェックポイント

    In [3010101 Failure Diagnostics Sequence],The Failure Determination Code "01" "10" "11" is displayed.
