Paper Tray Assy

  1. Pull the lever to open the Right Door Unit (A).
  2. Remove the 2 screws.
  3. Release the hook on the blue frame and remove the Right Door Right Cover (A) while turning in the direction of the arrow.

    • :3x8D/P
    Assembly / 組み立て

    Attach the Right Door Right Cover (A) by passing the bearing part through the hole as shown in the figure.

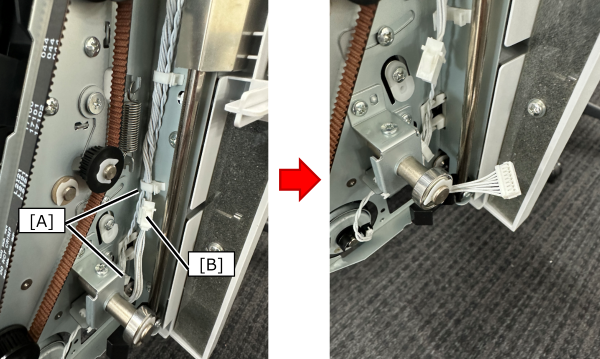

  4. Release the cable (B) from the clamp (A) and disconnect the cable from the connector.

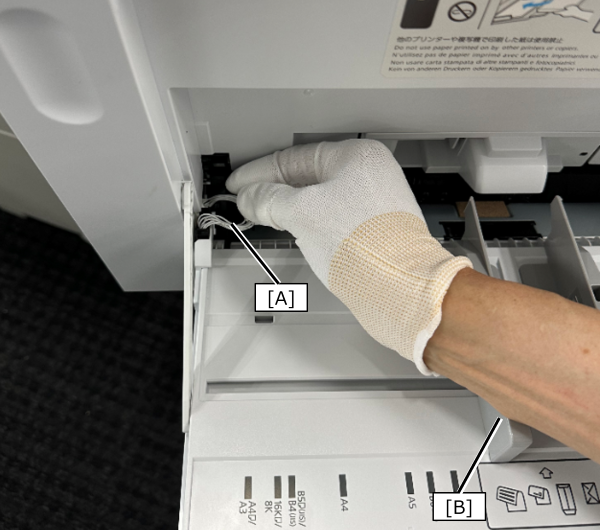

  5. Open the Paper Tray and pull out the cable (A) toward the Paper Tray.

    Check Point / チェックポイント
    • Move the edge guide (B) of the Paper Tray to the center before disconnecting the cable.

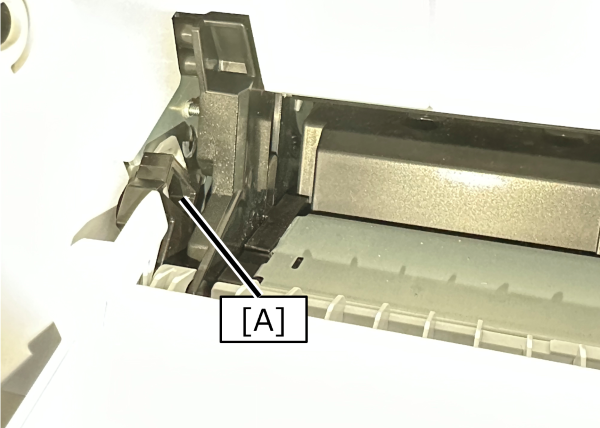

  6. Flex the Paper Tray Link Lever (A) to release the shaft and tab of the Paper Tray Link Lever (A) from the main unit.
  7. Remove the Paper Tray link lever (A) from the Paper tray (B).


    Caution / 注意

    Hold the Paper tray (B) when removing the second Paper Tray link lever.
    The Paper Tray (B) may fall.

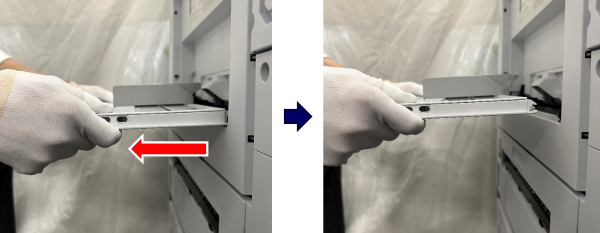

  8. Tilt the Paper Tray Assy horizontally and pull it out from the 2 shafts.


    Assembly / 組み立て
    • When installing the Paper Tray Assy, be careful to ensure that the cables are not pinched and that the black cable holder shown in the figure below is in place.
