306050205 SDL Paper Bundle Lifting HP Sensor

Program No. Menu Name Judgment method Remarks
306050205 SDL Paper Bundle Lifting HP Sensor Execute [306050103 SDL Paper Bundle Lifting Drive Motor] and check. TRUE: Detection
FALSE: No Detection
Default: FALSE

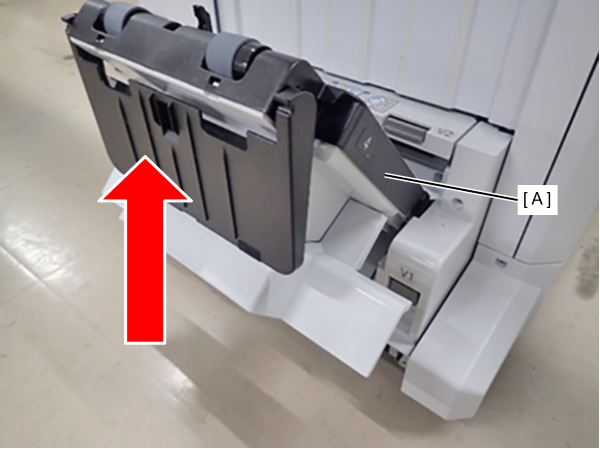

  1. Raise the saddle tray unit (A).

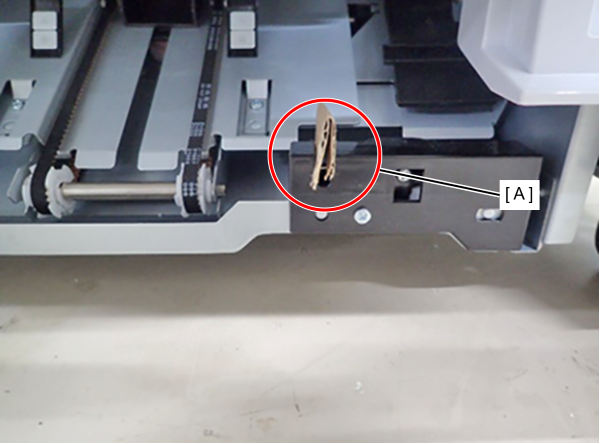

  2. Insert a folded paper into the SDL Tray Sensor section (A) and have the sensor recognize it.

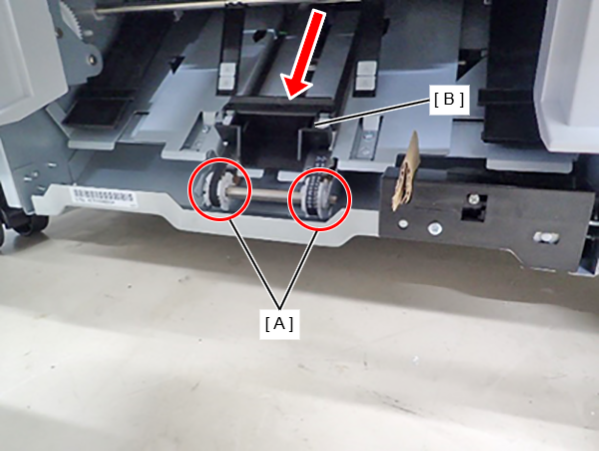

  3. Check the detection status of the sensor while turning the gear (A) and moving the SDL Paper Bundle Lifting plate (B) downward.
