Installation Environment

When installing, confirm that the carry-in route and the installation site are broad enough and strong enough to move and install the product.

Carrying-in space.

The carry-in route must have at least the following width / height.


important / 重要
  • If the installation location or the moving route is easily damaged, protect the floor surface as necessary when moving.
Note / 補足
  • The dimensions of the printer, including optional products, are the maximum dimensions both when packed and when unpacked.

Item

Packed (Printer)

Unpacked (Printer)

External dimensions

Width

724 mm

555 mm

Depth

762 mm

620 mm

Height

1,218 mm

963 mm


Installation space/weight
Note / 補足
  • During installation work, in addition to the occupied dimensions of the product shown below, secure the work space for the operator.

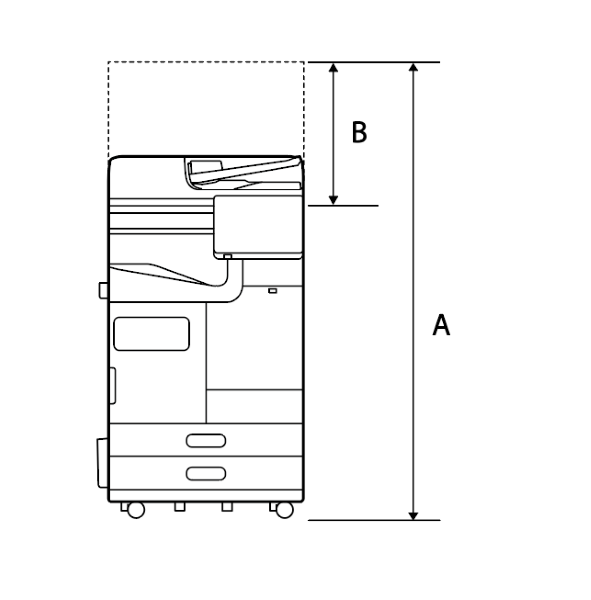

Printer main unit + caster

A 1,417 mm
B 518 mm
Weight About 110.4kg (AM-M5500: About 108.2 kg)

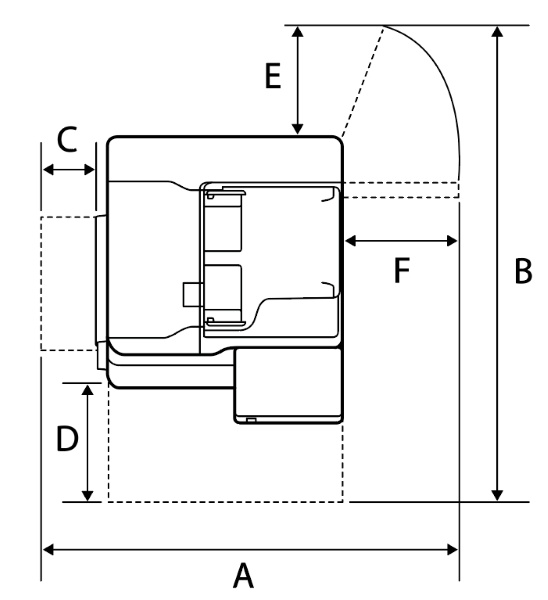

A 1,065 mm
B 1,238 mm
C 70 mm
D 435 mm
E 210 mm
F 441 mm

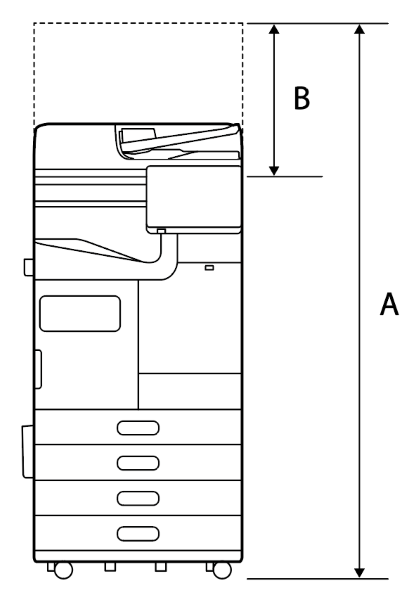

Printer main unit + additional cassette

A 1,588 mm
B 518 mm
Weight About 135.3kg (AM-M5500: About 133.1 kg)
A 1,065 mm
B 1,238 mm
C 70 mm
D 435 mm
E 210 mm
F 441 mm

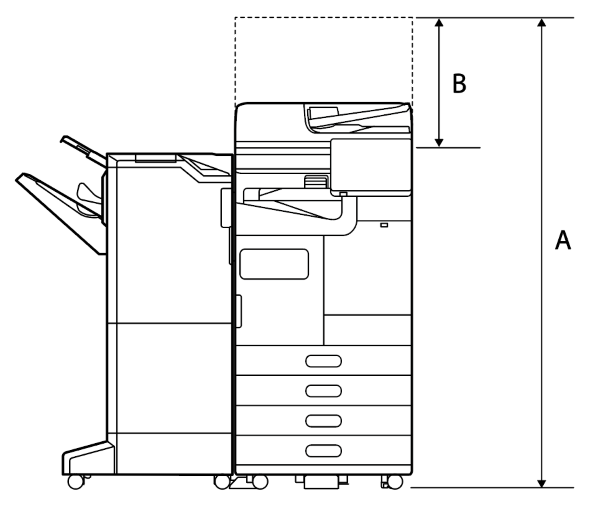

Additional cassette + floor finisher


A 1,588 mm
B 518 mm
Weight About 185.4kg (AM-M5500: About 183.2 kg)

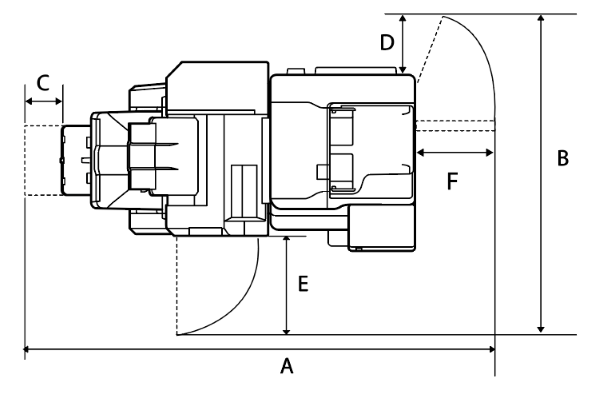

A 1,922 mm
B 1,176 mm
C 118 mm
D 210 mm
E 355 mm
F 441 mm

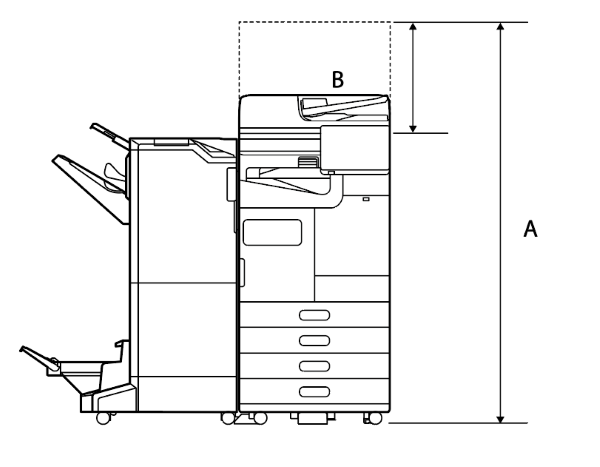

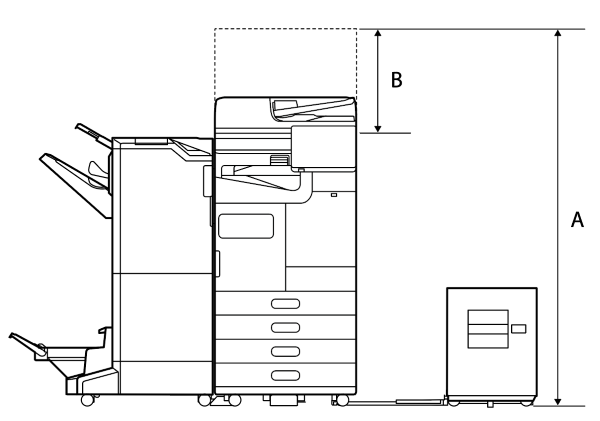

Additional cassette + floor finisher + saddle unit

A 1,588 mm
B 518 mm
Weight About 207.4kg (AM-M5500: About 205.2 kg)

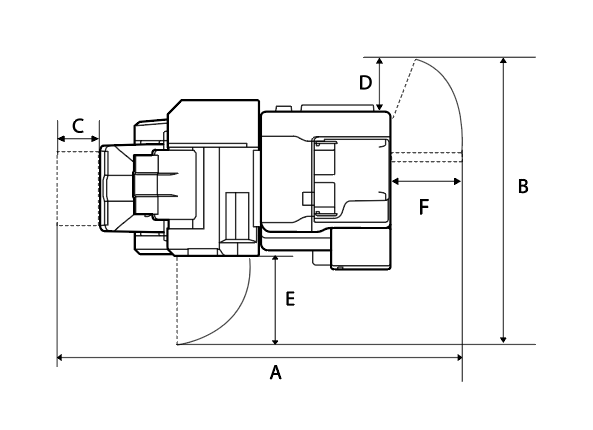

A 1,921 mm
B 1,176 mm
C 117 mm
D 210 mm
E 355 mm
F 441 mm


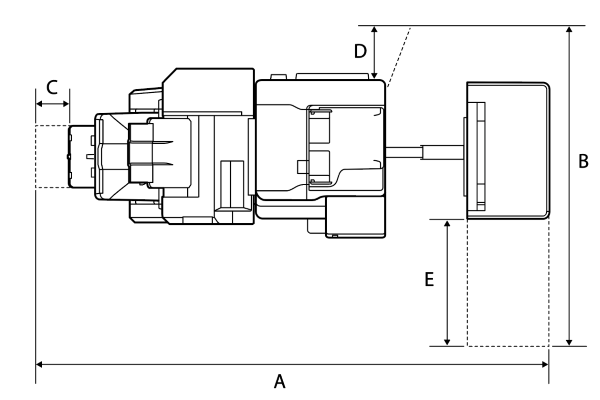

Additional cassette + high-capacity paper feed unit + floor finisher + saddle unit + stabilizer installed.

A 1,588 mm
B 518 mm
Weight About 226.1kg (AM-M5500: About 223.9 kg)

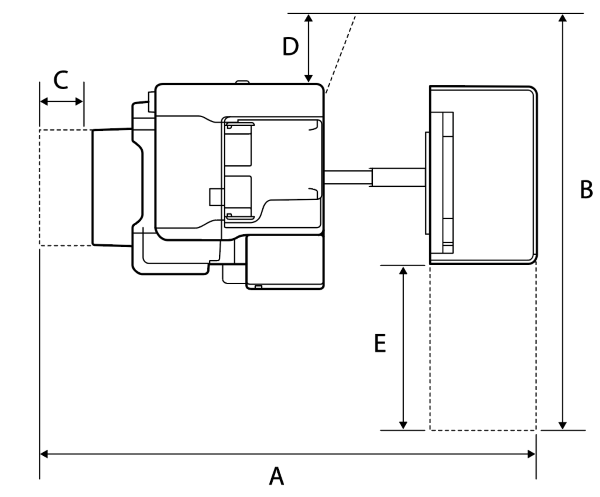

A 2,076 mm
B 1,260 mm
C 110 mm
D 210 mm
E 456 mm

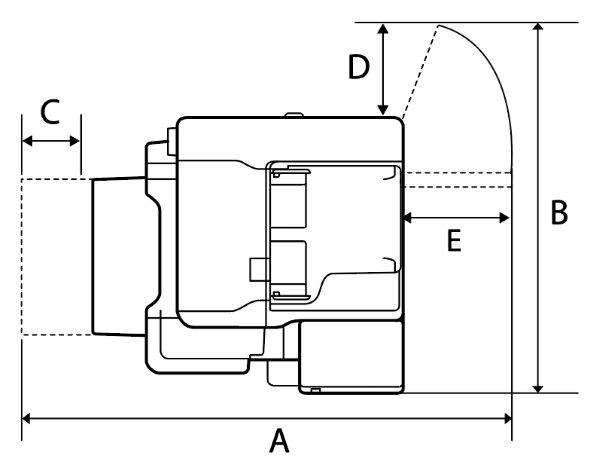

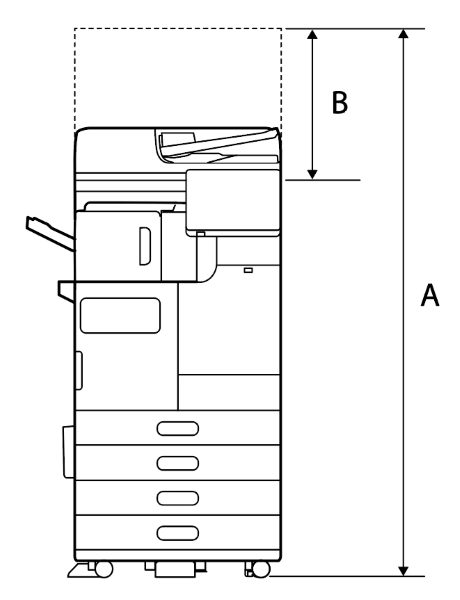

Additional cassette + inner finisher

A 1,588 mm
B 518 mm
Weight About 144.5kg (AM-M5500: About 142.3 kg)

A 1,312 mm
B 1,238 mm
C 110 mm
D 435 mm
E 210 mm
F 441 mm

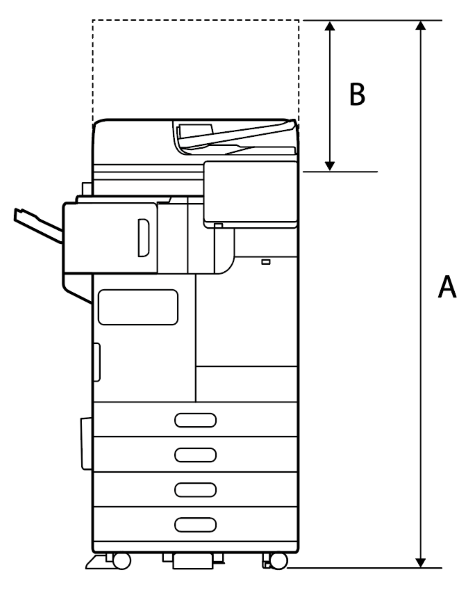

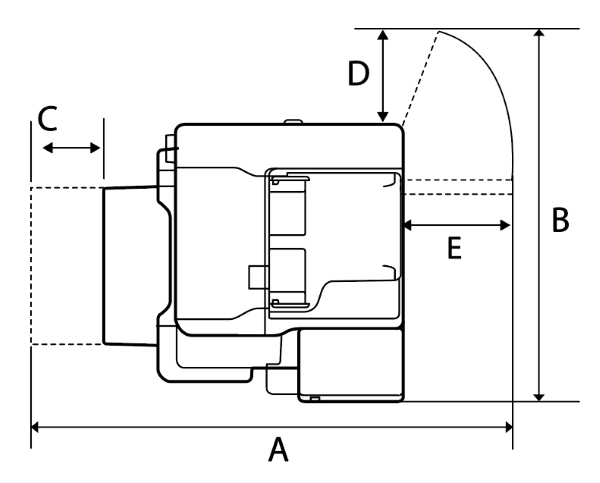

Additional cassette + inner finisher + inner punch

A 1,588 mm
B

518 mm
Weight About 148.3kg (AM-M5500: About 146.1 kg)

A 1,385 mm
B 1,238 mm
C 110 mm
D 435 mm
E 210 mm
F 441 mm

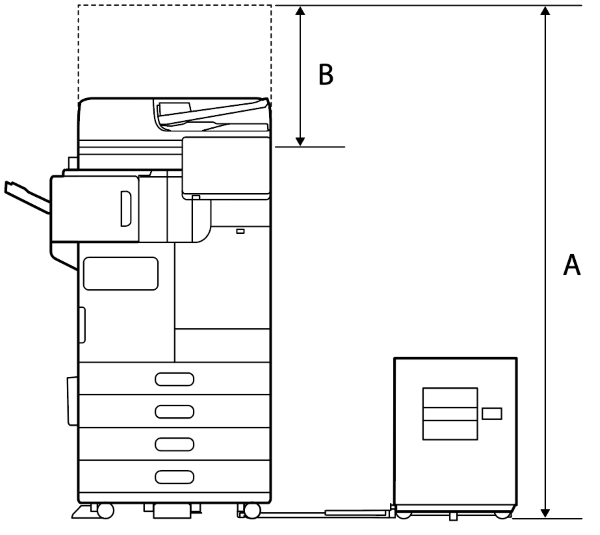

Additional cassette + high-capacity paper feed unit + inner finisher + inner punch + stabilizer installed.

A 1,588 mm
B 518 mm
Weight About 172.3kg (AM-M5500: About 170.1 kg)

A 1,665 mm
B 1,260 mm
C 110 mm
D 210 mm
E 456 mm
Installation environment

It may not be possible to maintain the operation quality of the product depending on ambient environmental conditions such as outside air. Therefore it is recommended that the product be used within the operating temperature and humidity ranges described below.

Location to avoid the installation

  • Location subjected to direct sunlight such as near a window
  • Location subjected to vibrations frequently
  • Location subjected to a sudden change in temperature and/or humidity
  • Location subjected to cold or hot air directly from an air conditioning or other device
  • Closed environment with bad breathability, bad ventilation
Product

Items

Operation guarantee

Print quality guarantee

Feeding paper reliability guarantee

temperature

5 to 40 °C

10 to 35 °C

18 to 28 °C

Humidity

15 to 80 % (non-condensing)

35 to 70 %

Items

Operation possible

Installation posture

Within +/- 3°.
important / 重要
  • A fatal error (034871) occurs when the main unit is tilted by +/- 3 degrees or more.
  • The AM-M5500 does not have a Inclination Sensor, so even if the main unit is tilted by ±3° or more, a fatal error (034871) will not occur.
    However, just like the LM-C6000/C5000/C4000, there is a risk of ink leakage, so if necessary, check the main unit using a dedicated inclinometer (ASP).
    Note that a dedicated inclinometer is not included in the main unit.
  • Even if the installation inclination is within +/- 3 degrees at the time of installation, the installation inclination may change over time depending on the material of the installation floor (product sinking occurrence, etc.). For this reason, it is recommended to install in an environment where the installation orientation is as close to 0° as possible.


Ink cartridge

Items

Operation guarantee

Package storage reliability

Reliability when installing the Main Unit

Reliability during packing transportation

temperature

5 to 40 °C

-30 to 40 °C

-20 to 40 °C

-30 to 60 °C

Humidity

15 0 - 80 % (non-condensing)

15 - 85 % (non-condensing)
Power Supply

Rated voltage

AC 100-240 V

Rated current

4.0-2.0 A

Rated frequency

50/60 Hz
Power consumption (when connected to wired LAN) Model AM-C6000 AM-C5000 AM-C4000 AM-M5500
When copying (ISO/IEC24712 print pattern)


 about 110 W about 115 W about 115 W about 96 W
When ready about 46 W about 46 W about 46 W about 46 W
When sleep mode about 0.9 W about 0.9 W about 0.9 W about 0.8 W
When turn off about 0.1 W about 0.1 W about 0.1 W about 0.1 W
Maximum Power Consumption about 190 W about 190 W about 190 W about 185 W



Notes on the floor condition when installing the High Capacity Unit

Depending on the condition of the floor material (such as floor material with a high cushioning property), the Main Unit may sink, and the positional relationship between the paper paths of the High Capacity Unit and the Main Unit may be out of the specification. It may cause paper feeding failure as side registration misalignment and paper jams.
Confirm the condition of the floor before installation, and the positional relationship between the paper paths of the High Capacity Unit and the Main Unit after installation.

Floor condition
  • The floor should be horizontal and flat
  • If there is the carpet at the install location, the length of the bristle feet should be within 4mm (regardless of fiber hardness or density)

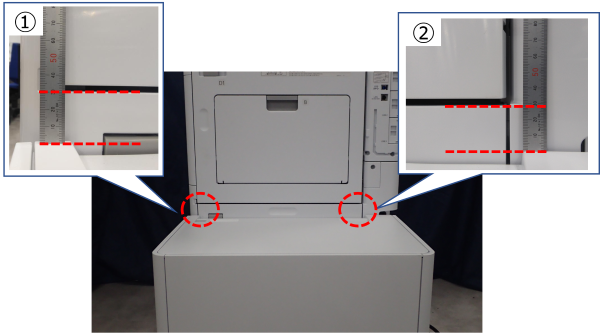

The height and horizontal specification between the High Capacity Unit and the Main Unit

Horizontality of front side ① and rear side ②: ①-② = within ±1mm

Note / 補足
  • Even if it is ±1 mm or more, there is no problem if the amount of margin is appropriate by adjusting the side registration after installing the High capacity paper feed unit.
    If the margin amount cannot be adjusted appropriately, attach the spacer plate for the High capacity paper feed unit and change the height of the casters. (Procedure for changing the height of the high capacity unit)
