PF Paper Feed Clutch

  1. Remove the 4 screw.


    • : 4x10DC/P
  2. Remove the Back Cover while pulling out the cable from the hole in the Back Cover.



    important / 重要

    • Do not remove the Lift Wire parts except when there is trouble.
    • The wires for lifting up are holding the front and back of the lift cassette horizontal so you need to perform horizontal adjustment if they are removed.

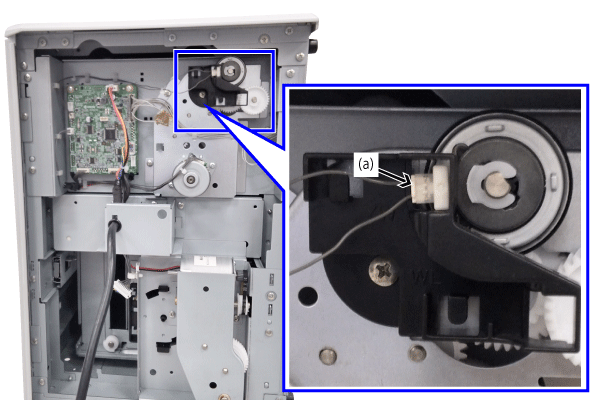

  3. Release the connector [a].

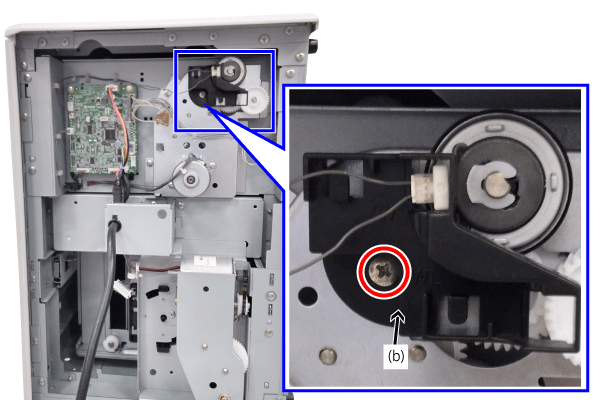

  4. Remove 1 screw and remove the PF Paper Feed Clutch Cover [b].
    • : 3x8M/P

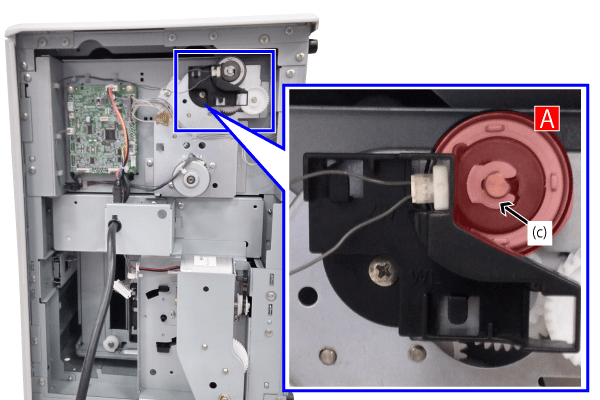

  5. Remove the E-ring [c] and remove the PF Paper Feed Clutch [A].
