Spring, Right Door, 23mm

  1. Pull the lever to open the Right Door Unit (A).
  2. Remove 7 screws and remove the Paper Path Right Door Upper (A).

    • : 3x8D/P

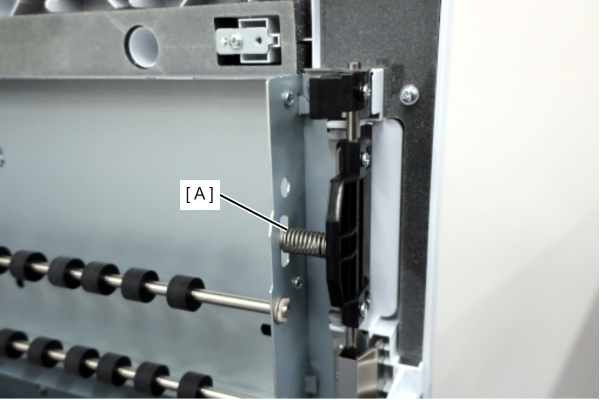

  3. Remove the Spring, Right Door, 23mm (A).
